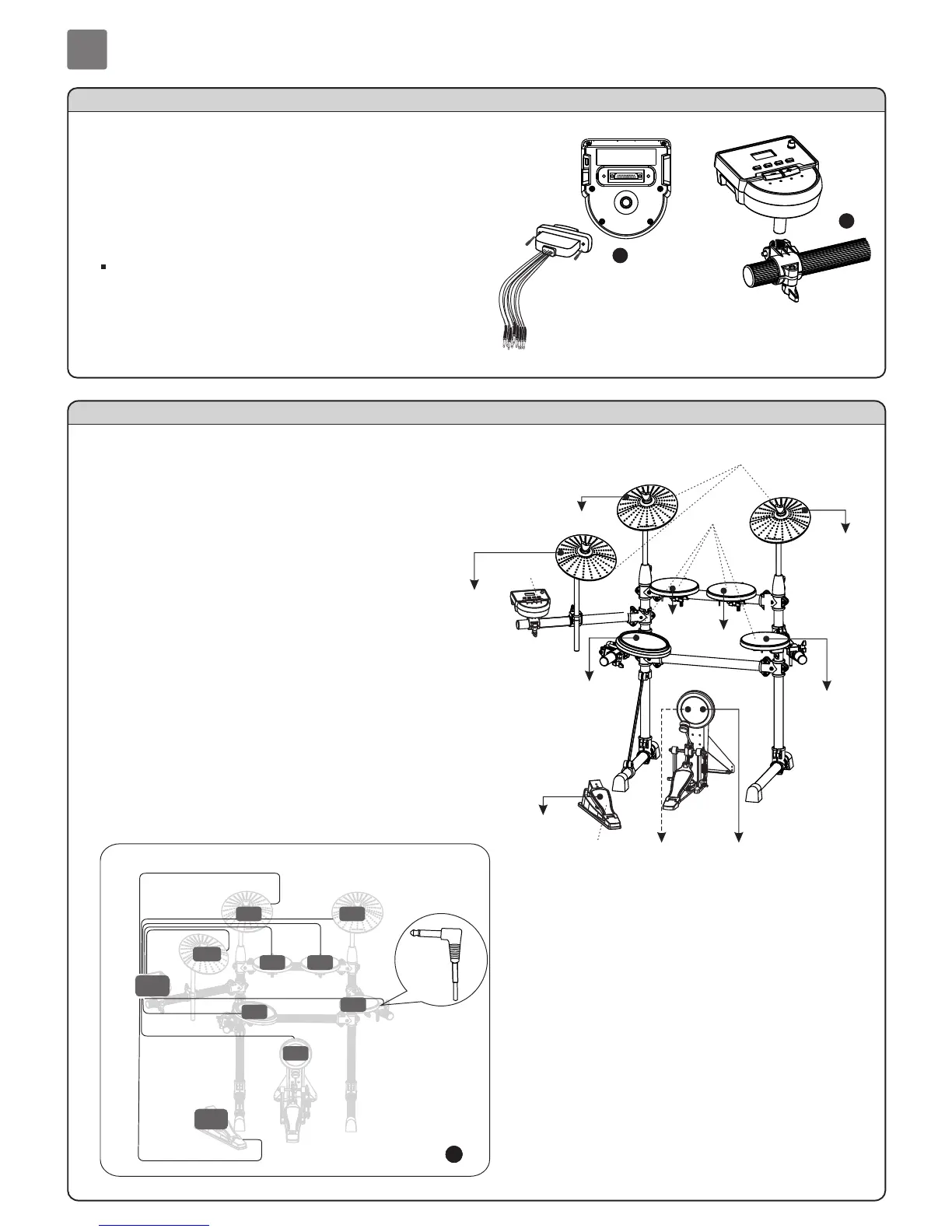

Attach the Drum Module
1
2
1. Connect the cable to the drum module as shown with
hands crews.
2. Attach the drum module to the mount holders on Side
Arm (L1), and firmly tighten the relevant wing nut.
Note:
Adjust the drum module position by moving the mount
holders as needed, and firmly tighten the relevant wing
nut.
Connection Procedure
1. Place the kick on the floor in the center of the rack as
shown.
2. Place the hi-hat pedal on the floor on your left side.
3. Connect the pads to the drum module with the marked
cables.
Are you ready? Let's enjoy playing it.
3
Connect the Pads to the Drum Module
3
Hi-Hat
Drum
Module
Ride
Kick
Hi-Hat
Pedal
Make connections as shown in the illustration.
Tom 3
3
Crash
Tom2Tom1
Snare
Tom3
Drum Module
Drum Pad
Cymbal Pad
PedalHi-Hat
To
control
Hi-Hat
To Kick
Tom 2To
Tom 3To
SnareTo
Tom 1To
Kick Pad
Hi-HatTo
To Crash
RideTo
