Create a User Drum Kit
Voice indicator
Pad indicator
Pad buttons
Set a Drum Voice
The unit comes with 335 high quality percussion sounds that youcan
assign to any of the drum pad, 3 cymbals, hi-hat control andbass drum.
This way you can create your own drum kit thatconsists of the voice
you want. The kit number 025-035 is use for saving your own drum kit.

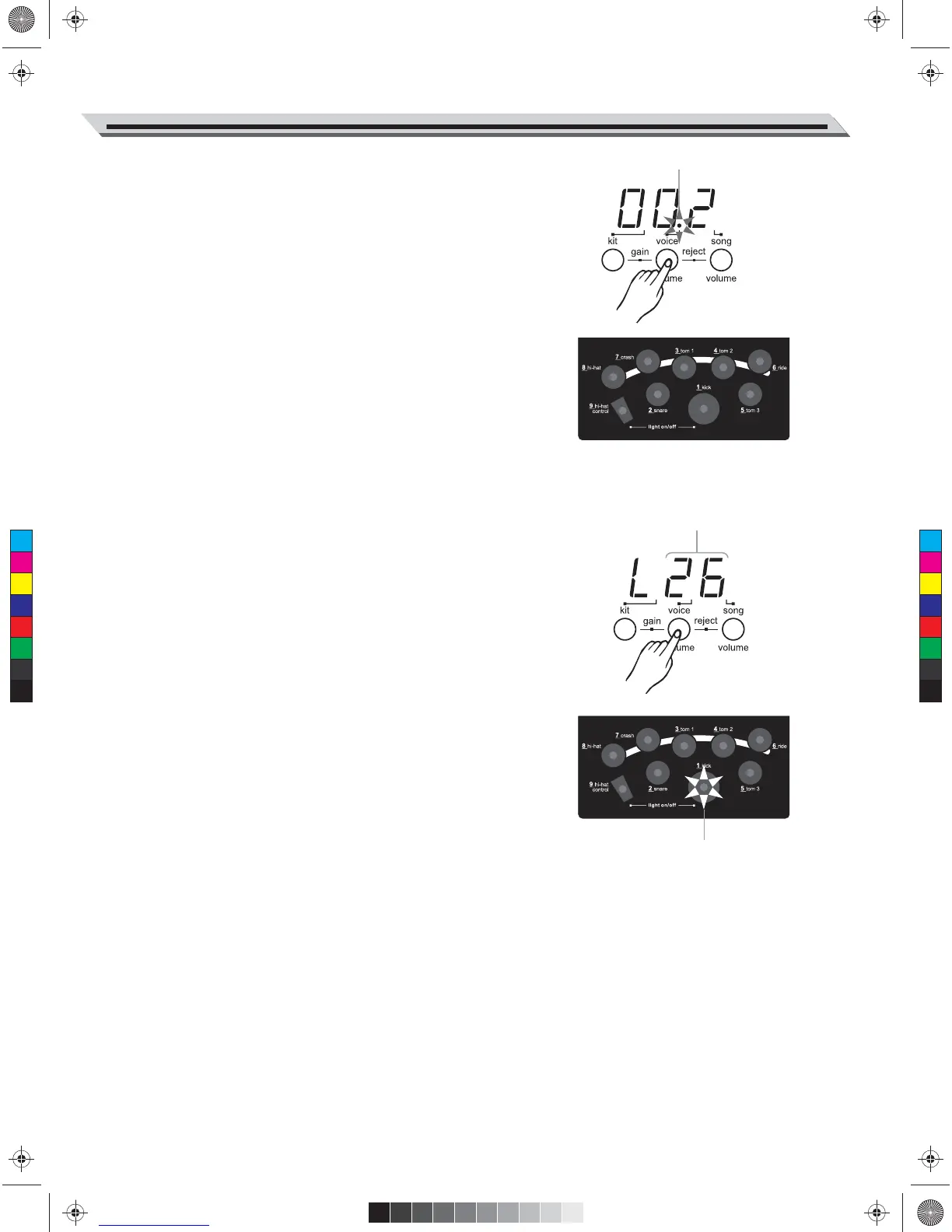

1. Press [ voice ] button.
The voice indicator lights and the display shows the voice number of
this pad.
2. Press [ pad ] button or hit the pad you want to set.
The pad indicator light and display shows the current voice number
of lighting pad.
3. Press [ + ] or [ - ] buttons to select the voice number you want to
assign.
4. Repeat step 2 and 3 for to set the voice for another pad or bass
drum.
Note:
Select the snare rim only through hitting the pad.
Adjust the Volume of Pad
This unit allows you to adjust the volume of every voices inthe kit that
let you control the individual level (volume) ofthe pads or bass drum.
1. Press the [ voice / volume ] button to select the volume level setting
display shows : " L XX".
(XX = level value, 00 to 31)
The pad button indicator lights and display shows the current
volume level of lighting pad.
2. Press the [ PAD ] button or kit the percussion pad you want to
adjust.
3. Press the [ + ] or [ - ] buttons to increase or decrease the volume.
While you are adjusting, hit the corresponding pad and listen
carefully the sound level until reaching the level you want.
4. Repeat step 2 and 3 to adjust the volume of other pad voices.
Adjust the Song Number of Pad Pattern
Function
The unit allows you to adjust the song number of pad pattern function in
the kit that let you set the number of playing song when hitting the
crash pad.
1. Press the [voice/volume] button to select the pad pattern setting
display shows “OFF” or S XX”.
(XX = level value, 1 to 60, OFF means closing this function and other
option means setting the corresponding song number)
2. Press the [+] or [-] buttons to increase or decrease the song number.
While you are adjusting, hit the crash pad and listen the song until
reaching the you want song. Hit again, stop the song.
