REPROCESSING SYSTEMS

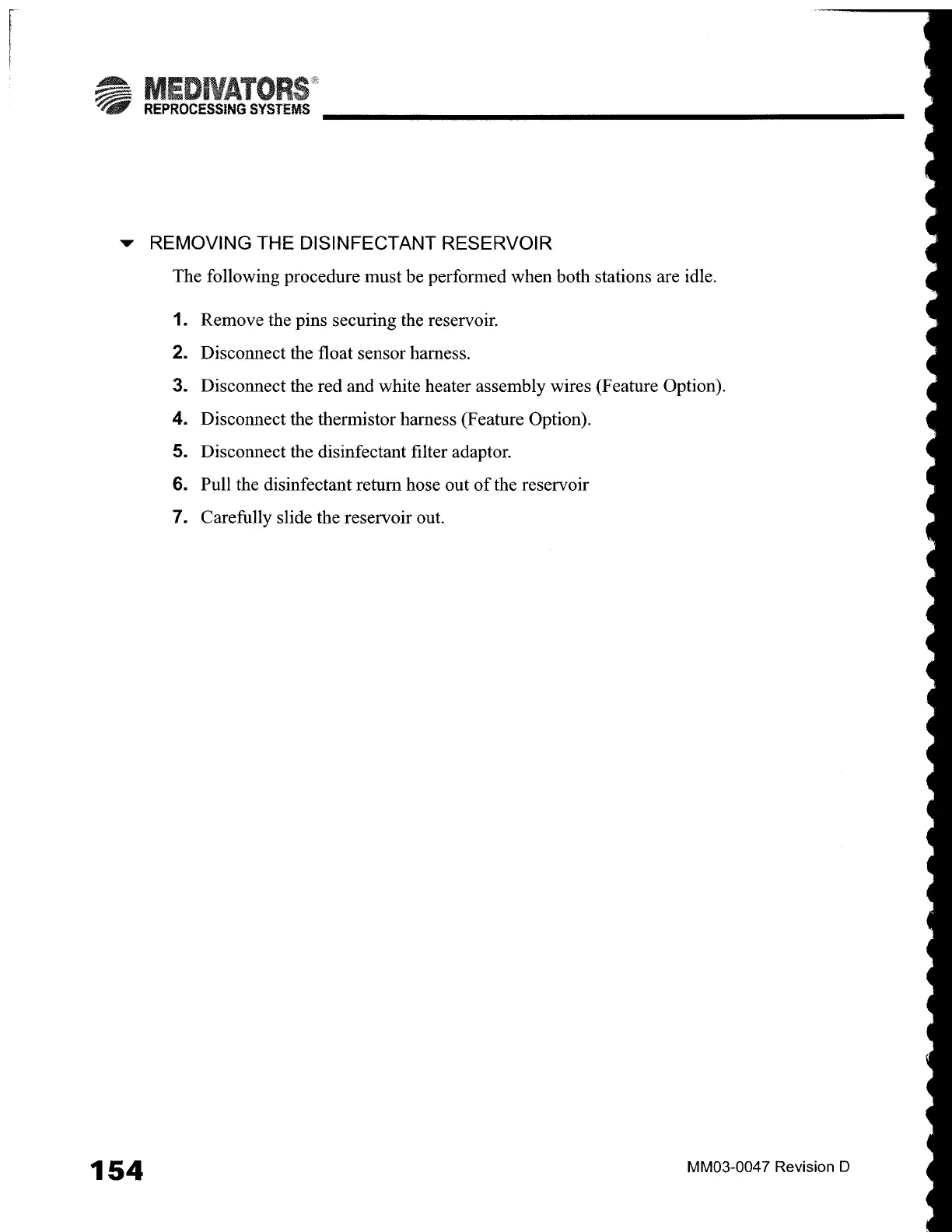

REMOVING THE DISINFECTANT RESERVOIR
The following procedure must be performed when both stations are idle.
Remove the pins securing the reservoir.
Disconnect the float sensor harness.
Disconnect the red and white heater assembly wires (Feature Option).
Disconnect the thermistor harness (Feature Option).
Disconnect the disinfectant filter adaptor.
Pull the disinfectant return hose out of the reservoir
NB
ARS
Na
Carefully slide the reservoir out.
MM03-0047 Revision D
