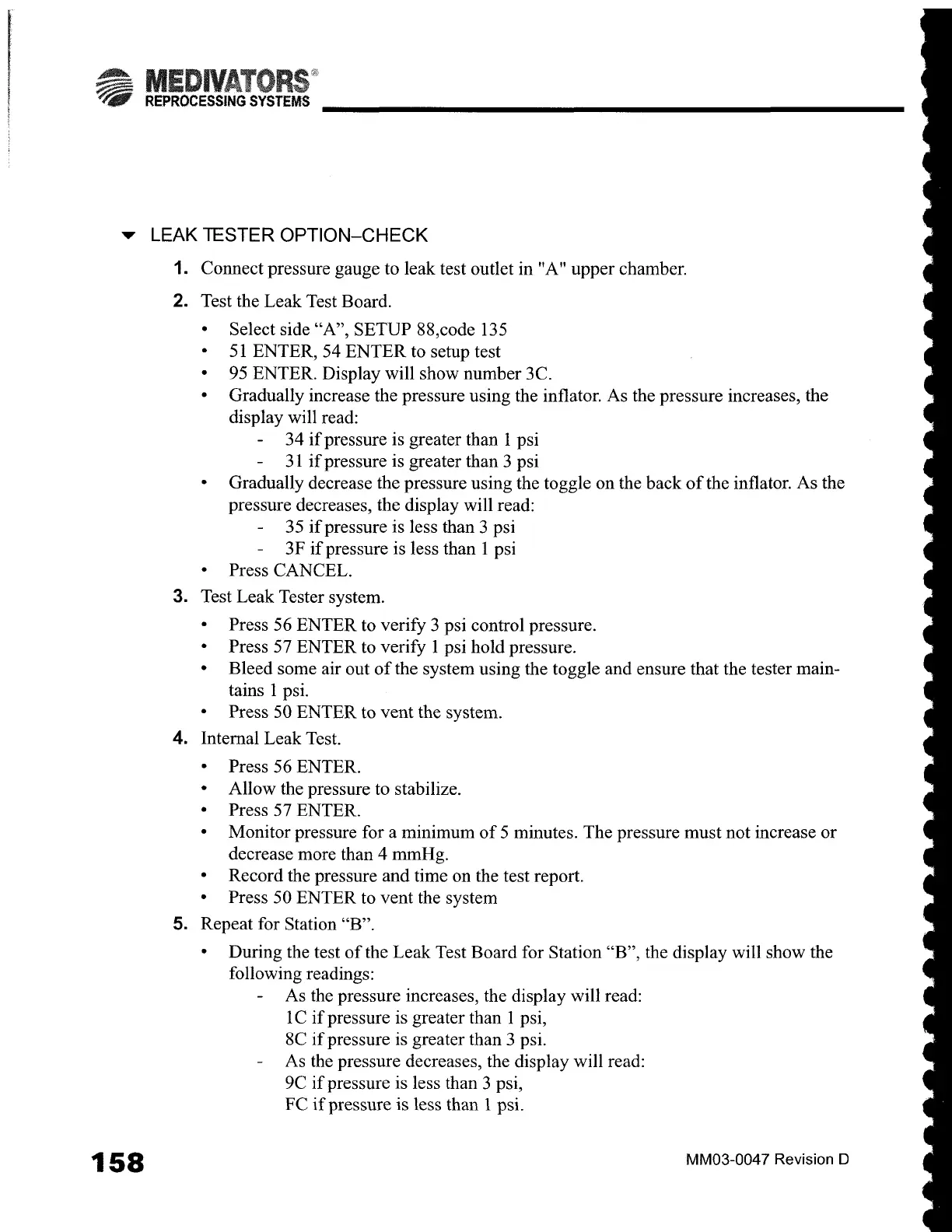

w LEAK TESTER OPTION-CHECK
158
1.
2.
Connect pressure gauge to leak test outlet in "A" upper chamber.
Test the Leak Test Board.
Select side “A”, SETUP 88,code 135
51 ENTER, 54 ENTER to setup test
95 ENTER. Display will show number 3C.
Gradually increase the pressure using the inflator. As the pressure increases, the
display will read:
- 34 if pressure is greater than 1 psi
- 31 if pressure is greater than 3 psi
Gradually decrease the pressure using the toggle on the back of the inflator. As the
pressure decreases, the display will read:
- 35 if pressure is less than 3 psi
- 3F if pressure is less than 1 psi
Press CANCEL.
. Test Leak Tester system.
Press 56 ENTER to verify 3 psi control pressure.
Press 57 ENTER to verify 1 psi hold pressure.
Bleed some air out of the system using the toggle and ensure that the tester main-
tains 1 psi.
Press 50 ENTER to vent the system.
Internal Leak Test.
Press 56 ENTER.
Allow the pressure to stabilize.
Press 57 ENTER.
Monitor pressure for a minimum of 5 minutes. The pressure must not increase or
decrease more than 4 mmHg.
Record the pressure and time on the test report.
Press 50 ENTER to vent the system
Repeat for Station “B".
During the test of the Leak Test Board for Station “B”, the display will show the
following readings:
- As the pressure increases, the display will read:
1C if pressure is greater than 1 psi,
8C if pressure is greater than 3 psi.
- As the pressure decreases, the display will read:
9C if pressure is less than 3 psi,
FC if pressure is less than 1 psi.
MM03-0047 Revision D
