Replacement of the SSG Reservoir O-ring
The use of PPE is important throughout the PM, however, for the following sections involving the SSG unit, it is
imperative to wear the appropriate PPE, including eye protection.
Parts Required Part number QTY
O-rings 43100-302 28
Rubber Check Valve ball 47049-658 4
O-ring Removal Tool 47049-687 1
Springs 47049-415 4
Tools Required
 #1 Phillips screwdriver
 Small flat blade screwdriver
Hydraulic
 Disconnect the four hose quick connects (each holds a group of three hoses). Have a rag ready to capture any
liquid remaining in the tubing at the connectors.

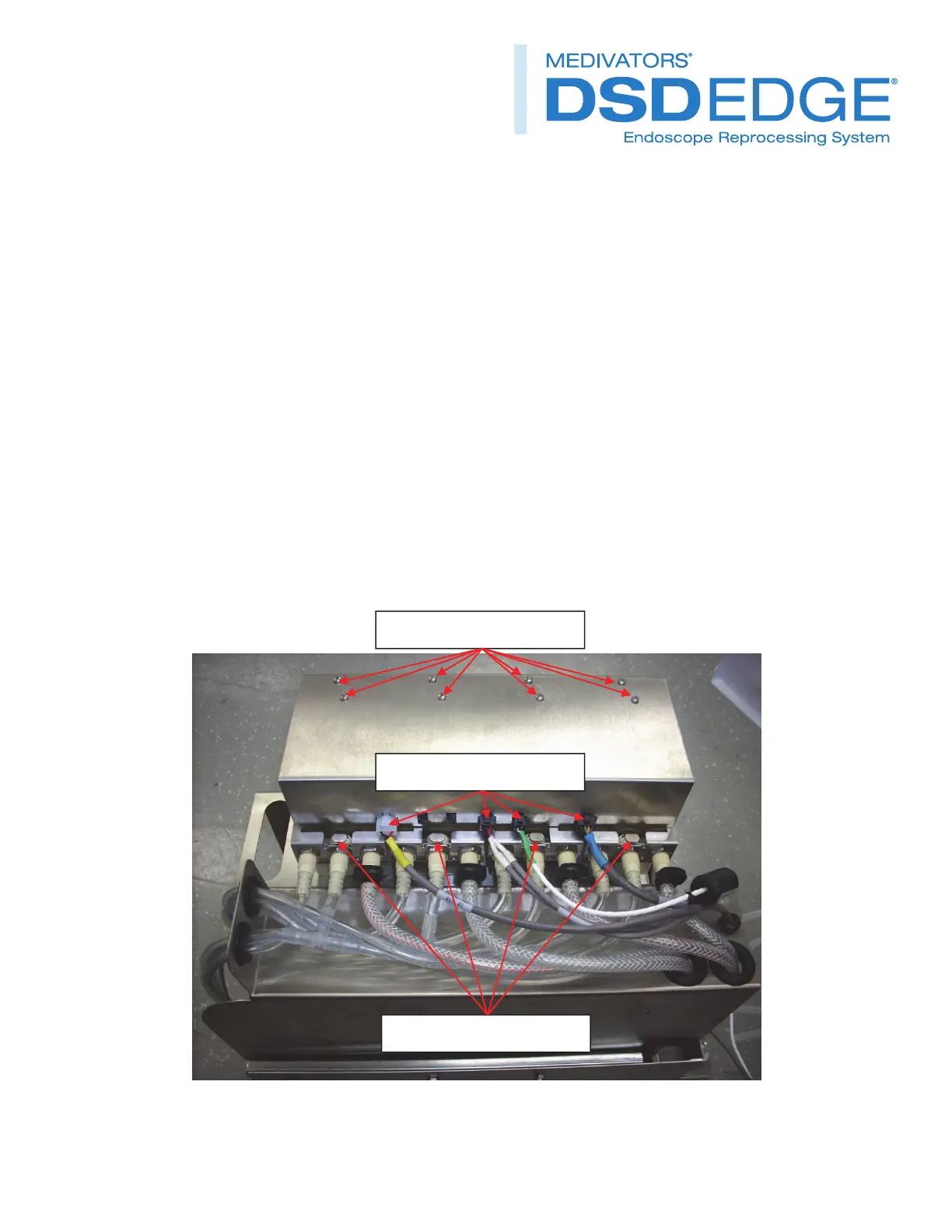

Figure 21
HoseQuickdisconnects
Electricalconnections
Eightcoverscrews
