Medivators DSD EDGE - Alcohol & Detergent Valve Seal Replacement; Replacement Procedure


29 
A
NNUAL PM INSTRUCTIONS
PREVENTATIVE MAINTENANCE KIT

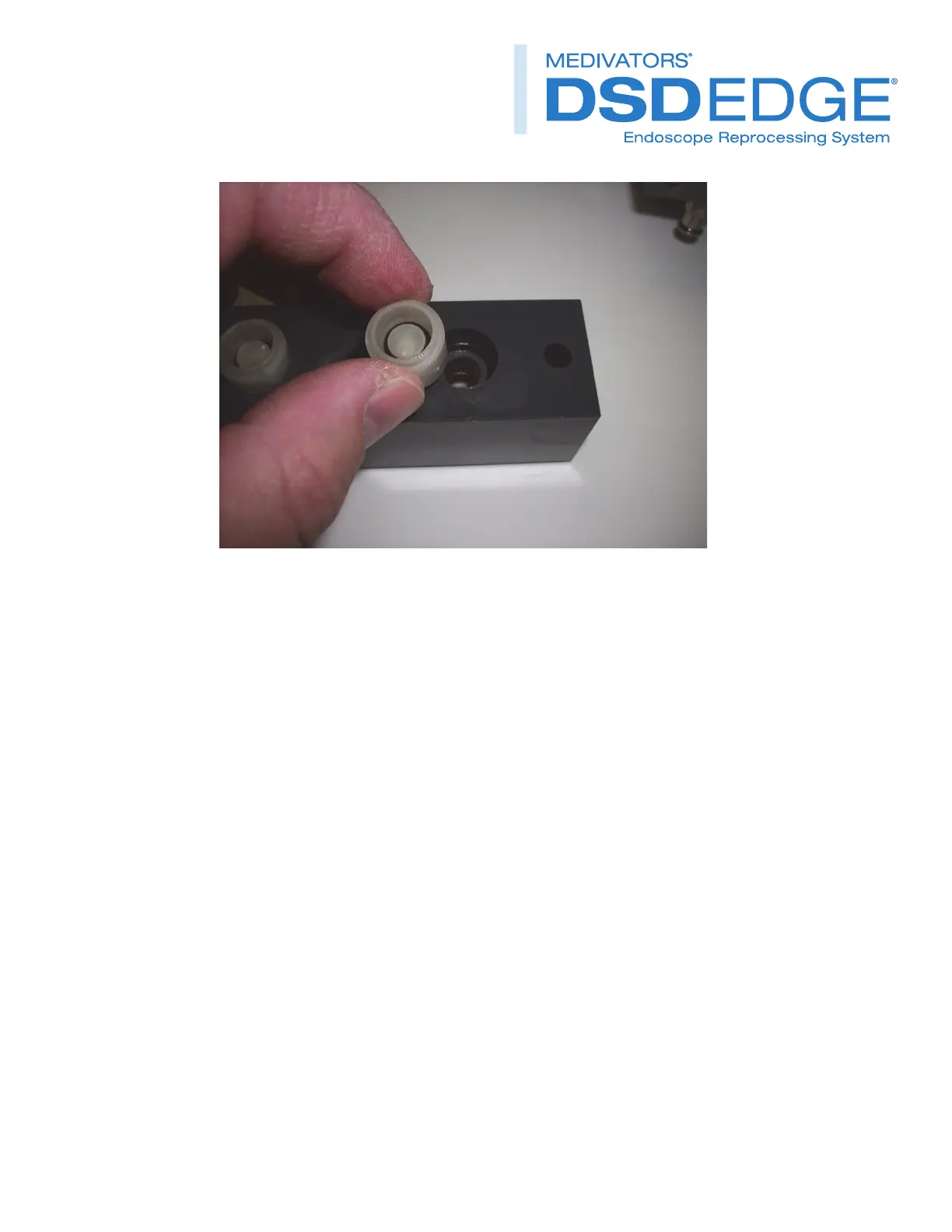

Figure 37
 Insert the new O-rings into check valve retaining hole and the hole on the main manifold. Coating the O-ring with a
small amount of silicone grease will allow the check valve to ease into the block easier.
 Insert the check valves into the check valve block, verifying the proper direction. Attach to the main manifold. Insert
the four check valve block retaining screws and tighten the four screws in a uniform manner. Refer to figure 37.
 Repeat the procedure for both main module and the “B” station water & disinfectant manifold.
Alcohol and Detergent Valve Seal Replacement
Parts Required Part number Qty
Valve Seal MV01-0035 4
Tools
 Small Philips head screwdriver
 Adjustable wrench
Procedure
 Remove the large nut on top of the alcohol and detergent valves. Before removing the coil, make note of the
position of the coil. Remove the coil by pulling up. Refer to Figure 38.
 Remove the four Phillip head screws from the valve and lift the valve off the manifold. Refer to figure 39.
 Pull the old valve seal off the plunger of the valve. Obtain a new valve MV01-0035 and press back onto the valve.
Refer to figure 40.
 Note: Each alcohol and detergent valve has a red lever on one side. Do not rotate the lever; this will cause the
valve to stay permanently open.
 Reattach the valve body and attach the coil and coil retaining screws.
