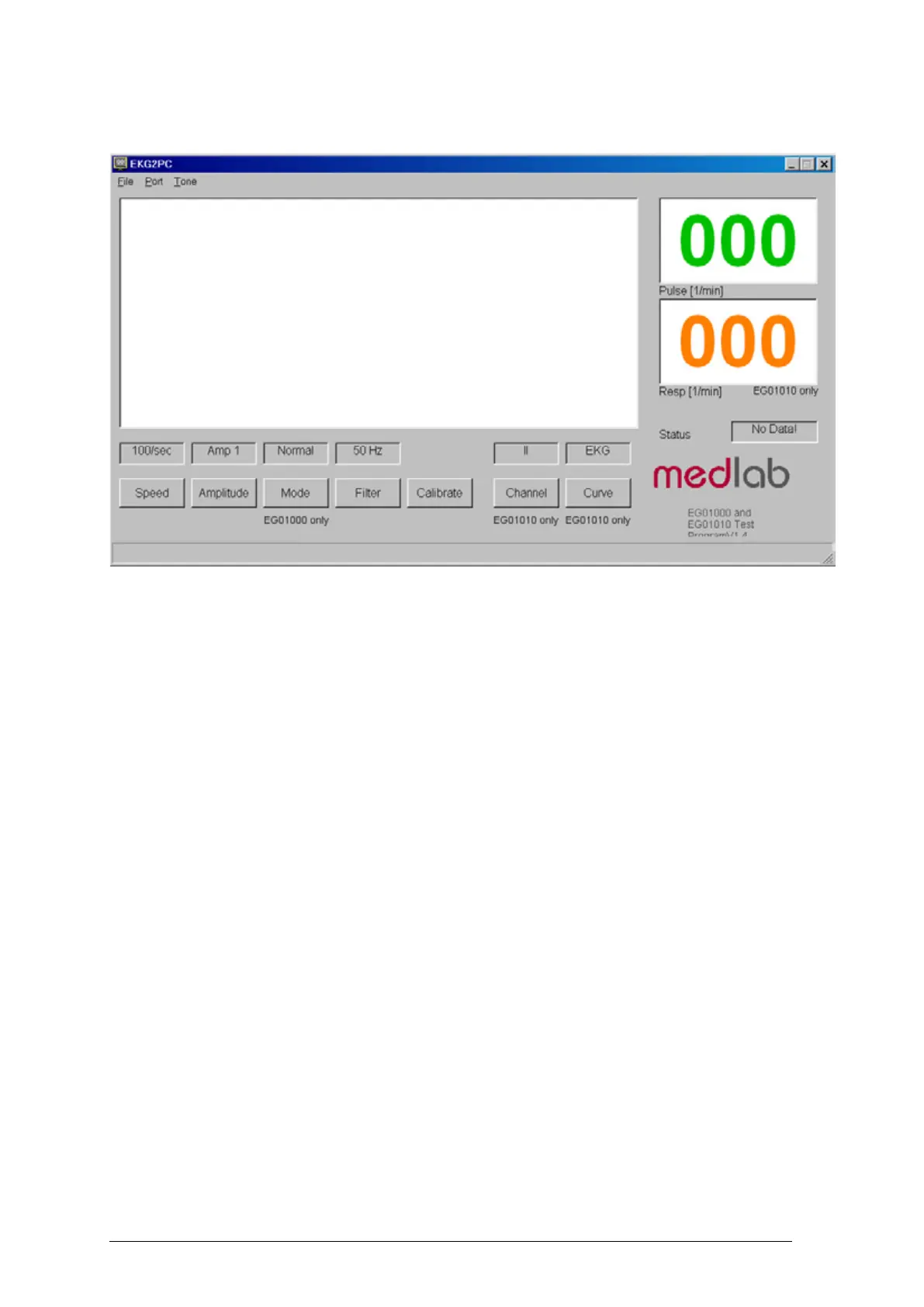

Test Program for Protocol 1
For easy integration of the module into medical systems, a test software has been made available. The
EG01010 can be connected directly to a PC, the received data is shown on the screen.
To run the program, connect the EG01010 board to the serial port of a PC. If the PC has no serial port,
please use a USB to RS232 adapter and install the driver of this adapter first and make sure to create a
virtual serial port. Connect the power input to a 5 volts DC source. Then start the program on your PC and
select the serial port number in the "Port" menu.
Commands can be sent to the board by pressing the command buttons in the application. Since the same
software can be used for the one channel EG01000 and the three channel EG01010 board, some buttons
have no function when used with the EG01010.
The software is available free of charge on: www.medlab.eu, on the page describing the EG01010. The
software is available in a Visual Basic 6 and a Visual C# version.
The source code of the chosen test program is also included in the download package.
