Warning
Proper operation of this product is necessary to avoid physical harm. Improper use
can cause personal injury and/or tissue damage. This product should not be used
unless the operator has been instructed by a physician or other qualified health
care professional.
1. Familiarize yourself with this unit.
2. Place unit on table and push down hard so that suction feet hold unit firmly in
place.
3. Before plugging power cord into electrical outlet, check if the ON/OFF switch is
in the “O” OFF position.
Note
Before attempting to start a cold unit, let the unit reach room temperature in a
heated area.
4. Introduction
Your VAC-ASSIST Suction Unit is a professional medical suctioning device that
produces a maximum vacuum of 560 mmHg. The unit is equipped with an 800 ml
collection bottle and has been designed for convenient and reliable usages.
Features:
• New hydrophobic filter design helps contamination.
• High quality vacuum regulator and anti-vibration vacuum gauge setting.
• Oil-less, permanent lubrication.
• Collection bottle with overflow protection.
• Superior performance and high reliability for continuous operation design.
• Easy carry and easy cleaning.
Following the recommended operating and maintenance procedures outlined in
this user’s manual will maximize the life of this product. Refer to the diagrams on
page 6.

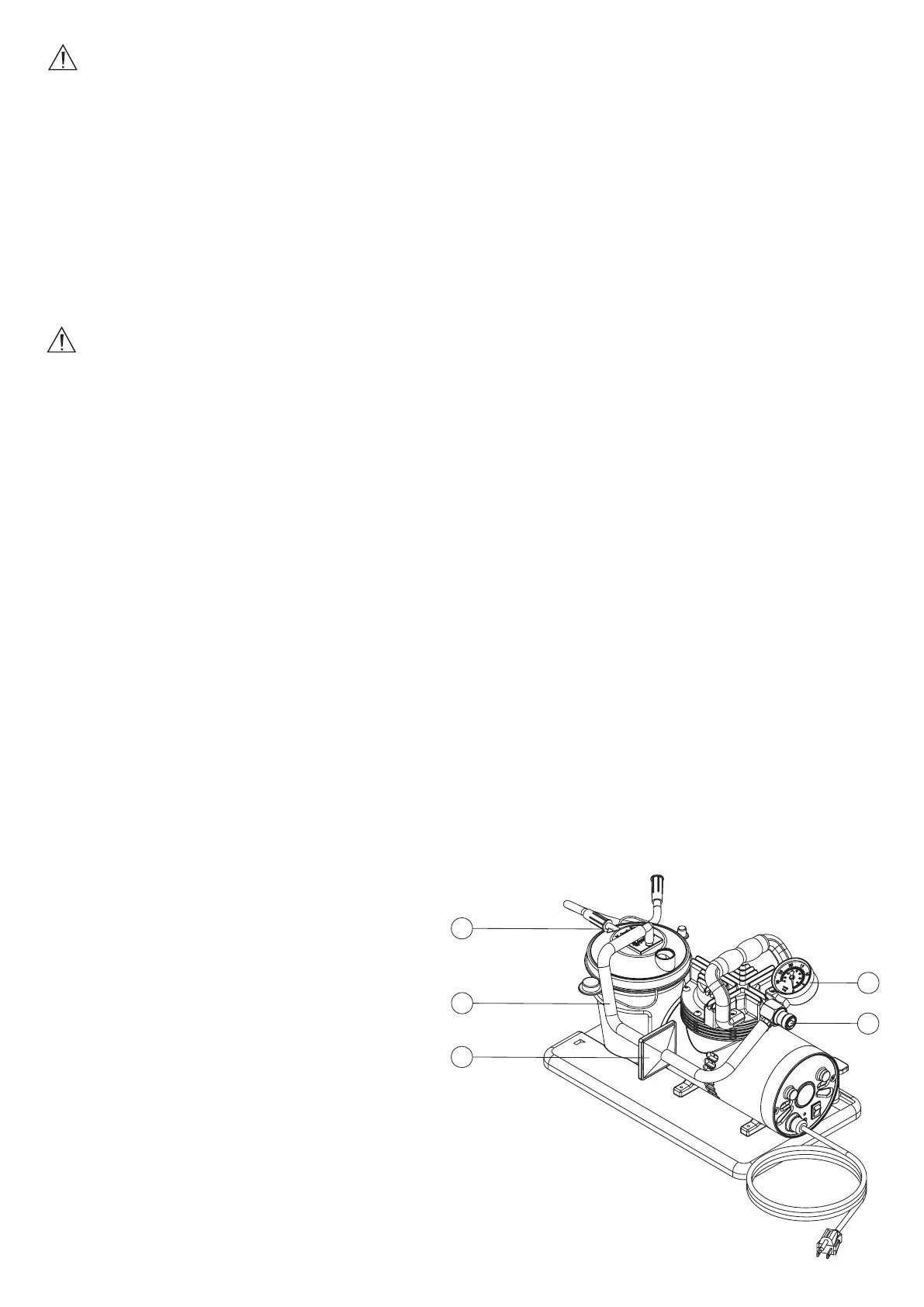

5. Illustration of Important Parts
1. Vacuum Adjust Knob
2. Vacuum Gauge
3. Hydrophobic Filter
4. Connection Tubing
5. Patient Tubing Connector
6. Patient Tubing
7. 800cc Collection Bottle
8. Holder
9. Base
10. Cord Fixed Support
11. Power Switch
12. Power Cord
13. Fuse
1
2
4
5
3
Figure 1
To Next Page
