Setting up the Reference &
Coupler Mic
The Reference Microphone (blue) is pre-installed at the factory.

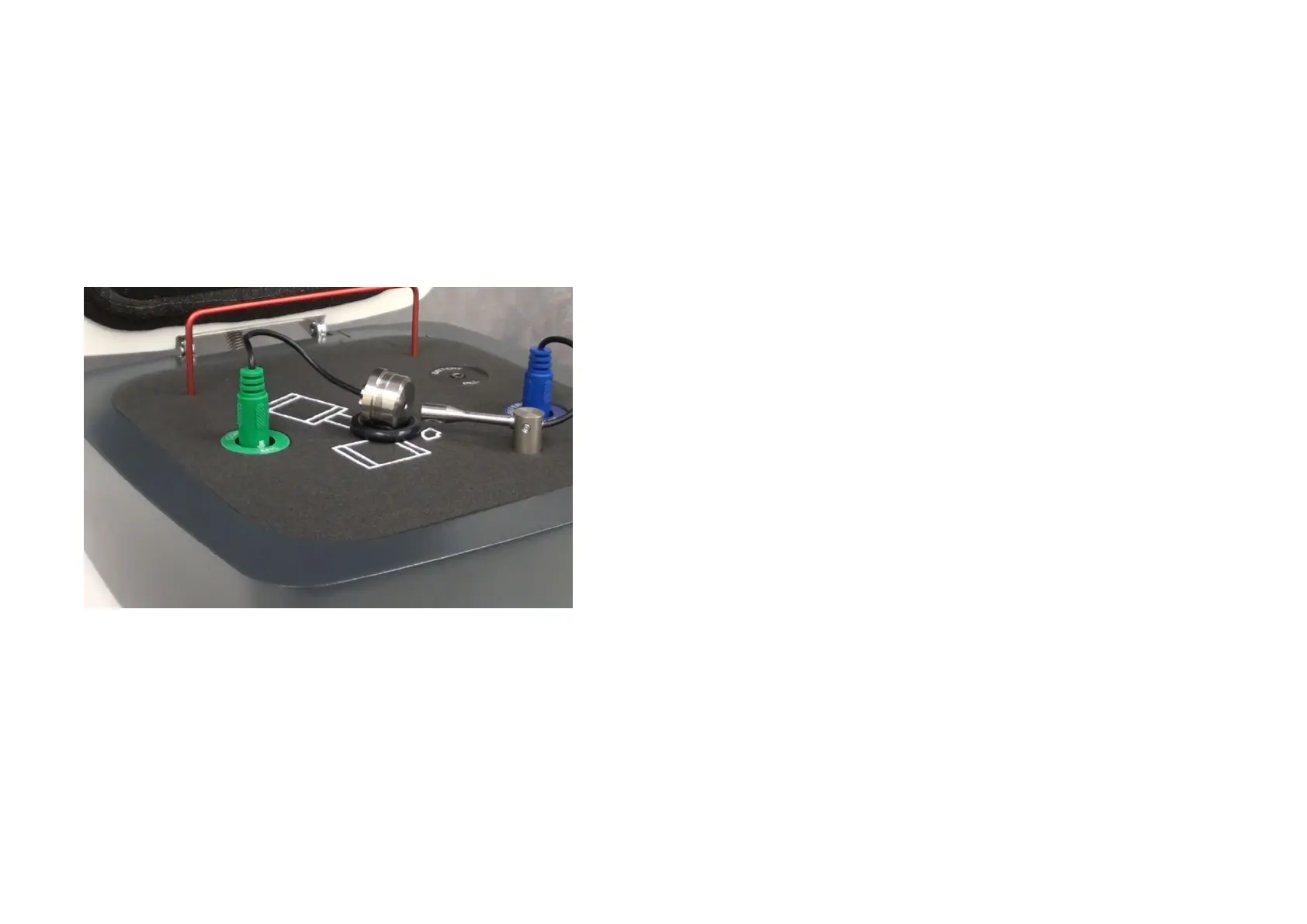

Carefully install the Coupler Microphone (green) as shown. Take care when
handling these components as they are delicate precision calibrated
instruments.
The Coupler Microphone plug is “keyed”. The arrowhead molded into the
green plug must face the front of the Avant HIT+ when installed.
