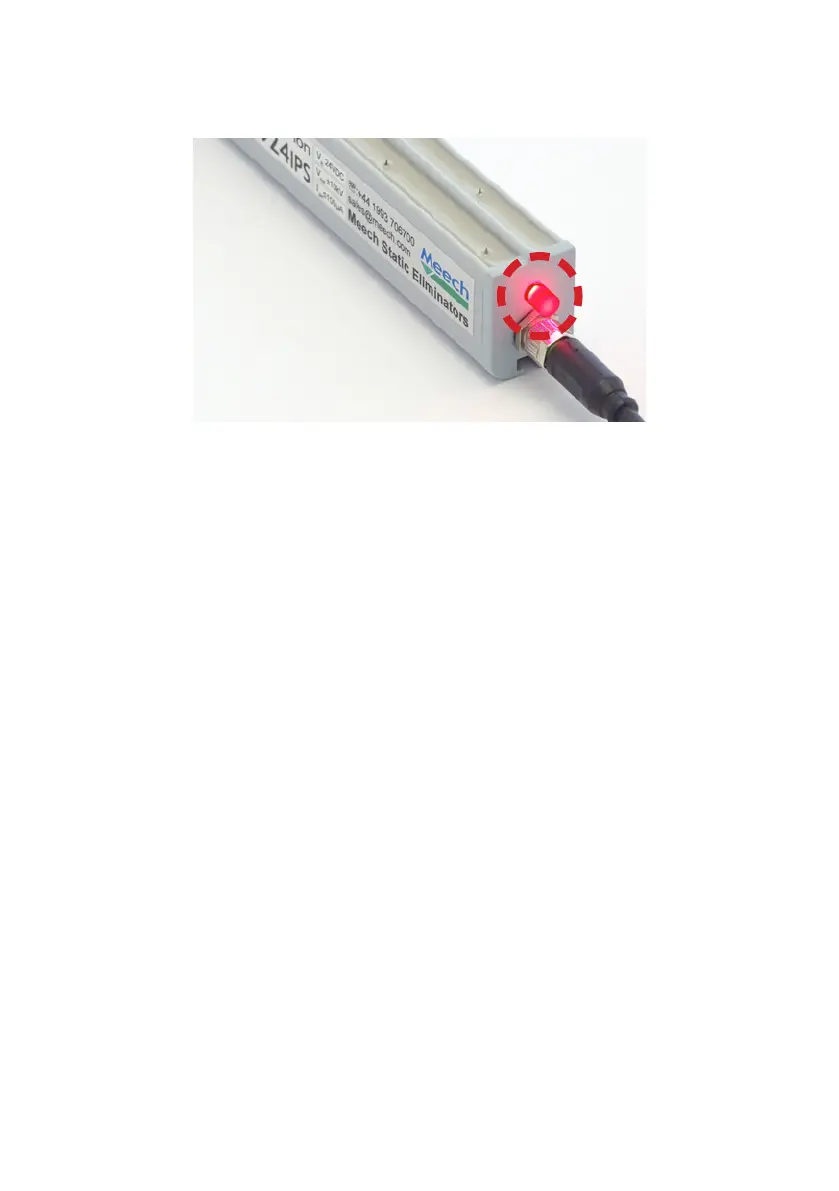

Clean Pin Alert LED
The local LED ashes constant green to indicate that the bar is on and working
correctly. Red ashing LED shows that bar is dirty and needs cleaning. Solid red
illumination indicates a fault with the high voltage output.
Green constant – OK
Green ashing – BarMaster remote programmer connected
Red ashing - Cleaning required
Red constant - Fault
Clean Pin Alert and Fault Output
An output signal indicates when the bar needs cleaning or when a fault has been
detected. The signal is 0V/24V output on pin 2. By default: Bar OK = 24V, Bar needs
cleaning (or fault detected) = 0V. If required the signal can be inverted to give OK =
0V, Cleaning Required = 24V using a Barmaster Remote Programmer
