MEGAFLO DD - Mounting Plate


33

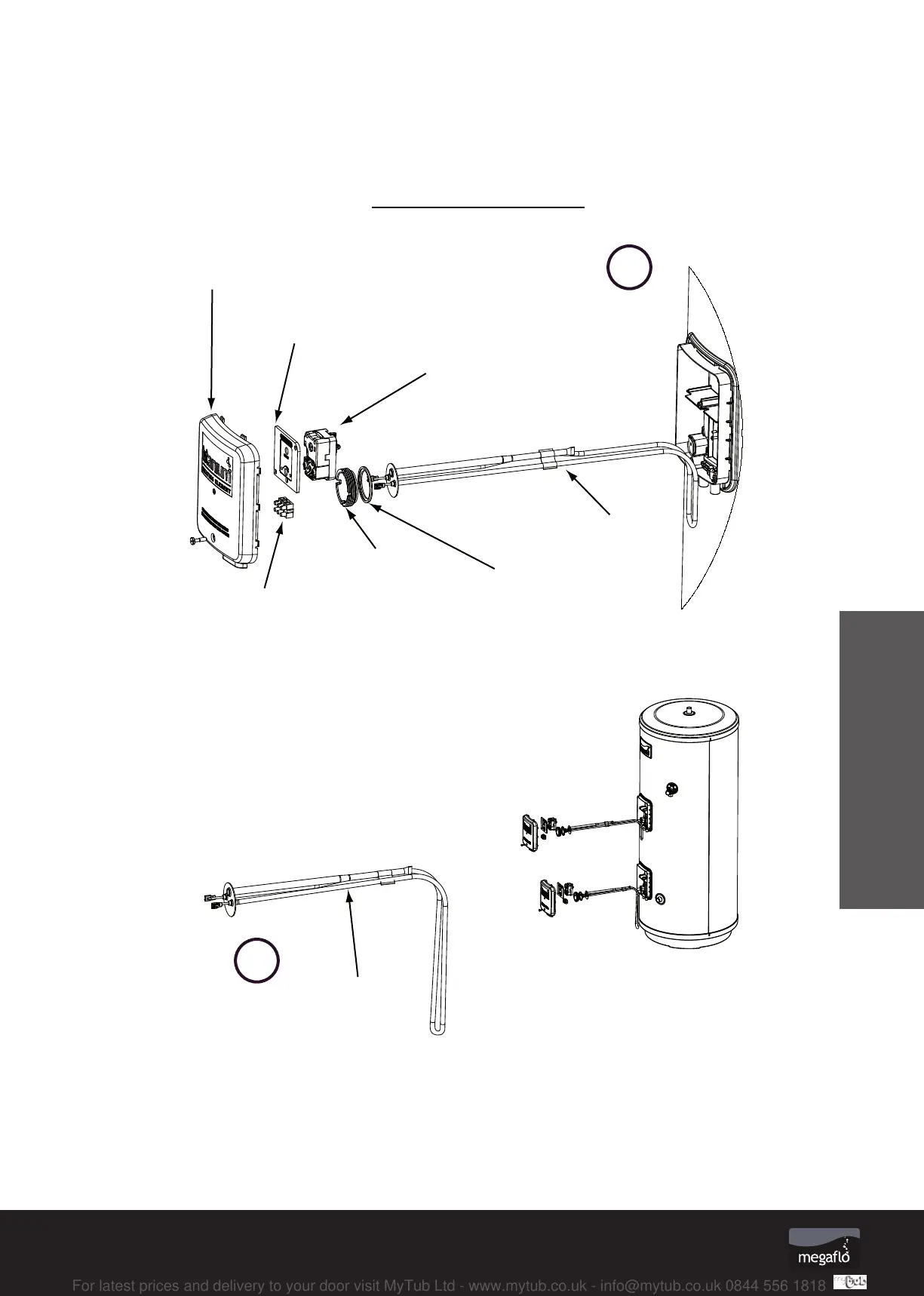

Figure21: Direct Exploded View
B
A
Terminal Cover (direct)
Mounting Plate
3 Way Terminal Block
Backnut
Gasket
Direct Combined Thermostat
and Thermal Cut-Out
Titanium Immersion
Heater - Upper
95:614:119
95:607:929
95:612:717
95:607:932
95:607:940
95:611:822
95:606:989
95:606:988
Direct Control Assembly
A
B
Spare components are common to Upper
and Lower Direct Control Assemblies
Exept for the Upper element 95:606:989
and Lower element 95:606:988
Titanium Immersion
Heater - Lower


