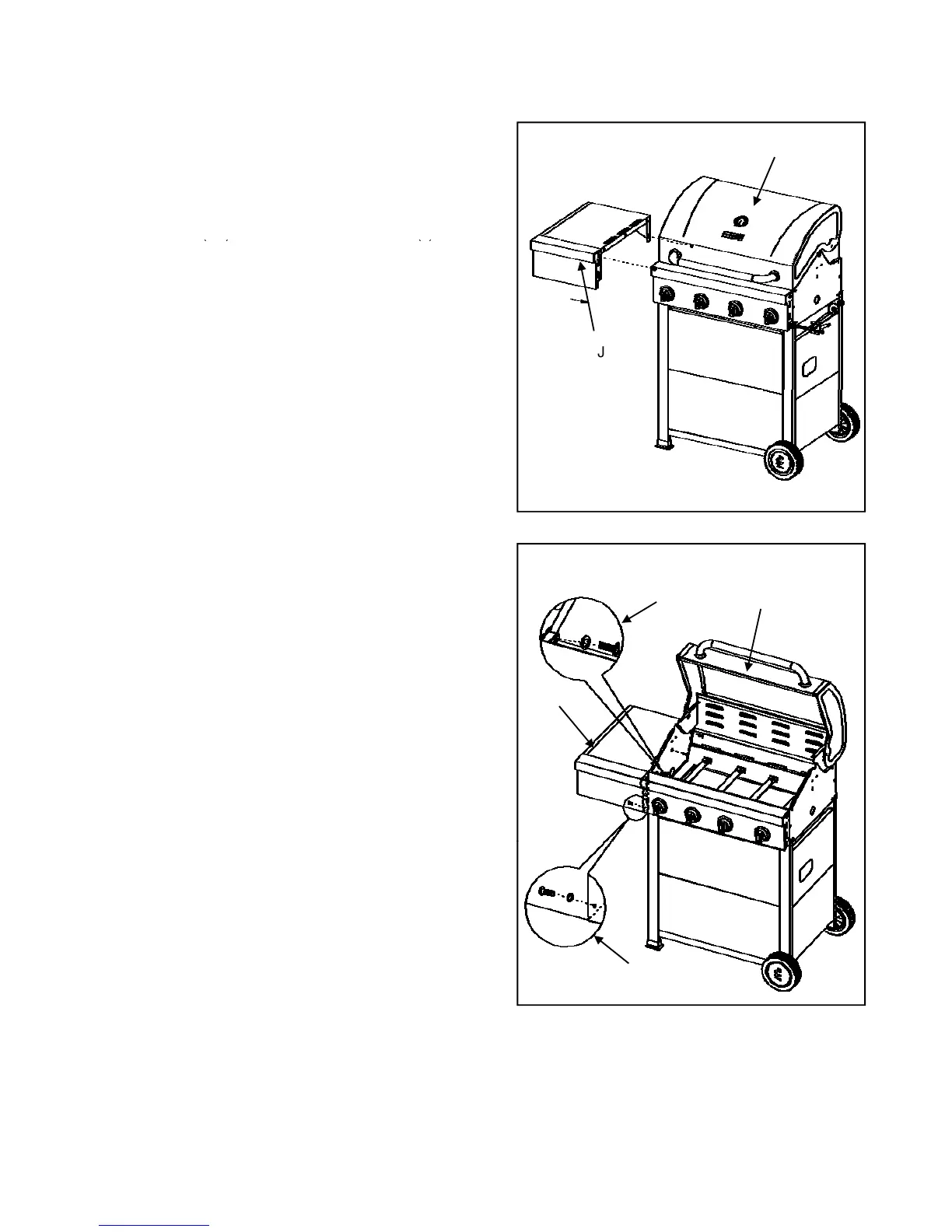

Fig. 11
9. Side Shelf Left Assembly
a) Loosen but do not remove two screws which were pre-
assembled on left side of Firebox (A). Align the holes
and secure the Side Shelf Left (J) from inside firebox by
using 3pcs Truss Head Screws (H2) and 3pcs Flat
Washers
(
H6
)
to attach the Side Shelf Left
(
J
)
to the
3xH2
3xH6
A
()
()
Firebox (A). As shown in Fig.11 and Fig.12.a1.
b) Tighten screws loosened in 9a. Ensure all screws are
tight.
J
c) Using 1pc Truss Head Screw (H1) and 1pc Flat
Washer (H5) to attached the Side Shelf Left (J) to the
left side of main control panel. As shown in Fig.12.a2.
Fig. 12
A
1xH1
1xH5
a1
J
a2
17
