9
megger.com

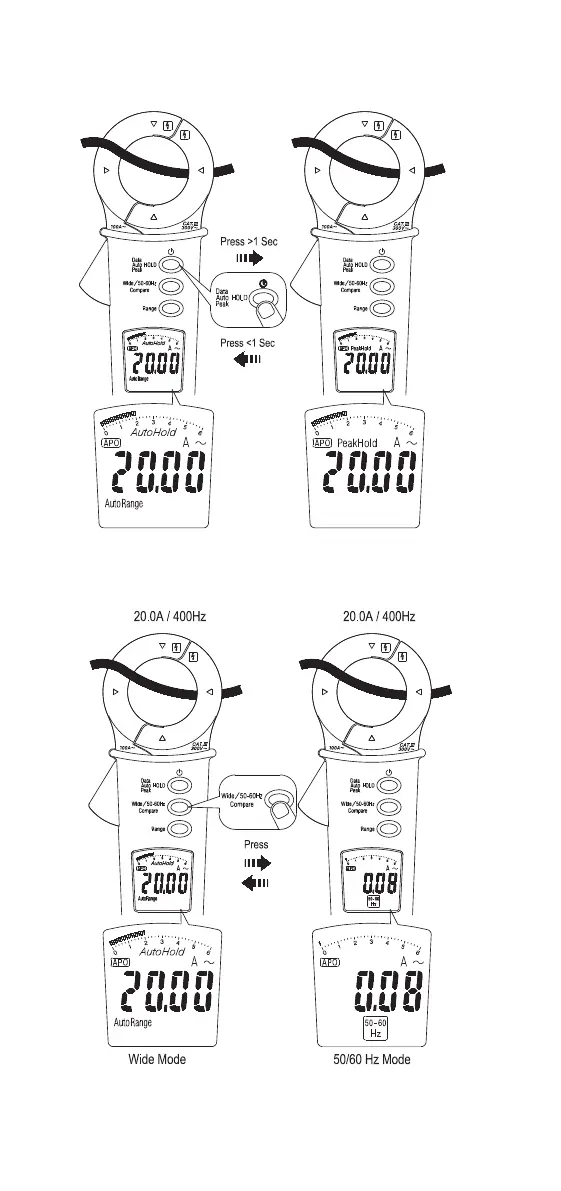

Peak Hold
(forcing into the manual range mode)
Low Pass Filter
(forcing into the manual range mode)
■ The cut-off frequency of the low pass filter is about 100 Hz with an
attenuation characteristic of approximately -24 dB / octave.
