NOTE
T
HE INSTRUMENT MUST ONLY BE USED BY SUITABLY TRAINED
A
ND COMPETENT PERSONS
Users of this equipment and/or their employers are reminded that Health
a
nd Safety Legislation requires them to carry out valid risk assessments of all
e
lectrical work so as to identify potential sources of electrical danger and risk
of electrical injury such as inadvertent short circuits.
Where the assessments show that the risk is significant then the use of fused
test leads constructed in accordance with the HSE guidance note GS38
'Electrical Test Equipment for use by Electricians' should be used.
Symbols used on the instrument are:
F Caution: risk of electric shock
G Caution: refer to accompanying notes
t Equipment protected throughout by Double Insulation (Class II)
c Equipment complies with current EU directives.
Equipment must not be connected to installations >500 V.
Voltage, Continuity and Insulation testing
Voltage measurement (V)
Range switch set to (V) range
The MFT will automatically display circuit voltage up to 500 V
a.c./d.c.

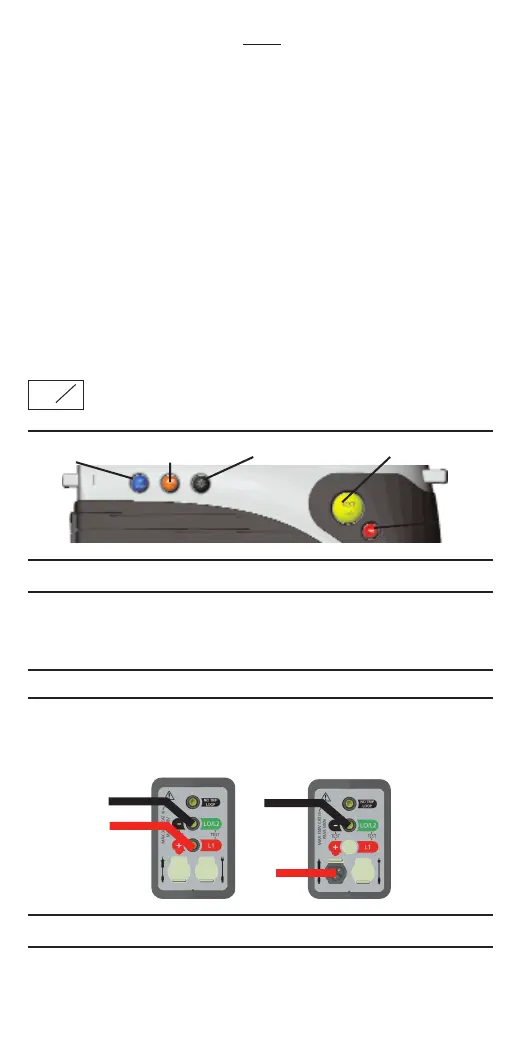

Backlight (MFT1502/MFT1552 only)
Intelligent mode - operates automatically. To switch to manual
mode, press the RED lock and the BLACK backlight buttons
together.
OPTION 2
Switched
probe
OPTION 1
2 wire lead
set
BLACK
BLACK (BACKLIGHT) YELLOW (TEST)
RED
(LOCK)
BLUE (RCD) ORANGE (BUZZER)
BLACK
RED
PROBE
G
>500V
