Instrument controls and indicators
6. Instrument controls and indicators
6.1. Keypad and internal printer panel

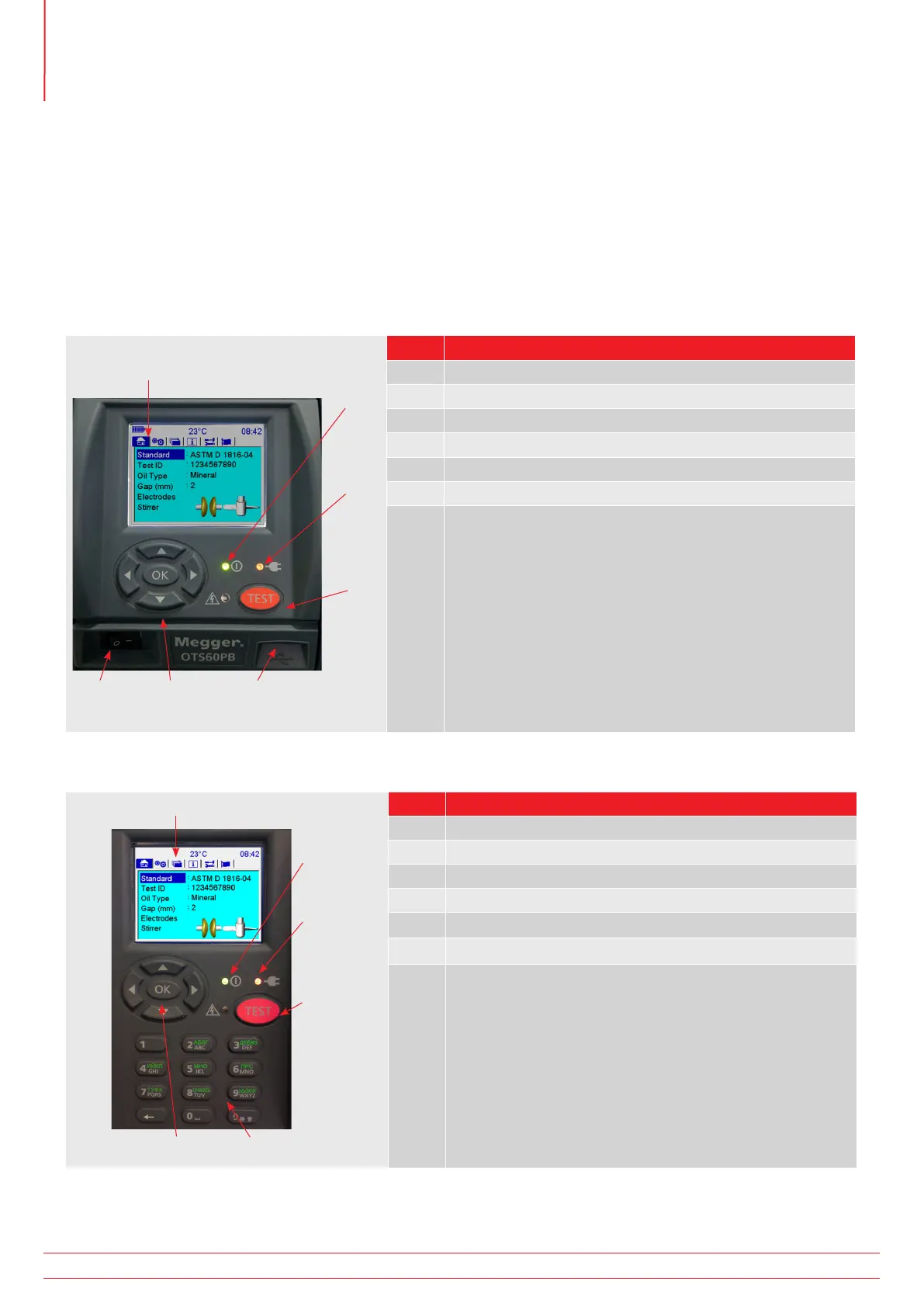

The control panel, illustrated below, is located to the front right side of the instrument and contains a QVGA colour
screen (1), navigation keypad with ‘OK’ button and a ‘TEST’ button. The operation is user friendly and driven from
six top level windows. A start-up LED is used during instrument initialisation. The lower, vertical section of the front
panel houses an ON/OFF power switch and a USB Type A interface socket
OTS PB models item description
1
3
5
2
4
7 6
Item Description
1 3.5 inch, backlight, bright colour QVGA display
2 On/Off LED
3 External power LED / icon
4 TEST’ button with associated red warning LED
5 USB socket
6 Navigation keypad with ‘OK’ select button
7 ON/OFF
OTS AF models item description
1
3
5
2
4
6
Item Description
1 3.5 inch, backlight, bright colour QVGA display
2 On/Off LED
3 External power LED / icon
4 TEST’ button with associated red warning LED
5 12 key alphanumeric keypad
6 Navigation keypad with ‘OK’ select button
