Megger TPT320 User Manual

Introduction
The Megger TPT320 voltage tester provides
electricians and electrical engineers with voltage
indication but has additional functions / features
that makes the instrument more versatile.
The TPT320 features both LCD and LED displays
that provide AC and DC voltage measurement
from 12 to 690 volts, in addition, a continuity
function ranging from 0 to 500 kW. Continuity
and voltage measurements are accompanied by
an acoustic sounder.
A bright LED torch feature allows safe working in
poorly lit environments.
When conducting a test between phase and
earth on a circuit protected by an RCD, RCBO
and Safety Breaker the TPT320 will not trip
these devices.
The phase rotation indication feature is simplified
which avoids the crossing of the test probes
adopted by some 2 pole testers.
With safety in mind, the TPT320 is CAT IV 600
V rated with an IP64 rated strong body that
provides an easy and comfortable grip. GS38
shrouds are provided as standard.
The unit has a feature that will warn the operator
of dangerous test voltages even when the
batteries have become exhausted.
Please note: To comply with GS38 (minimum
exposed tip) the metal caps on each prod must
be unscrewed and replaced with the supplied
plastic tip shrouds.

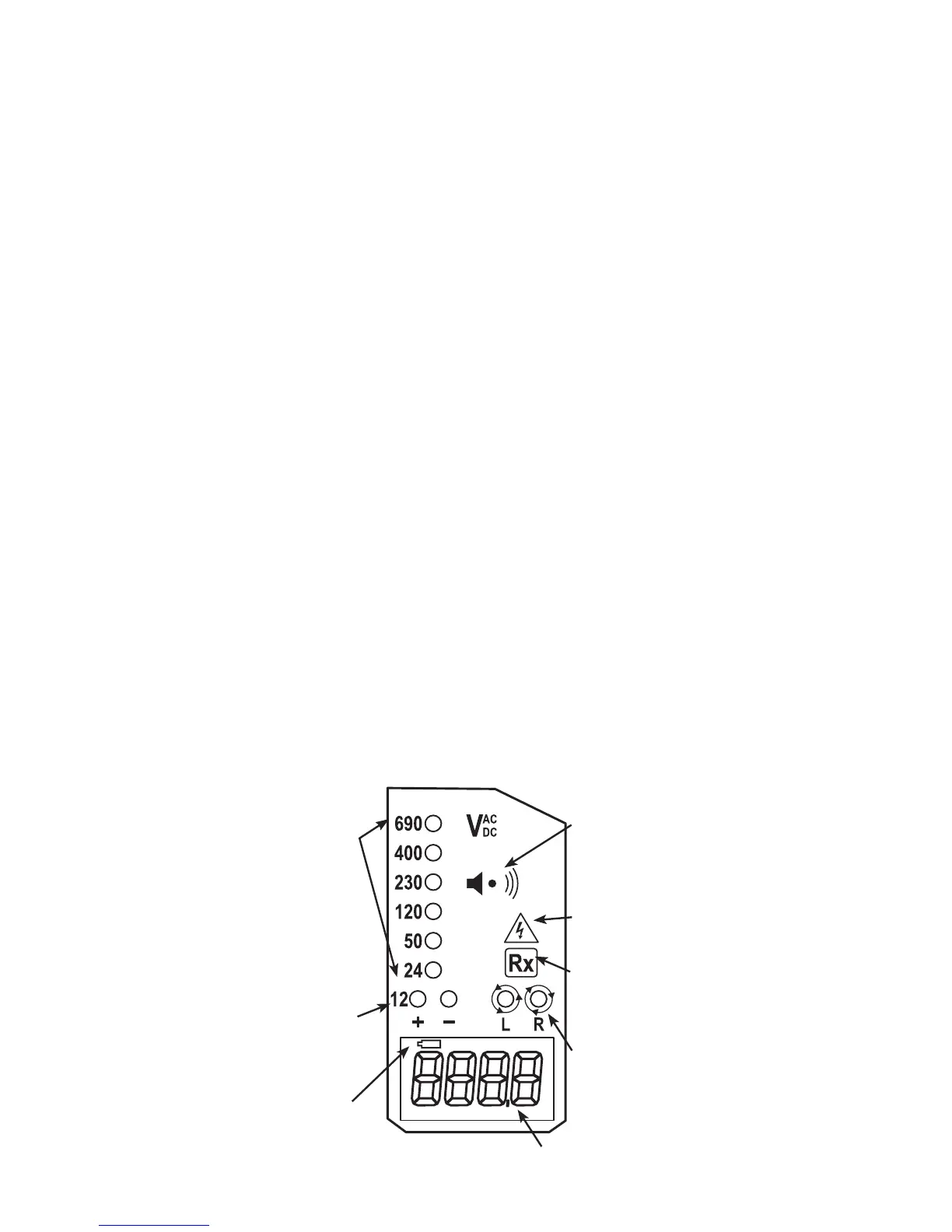

TPT320 Display
Voltage
LEDs
12 V &
polarity
LEDs
Low
battery
indicator
Digital
display
Sounder /
buzzer
Phase
rotation
LEDs
Voltage
warning
LED
Continuity
LED

Megger TPT320 Specifications

General

Display type	LCD
Product color	Black, White
Built-in display	Yes
Quantity per pack	1 pc(s)
Input operation voltage (max)	690 V
Input operation voltage (min)	12 V
International Protection (IP) code	IP64
