Connectors

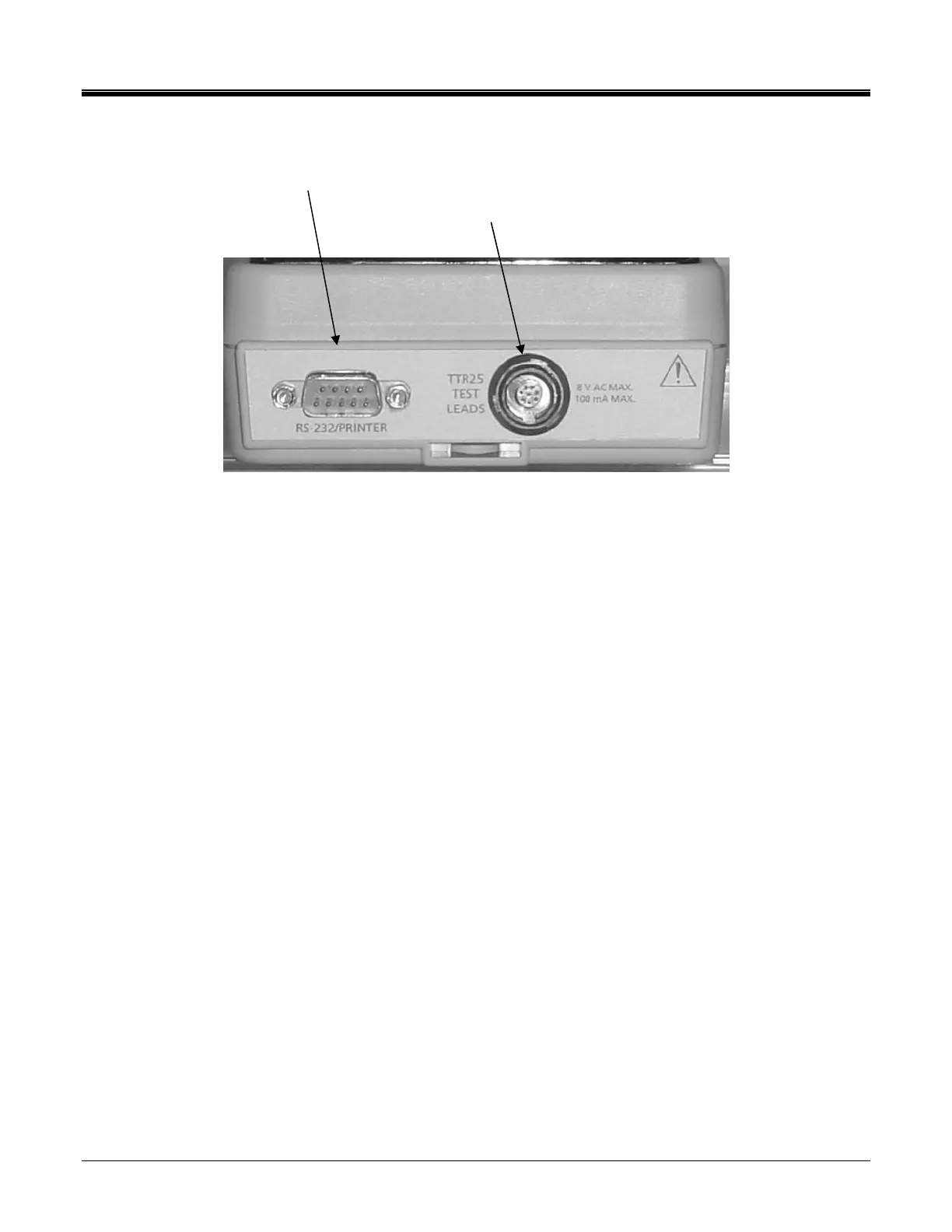

Figure 3-2 TTR25 Top Side Connector Panel
TEST CABLE
Plug receptacle for connecting test leads to the
high-voltage (H) and low-voltage (X) windings of a
transformer. The plug and receptacle are keyed
to prevent the cable from being inserted
incorrectly, and to make certain that the correct
cable is used.
RS-232/PRINTER
A DB-9 male connector for connecting a printer or
to upload data in real time to a PC (using
HyperTerminal).
TEST CABLE
PRINTER
