Page 2 of 9
INSTALLATION

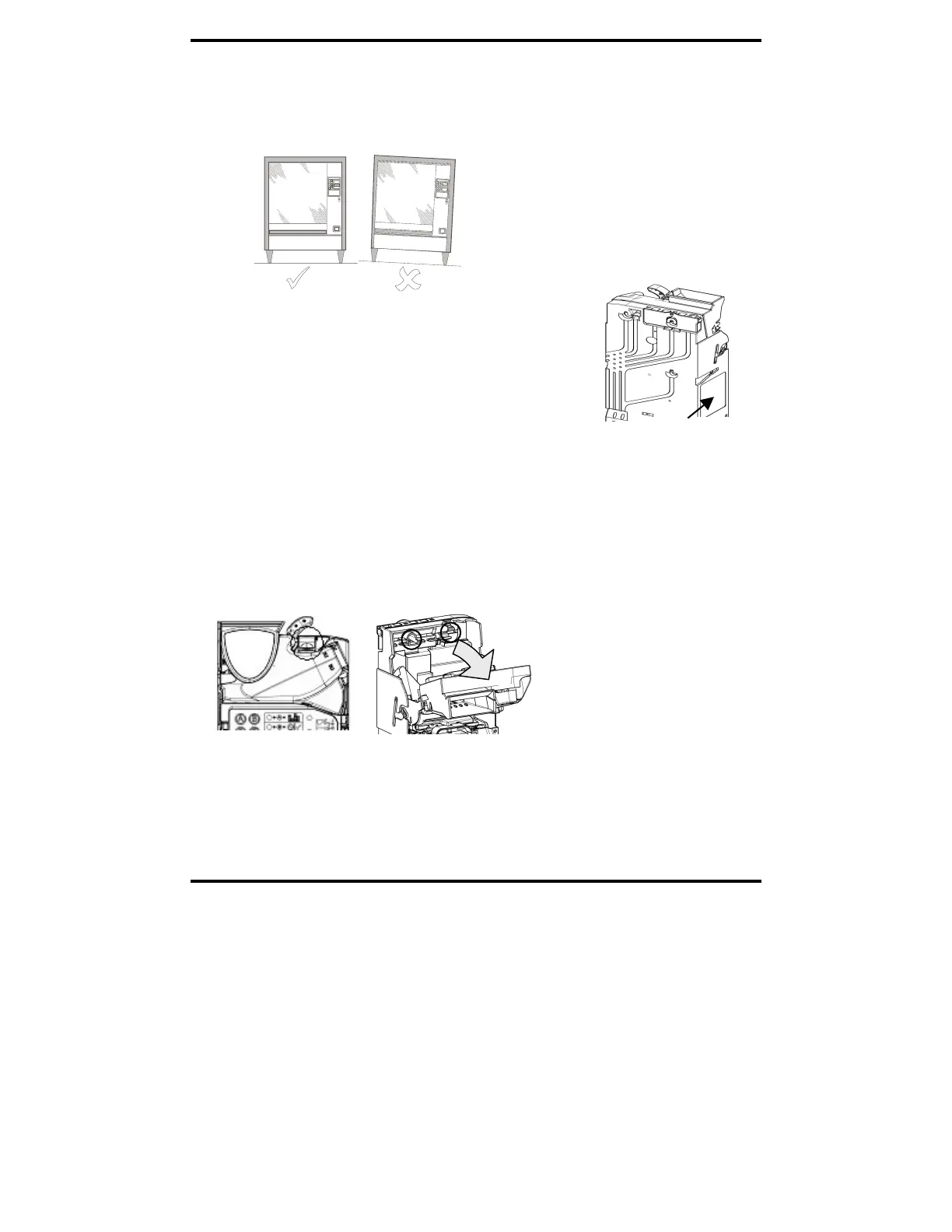

Preparing for Installation
♦ Turn OFF all power to the vending machine.
♦ To ensure that the EC6000 performance is not
affected, visually check the vending machine is
upright, both from the front and side.
♦ Before mounting the EC6000 to the vending
machine, check the operating voltage of the vending
machine matches that stated on the EC6000 label.
Installing the EC6000 to the machine
The EC6000 is mounted onto the vending machine by hanging it onto three studs
located on the vending machine. To do this you will need to open the
discriminator assembly and line up the mounting keyholes of the EC6000 with the
vending machine studs.
♦ Press the yellow button at the top of the EC6000 and gently lift and pull the
discriminator assembly forward. Once open, the mounting keyholes will be
made visible.
♦ To securely fix the EC6000 in place, partly unscrew the three machine studs.
♦ Line up the three mounting keyholes of the EC6000 with the studs and hang it
in place ensuring that the EC6000 is sitting flat against the machine back
plate.
Label
