Member's Mark 18496VB - Assembly Step 1: Feet;Wheels; Assembly Step 2: Connectors & Top Poles; Assembly Step 3: Slip Sleeves

7 | P a g e

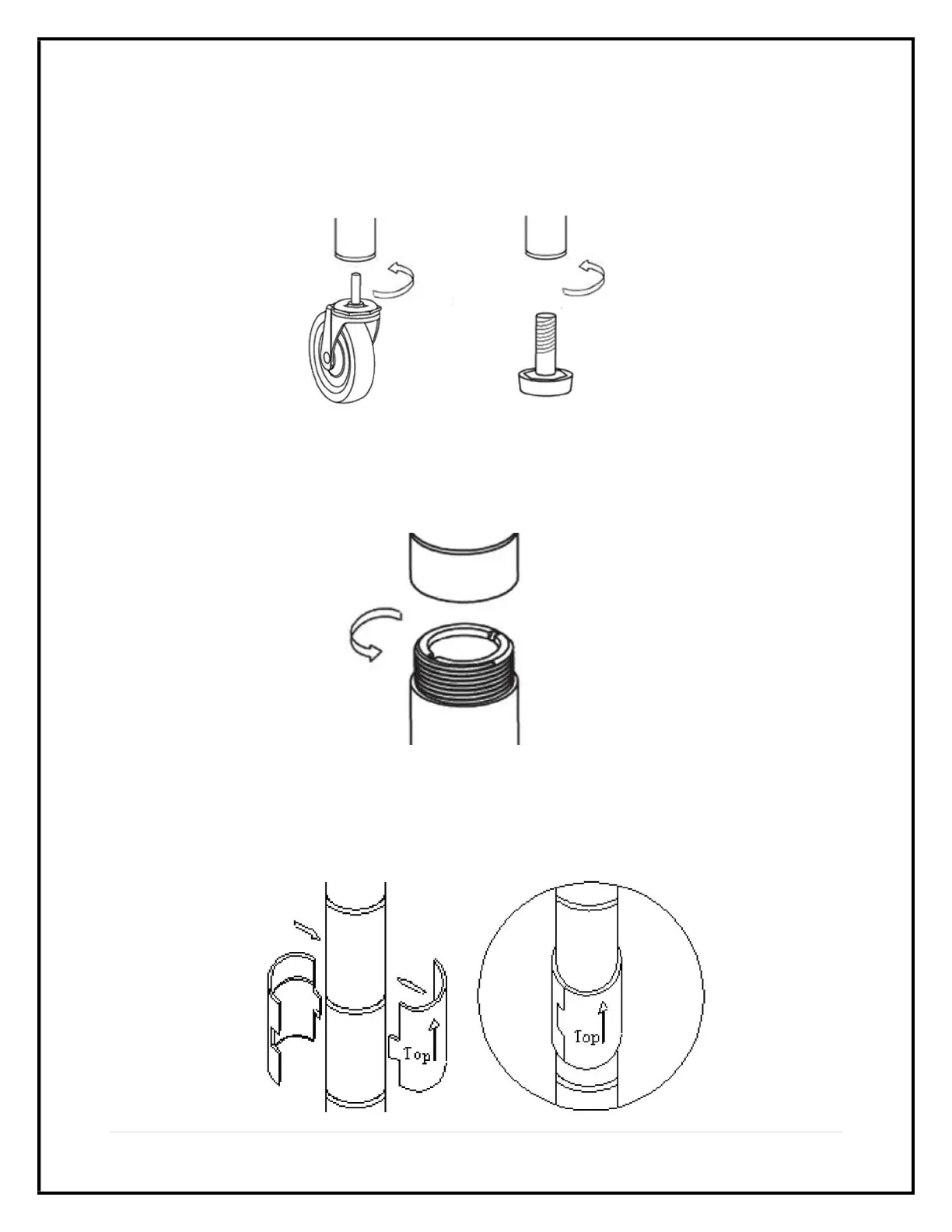

Step 1
Screw LEVELING FEET (F) or WHEELS (G,H) into base of BOTTOM POLES (A).
Repeat for all bottom poles.
Step 2
Screw CONNECTORS (C) into top of BOTTOM POLES (A).
Screw TOP POLES (B) to CONNECTORS (C). Connectors may be pre-installed.
Step 3
Snap SLIP SLEEVES (E) around the grooves on BOTTOM POLES (A) for the lowest
shelf. Count the number of grooves from the bottom to keep the height consistent.
or
