3. Mounting Diagram

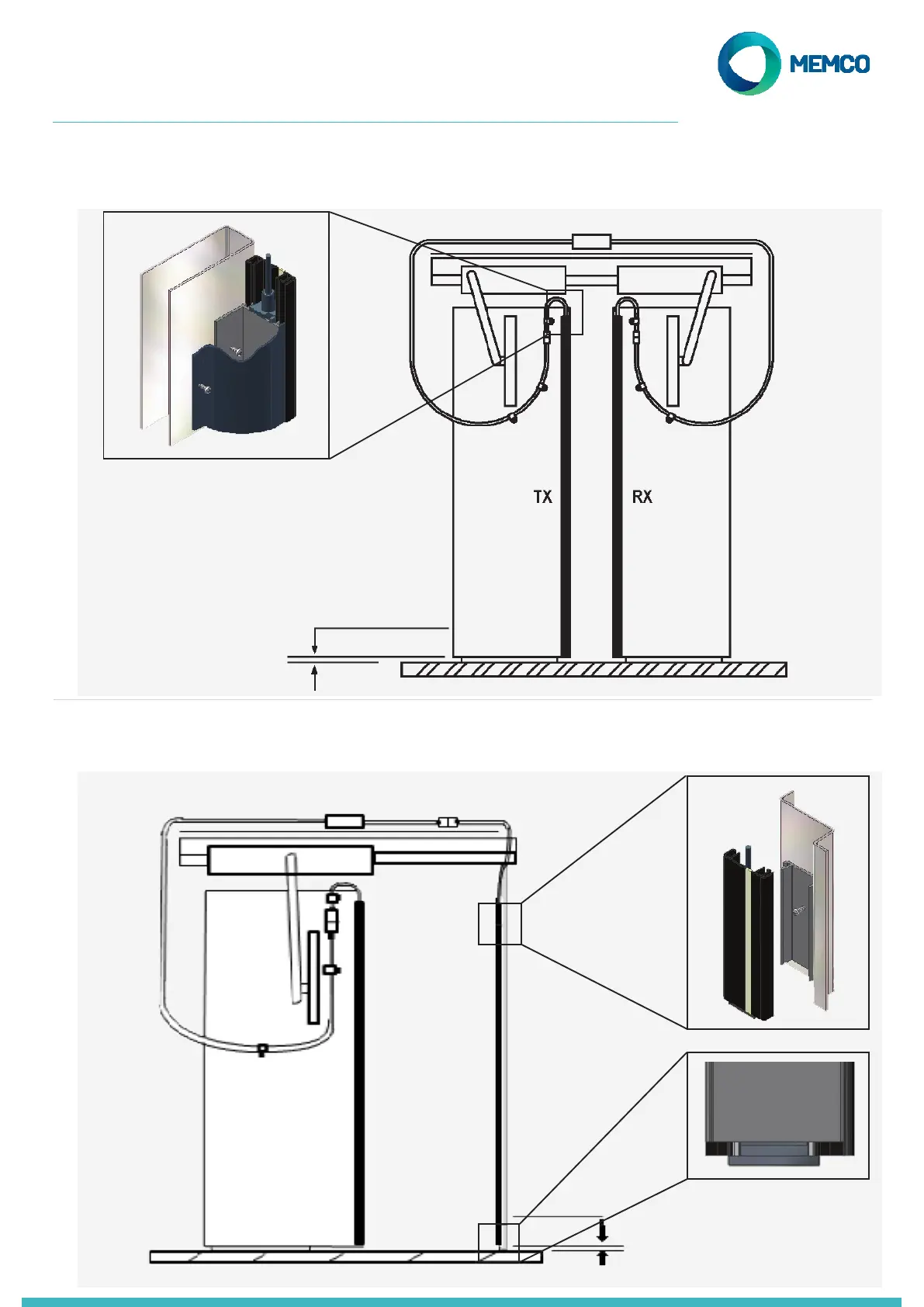

Centre opening doors with both detectors tted to the leading edge
Mounting Diagram
Side opening doors with RX detector tted to the slam
DOOR
ARM
TRAVELLING
CABLE
TRAVELLING
CABLE
5mm from sill
DOOR ARM
TRAVELLING
CABLE
5mm from sill
