Memmert ULE 600 - Troubleshooting and Service; Fault Rectification Checklist; Handling Display Errors

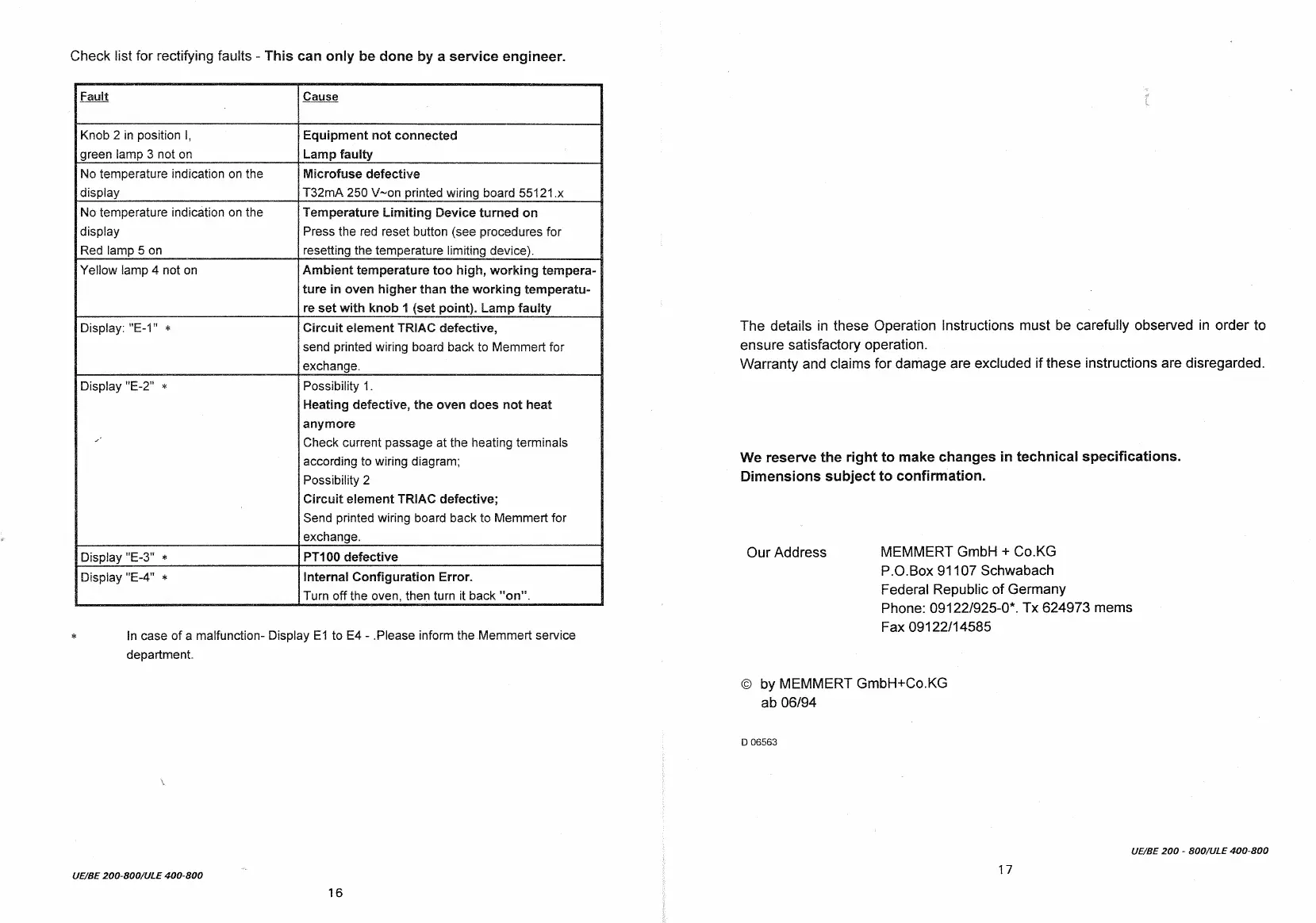

Check list for rectifying faults - This can only be done by a service engineer.
Fault
Cause
Knob 2 in position |,
green lamp 3 not on
Equipment not connected
Lamp faulty
No temperature indication on the
display
Microfuse defective
T32mA 250 V~on printed wiring board 55121.x
No temperature indication on the
display
Red lamp 5 on
Temperature Limiting Device turned on
Press the red reset button (see procedures for
resetting the temperature limiting device).
Yellow lamp 4 not on
Ambient temperature too high, working tempera-
ture in oven higher than the working temperatu-
re set with knob 1 (set point). Lamp faulty
Display: "E-1" + Circuit element TRIAC defective,
send printed wiring board back to Memmert for
exchange.
Display "E-2" « Possibility 1.
Heating defective, the oven does not heat
anymore
Check current passage at the heating terminals
according to wiring diagram;
Possibility 2
Circuit element TRIAC defective;
Send printed wiring board back to Memmert for
exchange.
Display "E-3" +
PT100 defective
Display "E-4" *
Internal Configuration Error.
Turn off the oven, then turn it back "on".
* In case of a malfunction- Display E1 to E4 - „Please inform the Memmert service
department.
