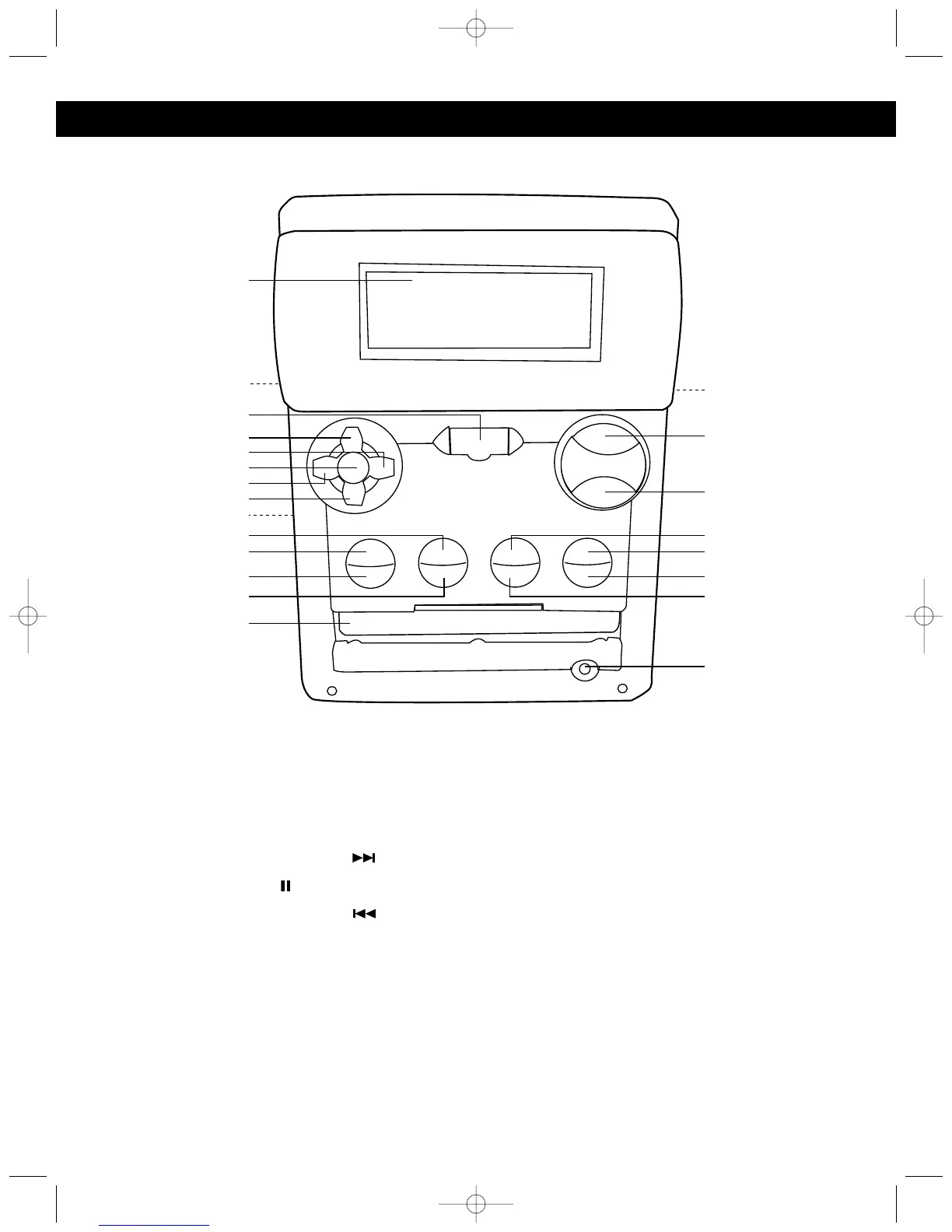

LOCATION OF CONTROLS AND INDICATORS
1
2
9
4
3
5
6
7
8
14
11
12
13
10 18
17
16
15
19
20
21
22
1. Display
2. Speaker Terminals (Rear of Unit)
3. POWER Button and Remote Sensor
4. STOP(■)/BAND Button
5. TUNING/CD Skip/Search Button
6. PLAY/PAUSE ( ) Button
7. TUNING/CD Skip/Search Button
8. REPEAT/MEMORY UP Button
9. FM Wire Antenna (Rear of Unit)
10. HOLD SET Button
11. CD Function Button
12. TUNER Function Button
13. MEMORY/CLOCK SET Button
14. CD Compartment
15. AC Power jack (Rear of Unit)
16. VOLUME Up Button
17. VOLUME Down Button
18. COLOR MODE Button
19. PRESET EQ Button
20. CD Door OPEN/CLOSE Button
21. TIMER/Sleep Button
22. Headphones Jack
