Memphis Elite - Built-In Grill Island Dimensions; Island Specifications and Power Requirements

VG0969_B1 2/14/13 3

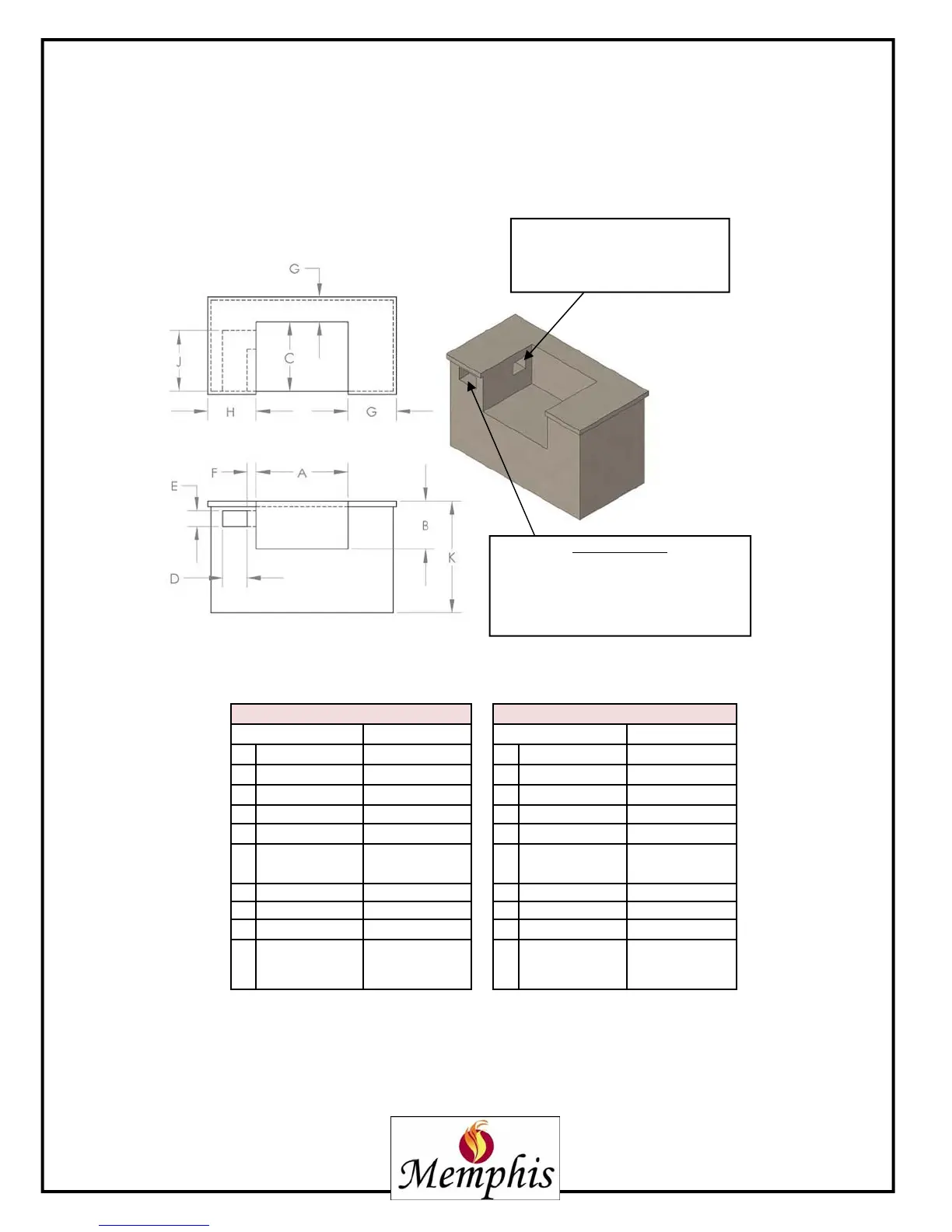

Built‐InGrillIslandDimensions

WARNING: See clearance to combustible materials, when designing and constructing a built-in island. Built-In
islands must be built to the specifications listed below.
The owner and/or builder are responsible for consulting local, county and state building codes for securing any
necessary building permits before construction. NOTE: Construction codes vary from locality to locality.
VGB0001 PRO BUILT-IN VGB0002 ELITE BUILT-IN
DIMENSION TOLERANCE DIMENSION TOLERANCE
A 30 ¼” ± 1/8” A 42 5/8” ± 1/8”
B 16 ¾” ± 1/8” B 16 ¾” ± 1/8”
C 24 ½” ± 1/4” C 24 ½” ± 1/4”
D 8 ¼” ± 1/8” D 8 ¼” ± 1/8”
E 4" ± 1/8” E 4" ± 1/8”
F
3 INCHES -
9 FEET
F
3 INCHES -
9 FEET
G 3 ½” MIN G 3 ½” MIN
H 12" MIN H 12" MIN
J 22" ± 1" J 22" ± 1"
K
STANDARD
CABINET
HEIGHT K
STANDARD
CABINET
HEIGHT
The Memphis Pro and Elite require a 110/120 V AC* supply. The ITC is supplied with a 3-prong grounding plug.
To minimize possible shock hazard, the cord must be plugged into a mating 3-prong ground-type outlet,
grounded to conform with the National Electrical Code, ANSI/NFPA latest edition, Canadian Electrical Code
(CSA) and all local codes and ordinances.
*European units utilize a 230V power supply.
ITC Control Location
110/120v AC* supply required within 10 ft. of the ITC.
NOTE: The location of the ITC is for illustration
purposes only. The grill is equipped with 10 feet of
cable, allowing it to be mounted in a variety of locations.
*European 230V
Controller cable way is to maintain dimensions
D and E throughout its entire path.
The controller cable way may be located either
through the back of the island’s cavity, or in
either side of the cavity as depicted below.
NOTE: Dimensions are to the finished surfaces. Grill cavity surfaces are to be plumb and level to ensure a
proper fit.
