Mendota ML54 - Page 66

85-03-01145 ML54 Page 66
V(2’ MIN)
H1 + H2 MAX
2’
9’ 11”
3’
19’ 6”
4’
32’
4’ – 12’
32’
For V greater than 12’, see
Master Venting Chart

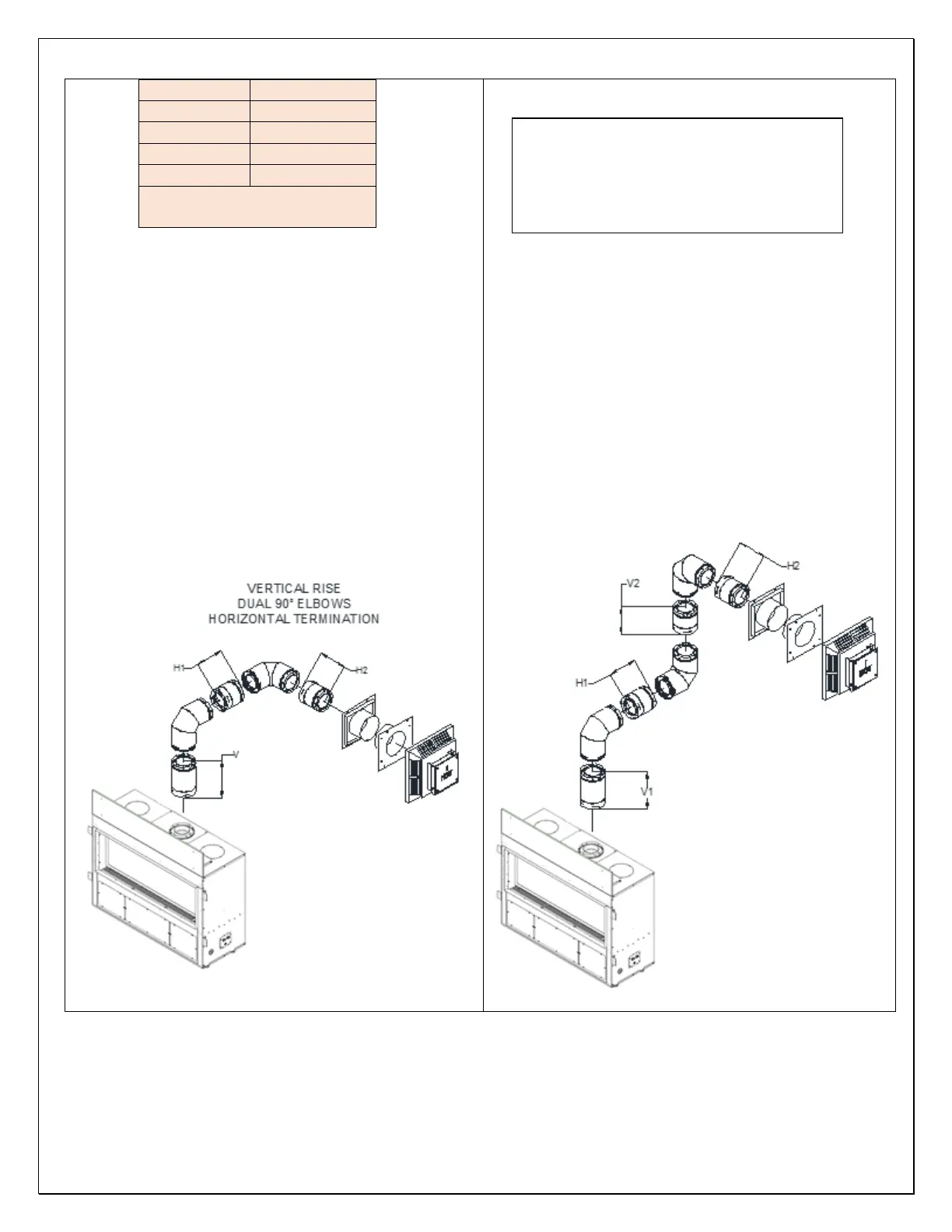

Vertical Rise
Three 90° Elbows
Horizontal Termination
Use the Master Venting Chart to calculate
allowable lengths.
