PAGE 25
Large door
Middle moulding Battery cover plate
Small door







Back box
Battery compartment only
Batteries 2 x 12V, 12Ah
Mains conduit entry
Mains Terminal block
Transformer
Tra ns former wires colour coded
Battery -ve (black)
Battery link wire
Battery +ve (red)
Battery connector (polarised)
Transformer connector
Zone connector
Cable clamp
Alarm connector
Interface board
Battery connector
Power connector
Power supply board

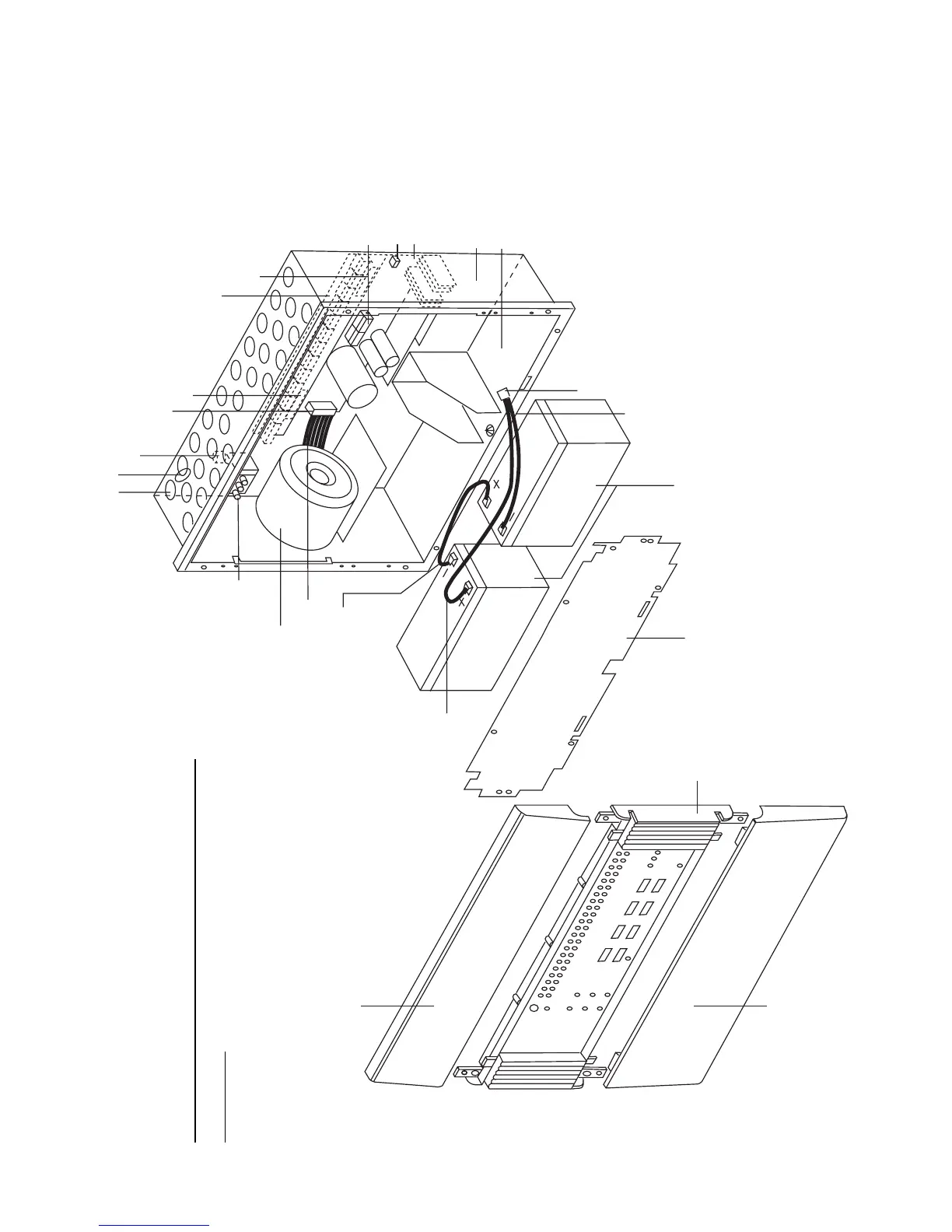

APPENDIX D
Assembly drawing for MF9308 & MF9316
FIG 1
