Controls in detail
Two-way radio with hands-free facility
2

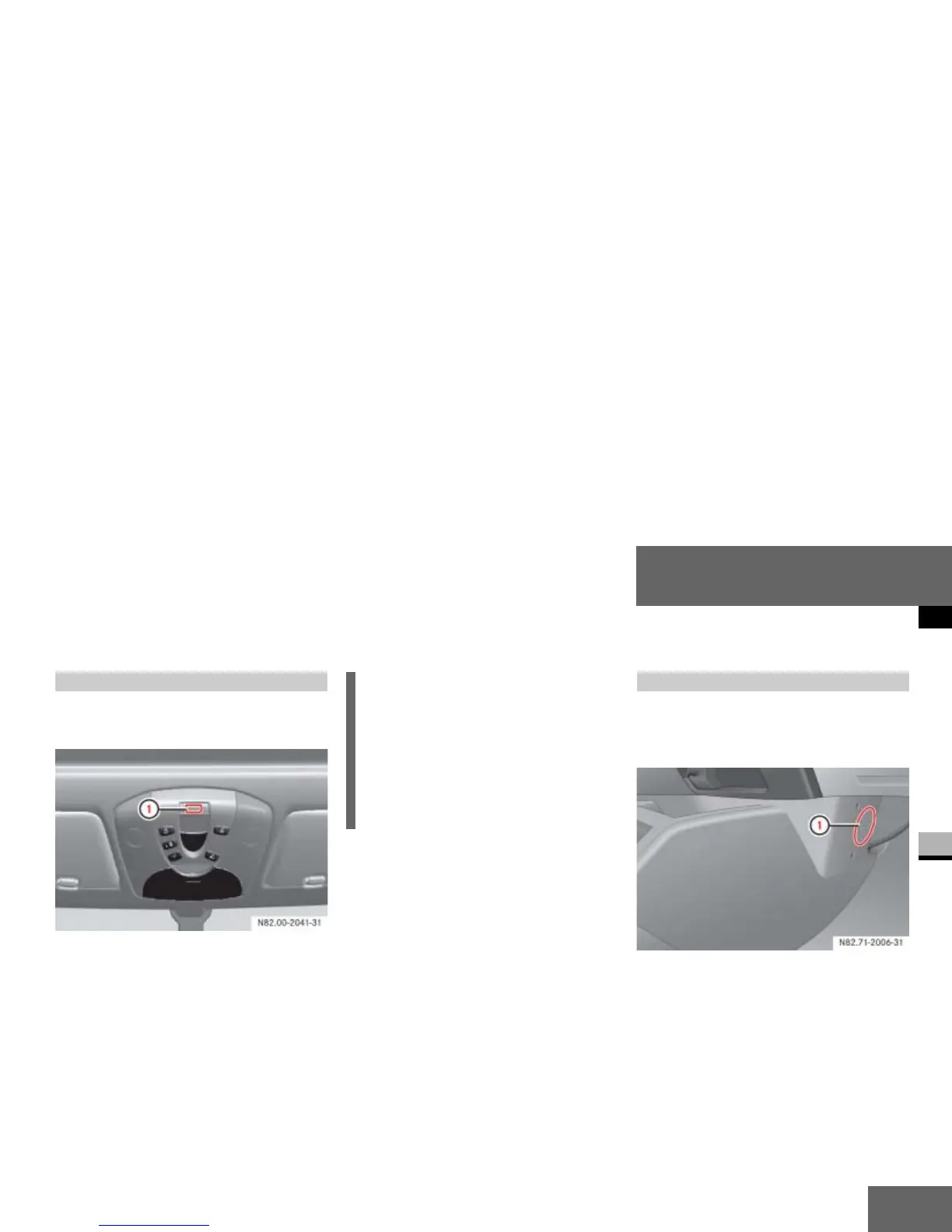

The electret microphone is in the overhead
control panel.
1
Electret microphone
The two-way radio loudspeaker is in the
front-passenger footwe
ll in the centre con-
sole.
1
Two-way radio loudspeaker
Electret m
icrophone
i
You must have electret microphone
1
adapted to the two-way radio unit.
Electret microphone coupling el
ectron-
ics (
page
52).
Electret micr
ophone technical data
(
page
53).
Two-way radio loudsp
eaker
17
19
Table of Contents
Default Chapter
4
Table of Contents
4
Introduction
6
The Aim of this Supplement
6
Symbols
7
Operating Safety
8
Retrofitting Electrical and Electronic Equipment
8
Operation of Mobile Phones and Two-Way Radios
10
1 At a Glance
12
Cockpit
13
2 Controls in Detail
16
Two-Way Radio with Hands-Free Facility
17
Transmitter Button
17
Electret Microphone
18
Two-Way Radio Loudspeaker
18
Taxi Roof Sign Illumination
19
Activating Power Supply
20
Switching off
20
Two-Way Radio Operation
21
Practical Advice
22
Troubleshooting
23
Messages in the Multifunction Display (High-Line)
23
Changing the Batteries
27
Changing the Radio Remote Control Batteries
27
Fuses
29
Installing the Taximeter
30
Installing a Taximeter in the Lower
30
Section of the Centre Console
30
Installing the Mirror Taximeter
32
Installing the Two-Way Radio
34
Installing a Two-Way Radio in the Lower Section of the Centre Console
34
Installing the Two-Way Radio in the Centre Console
35
Connecting Peripherals
38
Fitting the Taxi Roof Sign
40
Connectors
42
Connector Socket for Taxi Roof Sign
42
Connector for Two-Way Radio Aerial
42
Connector for Two-Way Radio
43
Connector for Taximeter
44
Connectors for Mirror Taximeter
45
Connectors for Peripherals and HALE CEY System
46
Roof Aerial
47
Tuning the Aerial Rod to the Transmitter Frequency
47
Removing and Refitting the Aerial
48
Housing
48
4 Technical Data
50
Order Numbers
51
Order Numbers for Electrical
51
Connection Components
51
Road Speed Signal
53
Output Signal for Taximeter
53
Electret Microphone
55
Coupling Electronics
55
Technical Data
56
Technical Terms
58
Index
60
