Practical advice
Connecting peripherals
3
Connecting peripherals
You can use a 12 volt power supply con-
nection for accessories up to a maximum
of 100 W.
The tied-back connectors for the taximeter
peripherals, the separate 12 volt power
supply and the HALE CEY system are
located in the lower section of the centre
console* or in the footwell trim.

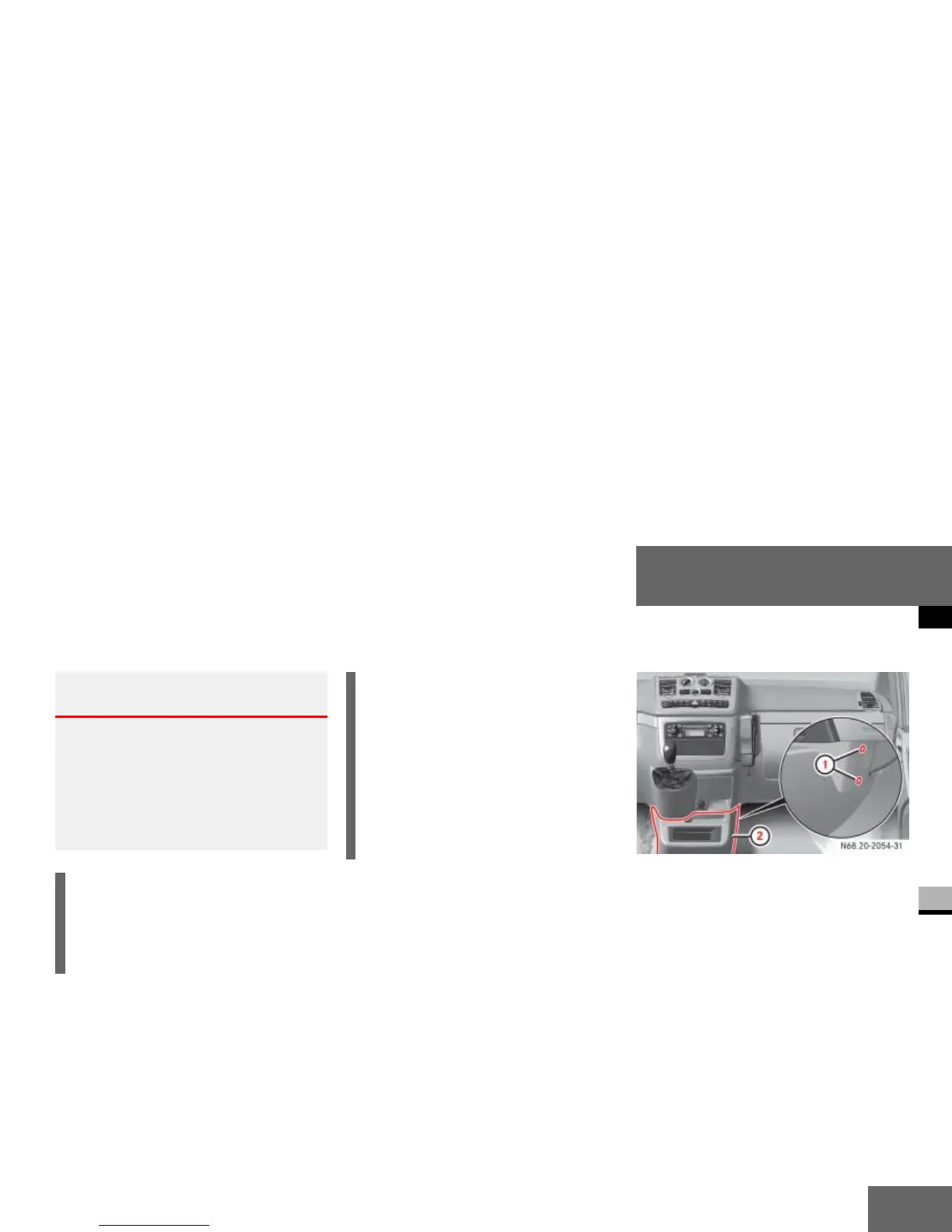

1 Torx screws
2 Lower section of centre console*
Unscrew the four Torx screws 1 from
both sides of the lower section of cen-
tre console*2 or the footwell trim.
Risk of injury G
You could injure yourself on sharp-edged
frame parts or reinforcement materials dur-
ing installation.
For this reason, have the peripherals
installed at a qualified specialist workshop,
e.g. a Mercedes-Benz Service Centre.
!
Before installing a device, you must
connect the quiescent current reten-
tion unit and disconnect the battery
earthing line.
i
The 12 volt power supply connection is
only supplied with power by the battery
when the key is in position 1 or 2. The
connection is protected by the PSM
module.
If the vehicle battery voltage falls below
11.2 V, the 12 volt power supply con-
nection switches off.
