MerCruiser GM4 - PG200 Reassembly

4A - 28 - STARTING SYSTEM 90-816462 2-695
REMOVAL
1. Remove armature bearing as previously de-
scribed.
2. Remove brush holder.
INSTALLATION

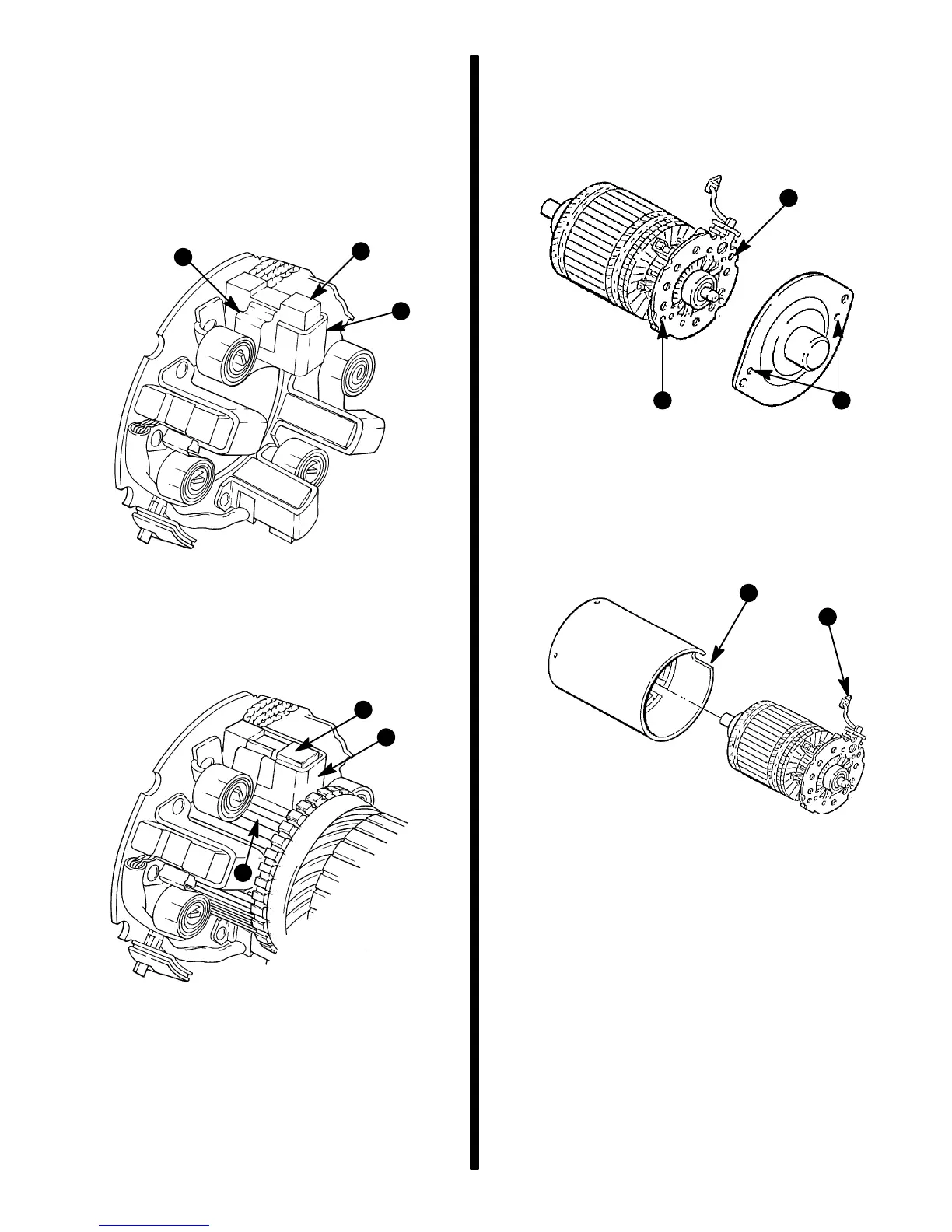

1. Push each brush up into its guide to allow spring
to hold it in place, as shown.
72072
c
a
b
a - Brush
b - Guide
c - Brush Spring
2. Place brush holder on armature and push
brushes down against commutator, as shown.
72069
b
c
a
a - Brush Holder
b - Commutator
c - Brush
3. Install armature bearing as previously described.
PG200 Reassembly
1. Install end frame on brush holder. Align holes of
end frame with holes of brush holder. Tighten
screws securely.
72063
b
a
b
a - Holes of End Frame
b - Holes of Brush Holder
2. Insert armature into field frame. Align brush hold-
er lead with notch in field frame.
NOTE: Permanent magnets in field frame will pull ar-
mature in place.
72062
a
b
a - Brush Holder Lead
b - Notch
