OUTBOARD INSTALLATION
eng 107
Electrical, Fuel Hose, Flush Hose and Control
Cables
FRONT COWL GROMMET
NOTE: Sufficient slack must exist in wiring, battery cables, and
hoses that are routed between the grommet and engine
attachment points to relieve stress and prevent hoses from being
kinked or pinched.

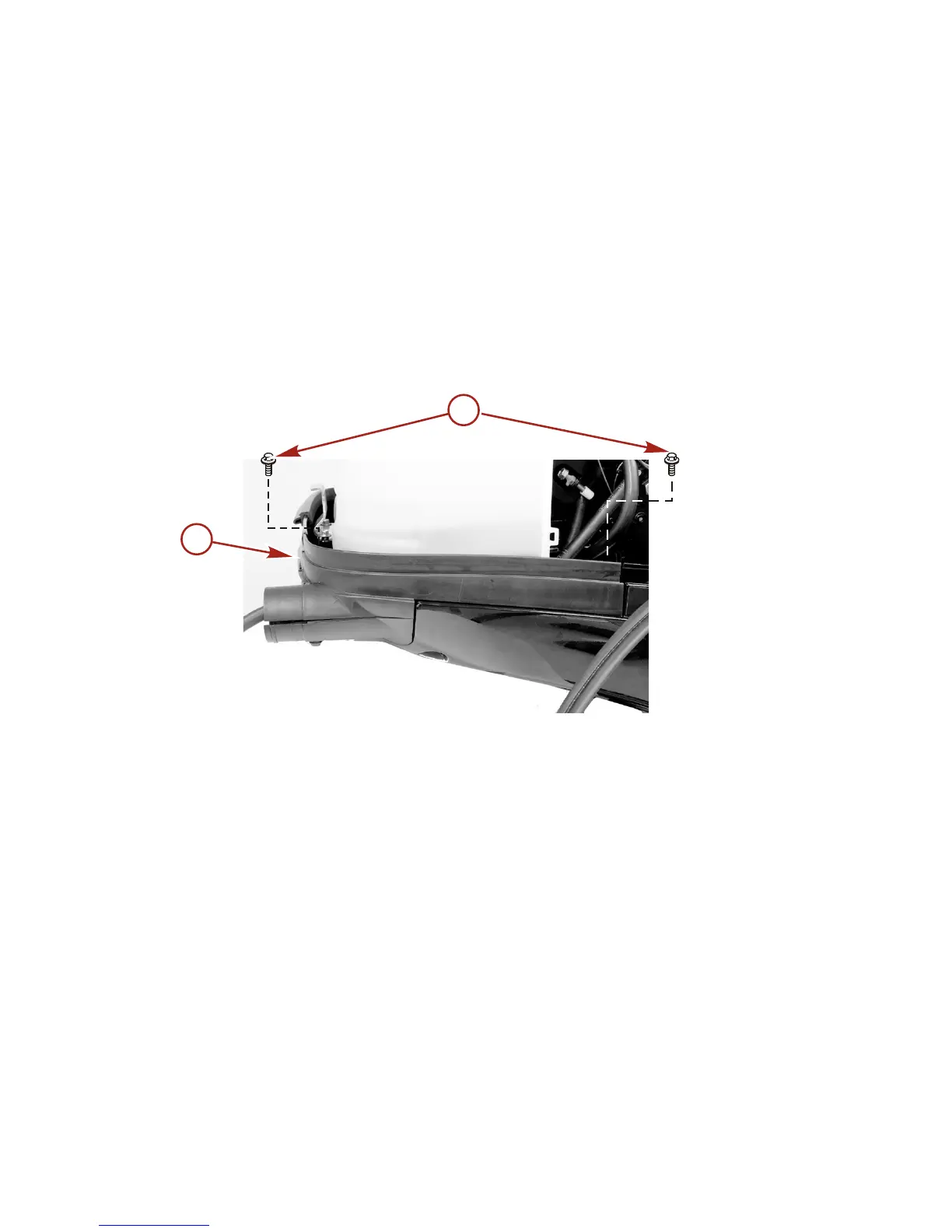

1. Pull up the cowl seal. Remove the access cover from the
bottom cowl.
a - Access cover
b - Screws
2. Insert the lower alignment pin on the grommet into the hole
in the lower cover. Ensure the lettered side of the grommet
is facing out.
3. Route the hoses, wiring, and cables through the correct
opening in the grommet, as shown.
