OUTBOARD INSTALLATION
108 eng

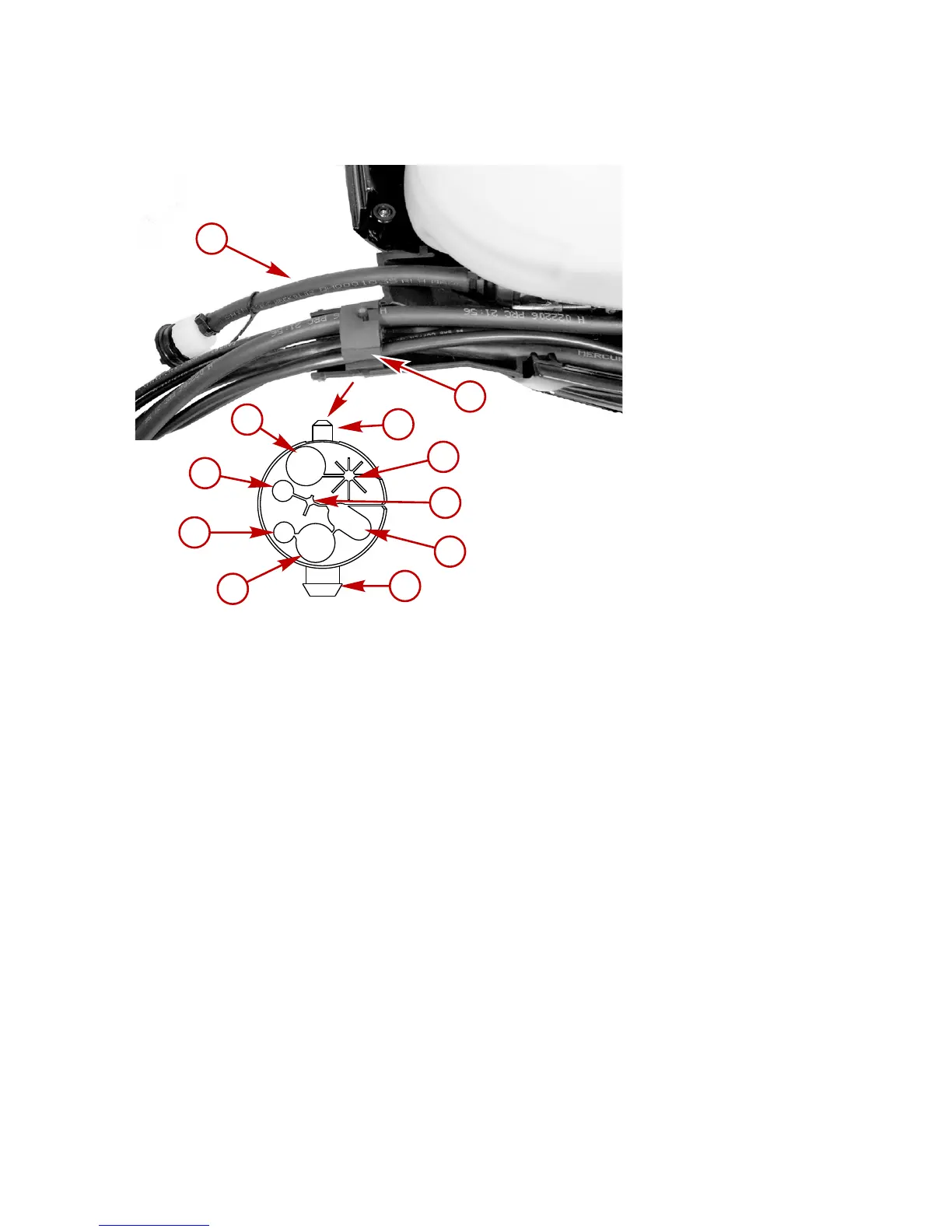

4. Install the flush hose after removing the knockouts. Refer to
Flush Hose Routing.
a - Flush hose
b - Grommet
c - Remote boat harness
d - Shift cable
e - Throttle cable
f - Fuel hose
g - Upper alignment pin
h - SmartCraft harness or additional harness opening
i - Water pressure tube
j - Battery cables
k - Lower alignment pin
5. Reinstall the access cover with two bolts. Reattach the cowl
seal.
