OUTBOARD INSTALLATION
110

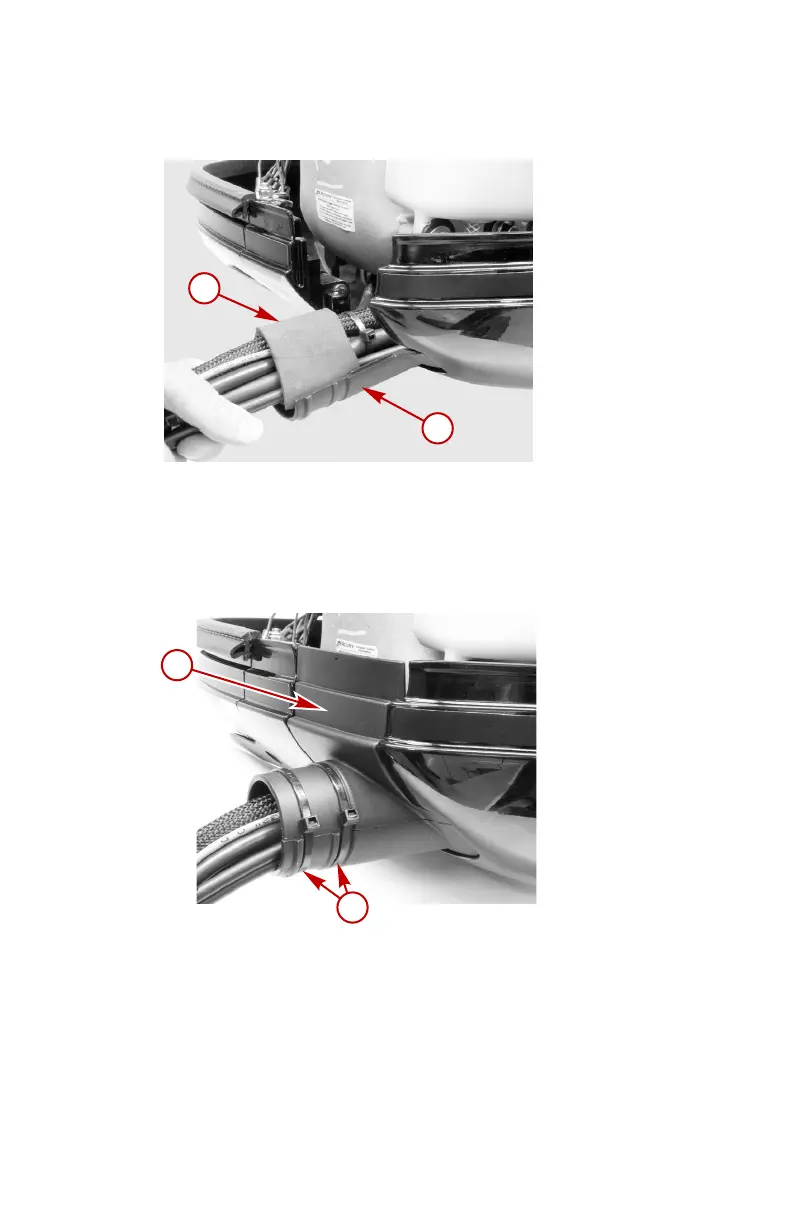

2. Place the neoprene wrap around the wiring, hoses, and
control cables, and place into the lower half of the front clamp.
a
b
29073
a - Neoprene wrap
b - Lower half of the front clamp
3. Join the top half of the front clamp with the bottom half. Secure
both halves together with cables ties.
a
b
29074
a - Top half of the front clamp
b - Cable ties
4. Secure the front clamp into the bottom cowl with the retainer
and two screws.

Mercury 225 OptiMax Specifications

General

Engine Type	V6
Horsepower	225 HP
Fuel Induction System	2-stage Direct Fuel Injection (DFI)
Alternator Output	60 amp / 756 watt
Weight	505 lbs / 229 kg
Cylinders	6
Starting	Electric
Gear Ratio	1.75:1
Displacement	3.0L
Shaft Length	20", 25"
