MAINTENANCE
73

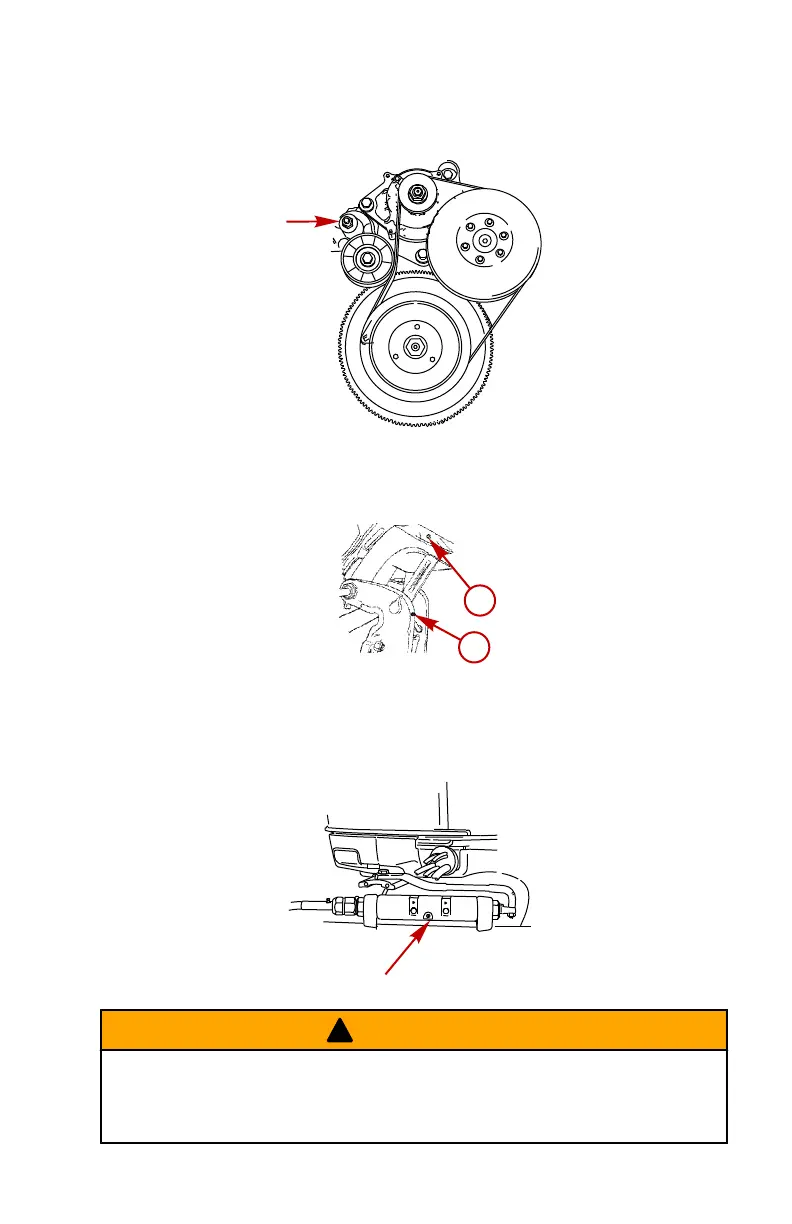

• Alternator Belt Tensioner Pivot Shaft ‑ Lubricate through
fitting.
2884
• Swivel Bracket ‑ Lubricate through fitting.
• Tilt Support Lever ‑ Lubricate through fitting.
a
b
27873
a - Swivel bracket
b - Tilt support lever
• Tilt Tube ‑ Lubricate through fitting.
27874
!
WARNING
Incorrect cable lubrication can cause hydraulic lock, leading to
serious injury or death from loss of boat control. Completely
retract the end of the steering cable before applying lubricant.
