Mercury 225 OptiMax Owner's Manual

INSTALLATION
18
ob00323
If changing conditions cause the RPM to drop below the recommended range, such as warmer, more humid
weather, operation at higher elevations, increased boat load, or a dirty boat bottom/gearcase, a propeller change
or cleaning may be required to maintain performance and ensure the outboards durability.

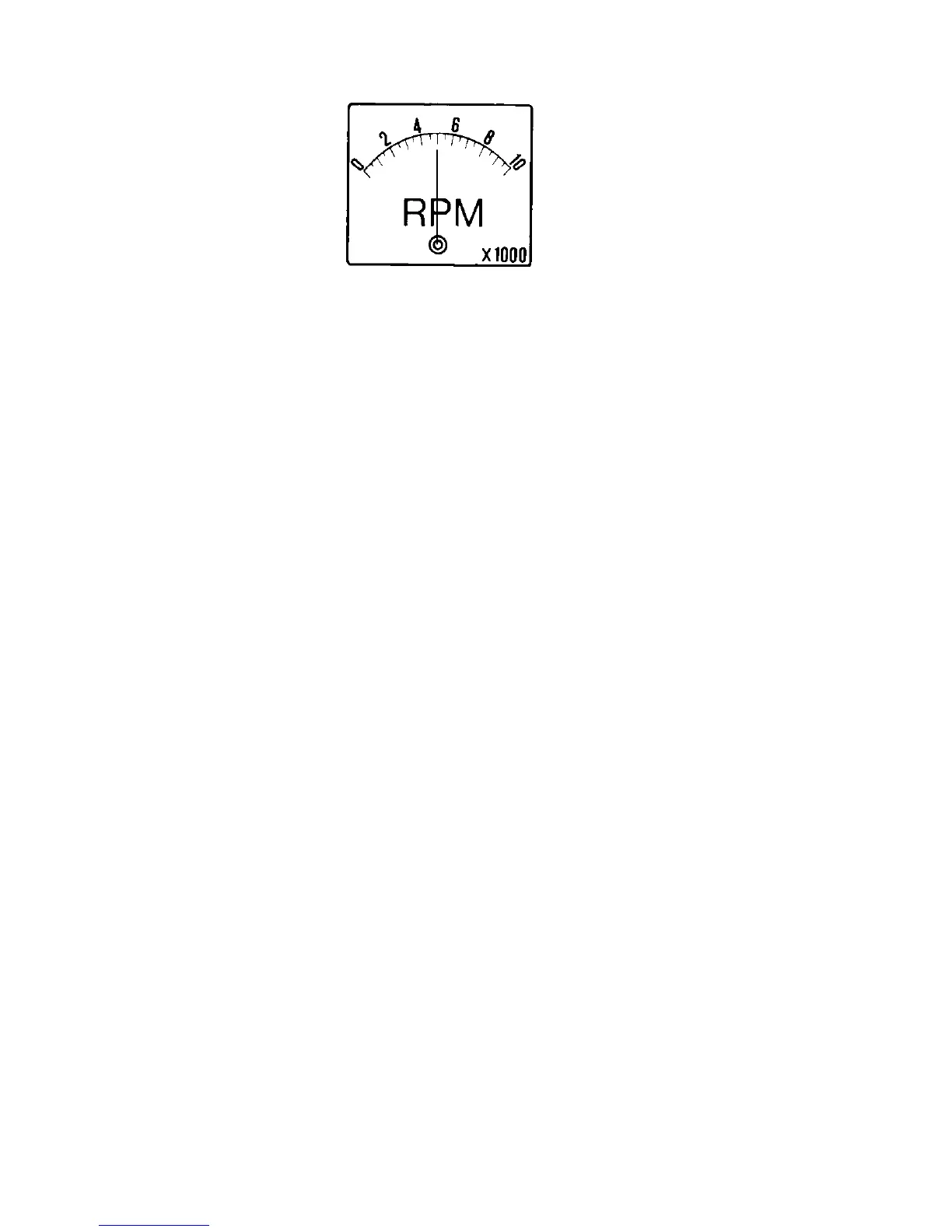

Check full‑throttle RPM, using an accurate tachometer, with the engine trimmed out to a balanced‑steering
condition (steering effort equal in both directions) without causing the propeller to break loose.

Mercury 225 OptiMax Specifications

General

Engine Type	V6
Horsepower	225 HP
Fuel Induction System	2-stage Direct Fuel Injection (DFI)
Alternator Output	60 amp / 756 watt
Weight	505 lbs / 229 kg
Cylinders	6
Starting	Electric
Gear Ratio	1.75:1
Displacement	3.0L
Shaft Length	20", 25"
