Remote Control Features

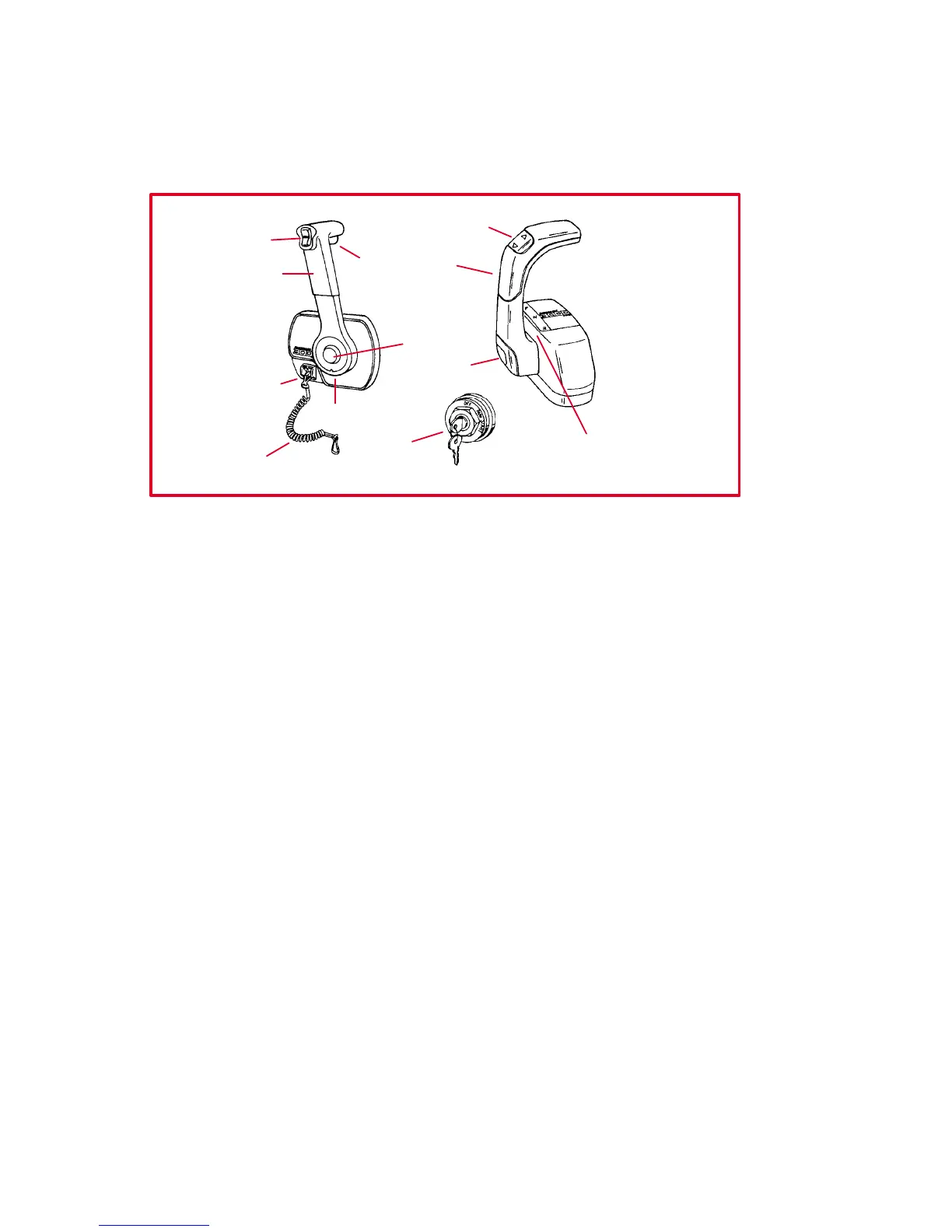

Your boat may be equipped with a Mercury Precision or Quicksilver remote control. All controls may not have
all features shown. If boat is equipped with a remote control other than shown, consult your dealer for a
description and/or demonstration of the control.
1 Single Control Handle - Operation of the shift and throttle are controlled by the movement of the control
handle. Push the control handle forward from NEUTRAL with a quick firm motion to the first detent for
FORWARD gear. Continue pushing forward to increase speed. Pull the control handle back from NEUTRAL
with a quick firm motion to the first detent for REVERSE gear. Continue pushing back to decrease speed.
A Dual Control Handles - Shift and throttle are controlled by separate handles with throttle control at IDLE,
push shift control forward for FORWARD or pull back for REVERSE. Then push the throttle control forward
to increase speed.
2 Neutral Release Lever - Prevents accidental shift and throttle engagement. Neutral lock button must be
pushed IN to move the control handle out of NEUTRAL.
3 Trim/Tilt Button(if Equipped) - Refer to Power Trim Operation.
4 Lanyard Stop Switch - Turns ignition OFF whenever the operator (when attached to the lanyard) moves
far enough away from the operator’s position to activate the switch. Refer to the Lanyard Stop Switch Safety
Explanation and Warning in the General Information Section.
5 Lanyard - Refer to the Lanyard Stop Switch Safety Explanation and Warning in the General Information
Section.
6 Throttle Friction Adjustment - Console controls require cover removal for adjustment.
7 Ignition Key Switch - OFF, ON, START.
8 Throttle Only Button - Allows engine throttle advancement without shifting the engine. This is done by
disengaging the shift mechanism from the control handle. The throttle only button can be depressed only
when the remote control handle is in the NEUTRAL position, and should only be used to assist in starting
the engine.
