Description Nm lb‑in. lb‑ft
Flame arrestor bracket nut 12 106 –
10. Connect the crankcase ventilation hose to the fitting on the flame arrestor and valve cover.
11. Install the engine cover.
a.
4.3 ECT models: Holding the edges of the engine cover, position the four engine cover legs, near the outer corners
of the cover, over the center holes in the cover grommets. Carefully push the cover straight down until fully seated.
Keep the engine cover level to avoid breaking the legs.

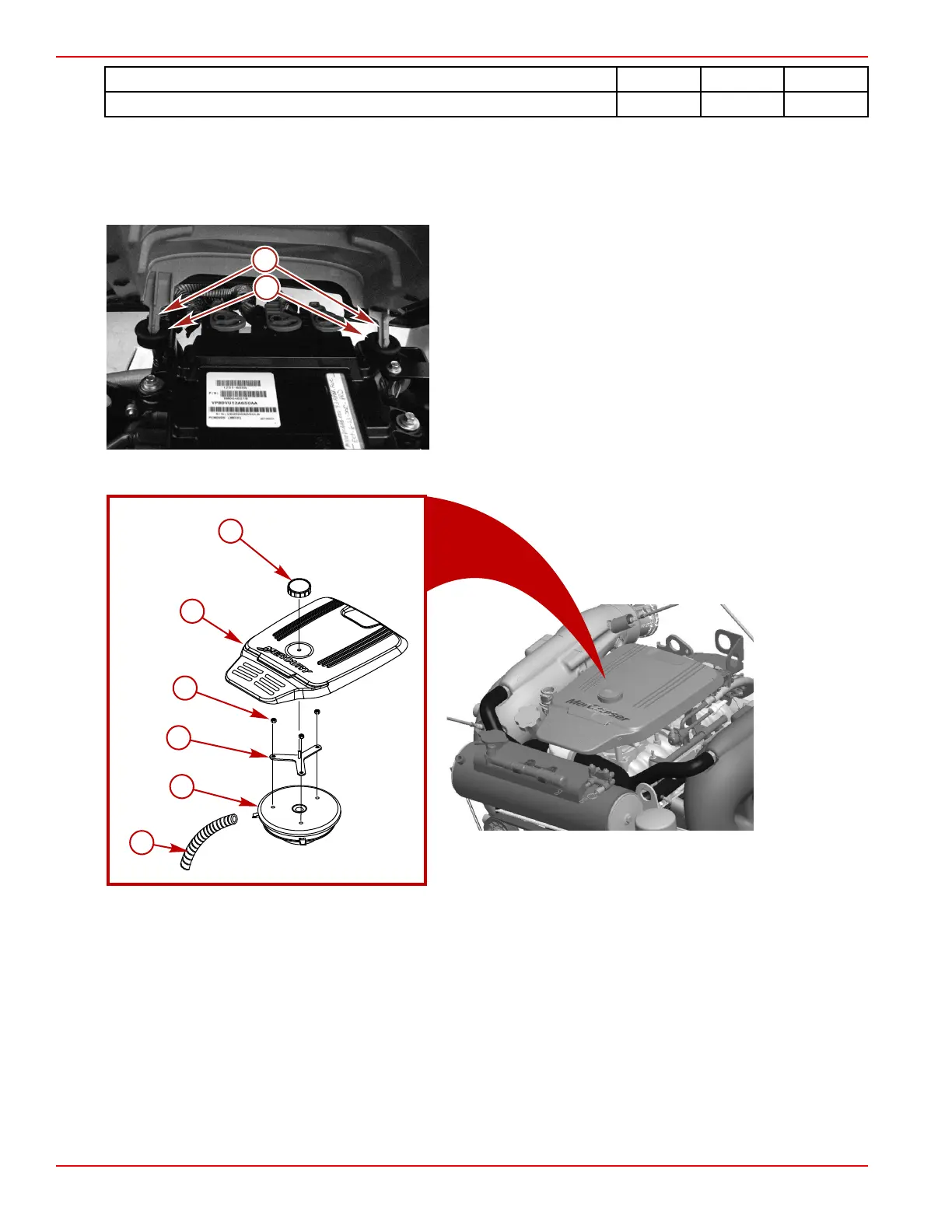

4.3 ECT engine cover—shown under the cover
a - Engine cover legs
b - Engine cover grommets
b.
5.0 ECT models: Position the cover over the cover mount bracket. Secure with the engine cover knob.
5.0 ECT engine cover
a - Engine cover knob
b - Engine cover
c - Nuts, flame arrestor
d - Cover mount bracket
e - Flame arrestor
f - Crankcase ventilation hose
Positive Crankcase Ventilation (PCV) Valve
The 4.3 ECT engine does not have a serviceable PCV valve.
