Section 1 - Getting to Know Your Power Package
Page 10 90-8M0113857 eng DECEMBER 2015

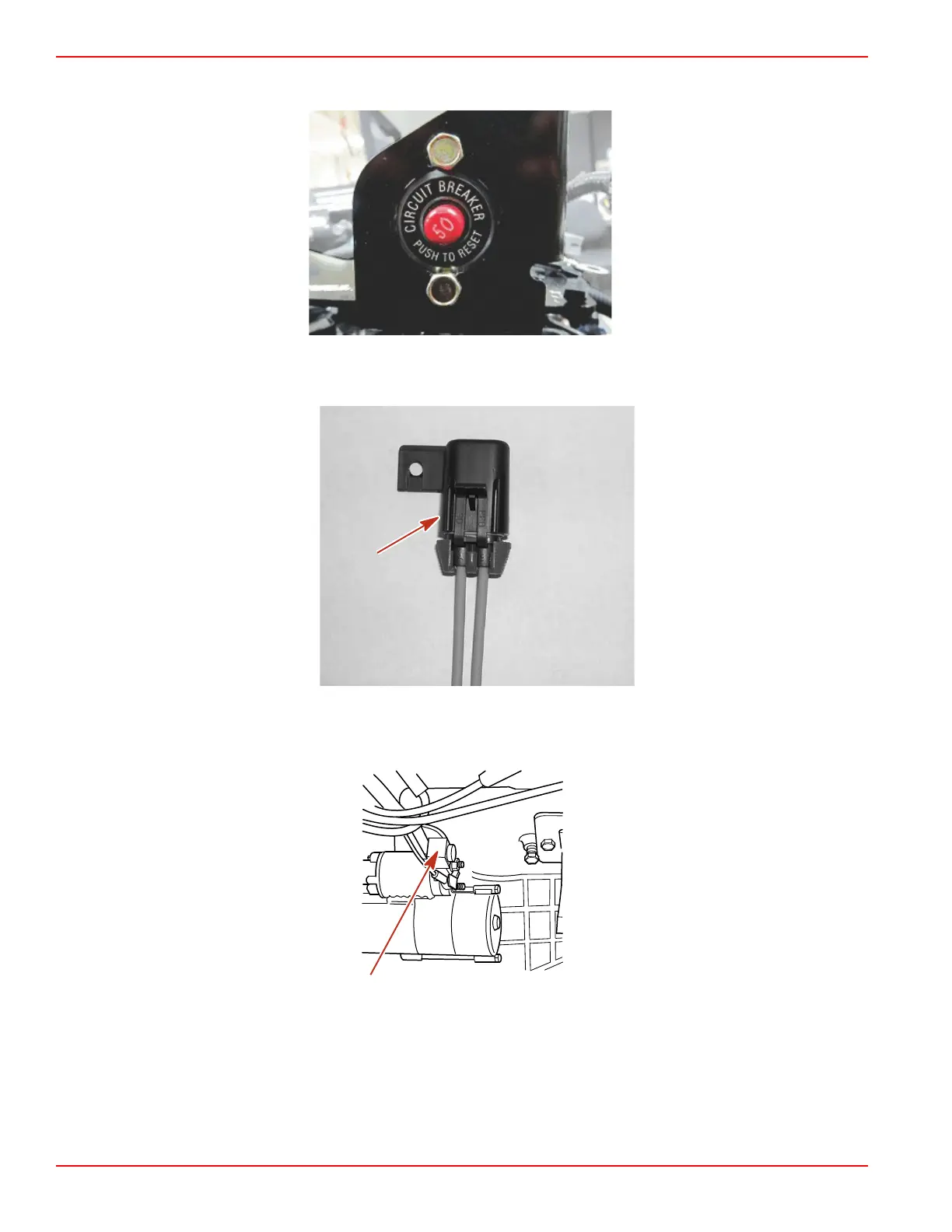

1. A circuit breaker protects the engine wiring harness and the instrumentation power lead. Reset the breaker by pushing the
red button.
Engine wiring harness and instrumentation circuit breaker
2. A 20‑amp fuse is located near the carburetor body. This fuse protects the fuel pump and ignition system circuits.
7524
3. A 90‑amp fuse, located on the large post of the starter solenoid, protects the engine wiring harness if an electrical overload
occurs.
mc74907-1
