Mercury 40 Jet User Manual

OUTBOARD INSTALLATION
108
5. Adjust the cable barrel so the center of the roller is lined up
with the alignment mark on the cam when the cable barrel is
placed in the barrel receptacle.
a
b
c
d

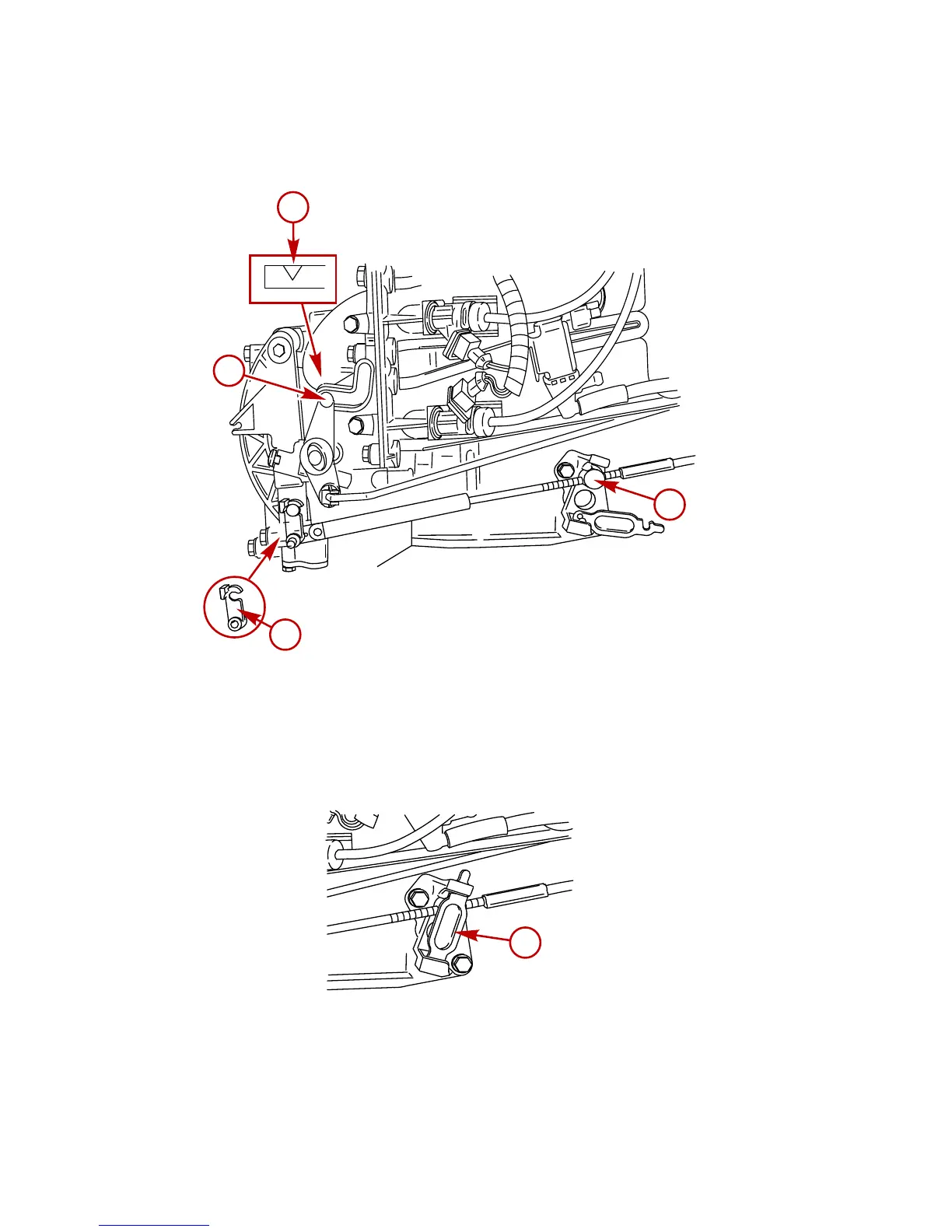

28699
a - Cable barrel
b - Alignment mark
c - Roller
d - Retainer
6. Place the cable barrel into the barrel receptacle.
7. Lock in barrel in place with the barrel latch.
28700
a
a - Barrel latch

Mercury 40 Jet Specifications

General

Cylinders	3
Starting	Electric
Steering	Remote
Shaft Length	20 in
Horsepower	40 HP
Alternator Output	226-watt
Warranty	3 years
