CYLINDER BLOCK AND CRANKCASE
90-857138R1 MAY 2000 Page 4B–19

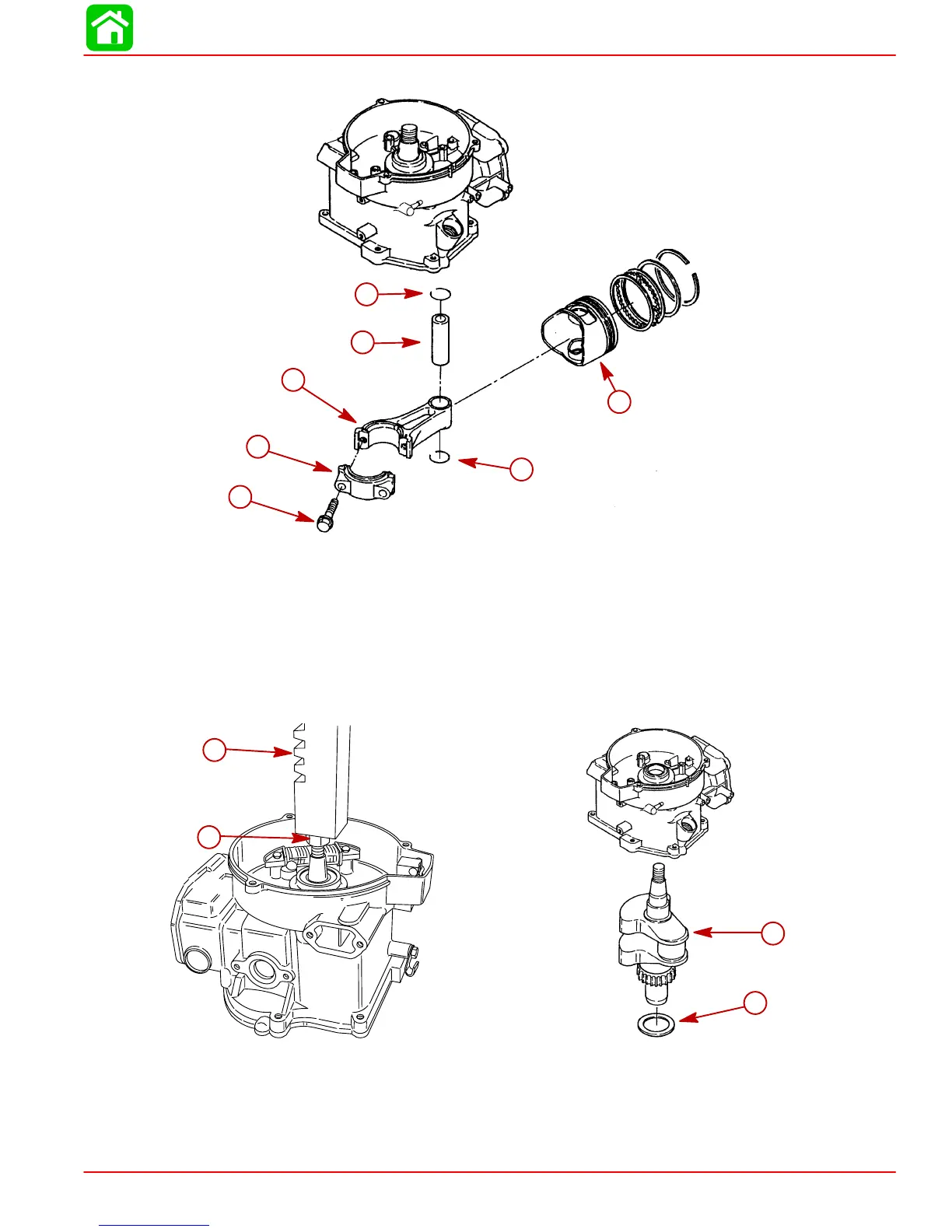

12. Remove piston assembly from the crankshaft.
a
b
c
d
e
f
e
a-Connecting Rod
b-Cap
c-Bolt (2)
d-Piston Pin
e-Clip (2)
f-Piston
13. Press the crankshaft out of the cylinder block.
a
c
d
b
a-Press
b-Flywheel Nut - Thread Onto End of Crankshaft
c-Crankshaft
d-Washer

Mercury 5 SERIES Specifications

General

Horsepower	5 hp
Cylinders	1
Starting	Manual
Full Throttle RPM Range	5000-6000
Fuel Induction System	Carburetor
Shaft Length	15"
Recommended Fuel	87 octane
