CYLINDER BLOCK AND CRANKCASE
90-857138R1 MAY 2000 Page 4B–37
17. Install the lifters at this time.
18. Reassemble the camshaft. Align the mark on the camshaft with the mark on the timing
gear.
110
4-Stroke Outboard Oil (92-828000A12)
a
b
c
110
CAM ID
4 (1999 & 2000)
5 (1999 & 2000)
6 (2000)
4/5/6 (2001)
4
5
6
6

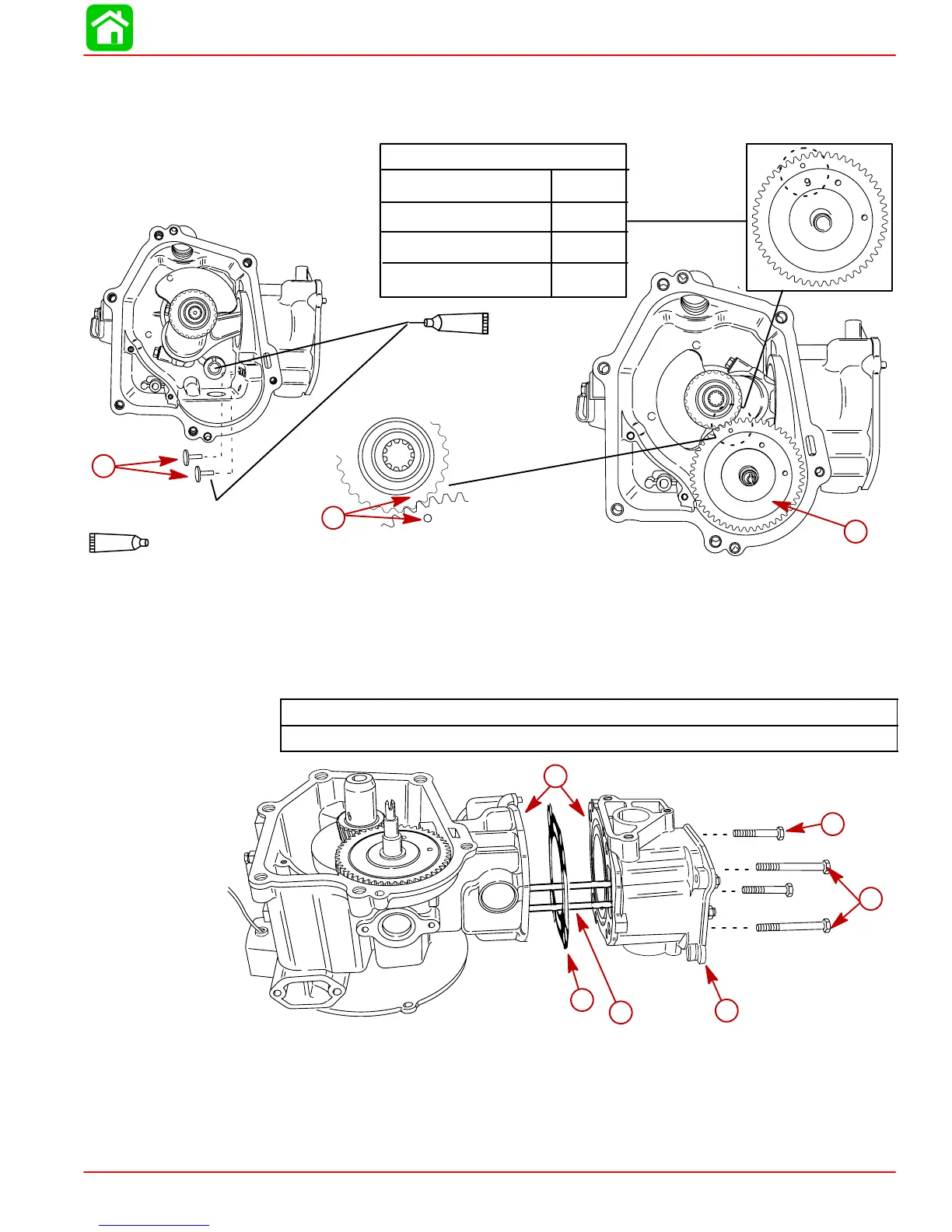

a-Lifters
b-Camshaft
c-Alignment Marks
19. Reinstall the cylinder head.
NOTE: Be sure cylinder head and cylinder block gasket surfaces are clean and free of oil.
Cylinder Head Bolt Torque
18 lb-ft (24.5 Nm)
a
d
b
c
e
f
a-Make Sure Gaskets Surfaces are Clean and Free of Oil
b-Cylinder Head
c-Push Rods (2)
d-Gasket
e-Bolt (2) M8 x 90 mm
f-Bolts (2) M8 x 60 mm
