GEAR HOUSING
90-857138R1 MAY 2000 Page 6-31

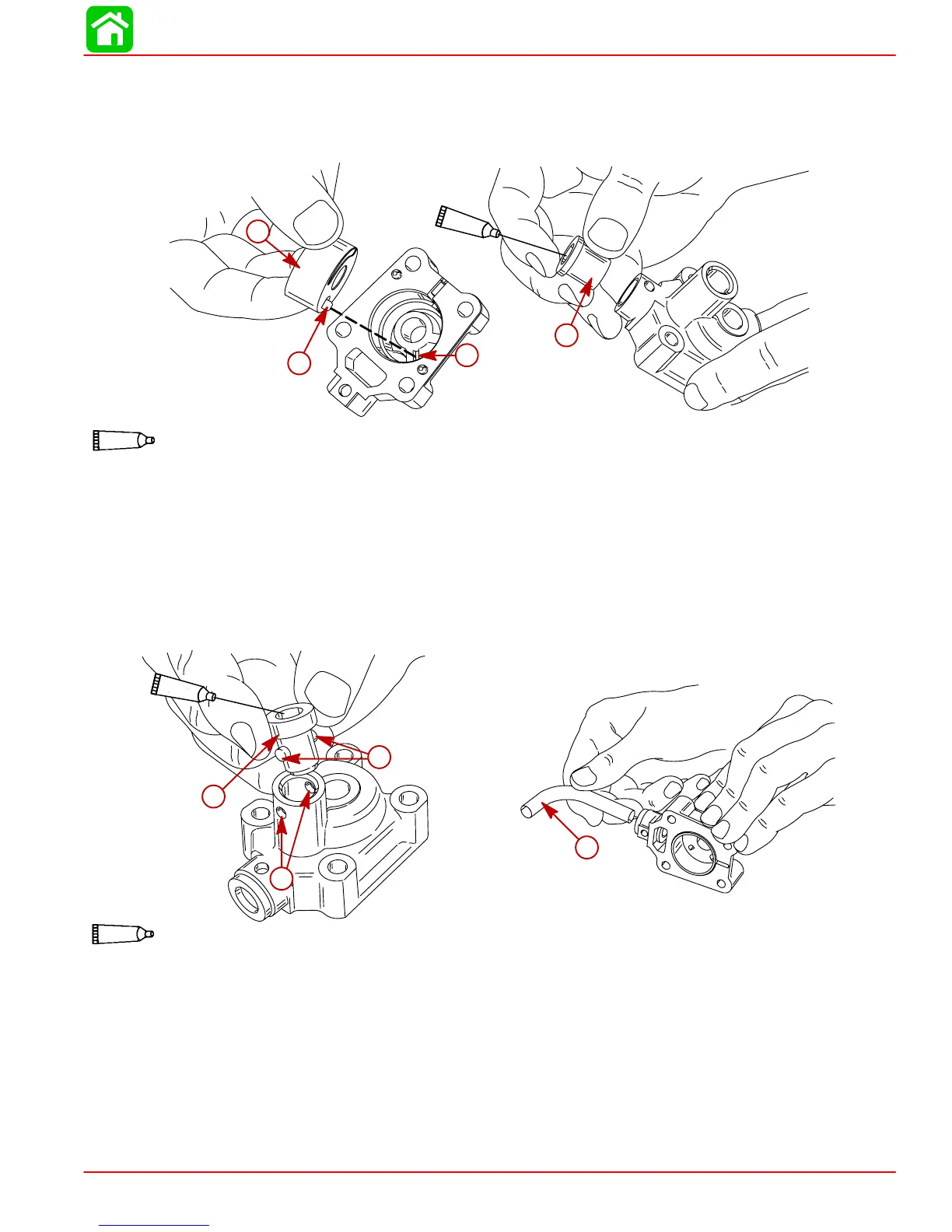

3. Install water pump insert into water pump housing making sure to position locating tab
of insert into slot of housing.
4. Install water pick-up tube seal. Lubricate I.D. of seal with 2-4-C w/Teflon Marine
Lubricant.
a
b
c
d
56412
56410
95
95
2-4-C With Teflon (92-825407A12)
a - Water Pump Insert
b - Locating Tab
c - Slot
d - Pick-up Tube Seal
5. Install water tube seal into base so rubber tabs insert into holes. Lubricate I.D. of seal
with 2-4-C Marine Lubricant.
6. Install water pickup tube into seal as shown.
a
b
c
d
56409
56453
95
2-4-C With Teflon (92-825407A12)
a - Water Tube Seal
b - Rubber Tabs
c - Holes
d - Water Pick-up Tube
