MANUAL STARTER
Page 8-4 90-857138R1 MAY 2000
Removal

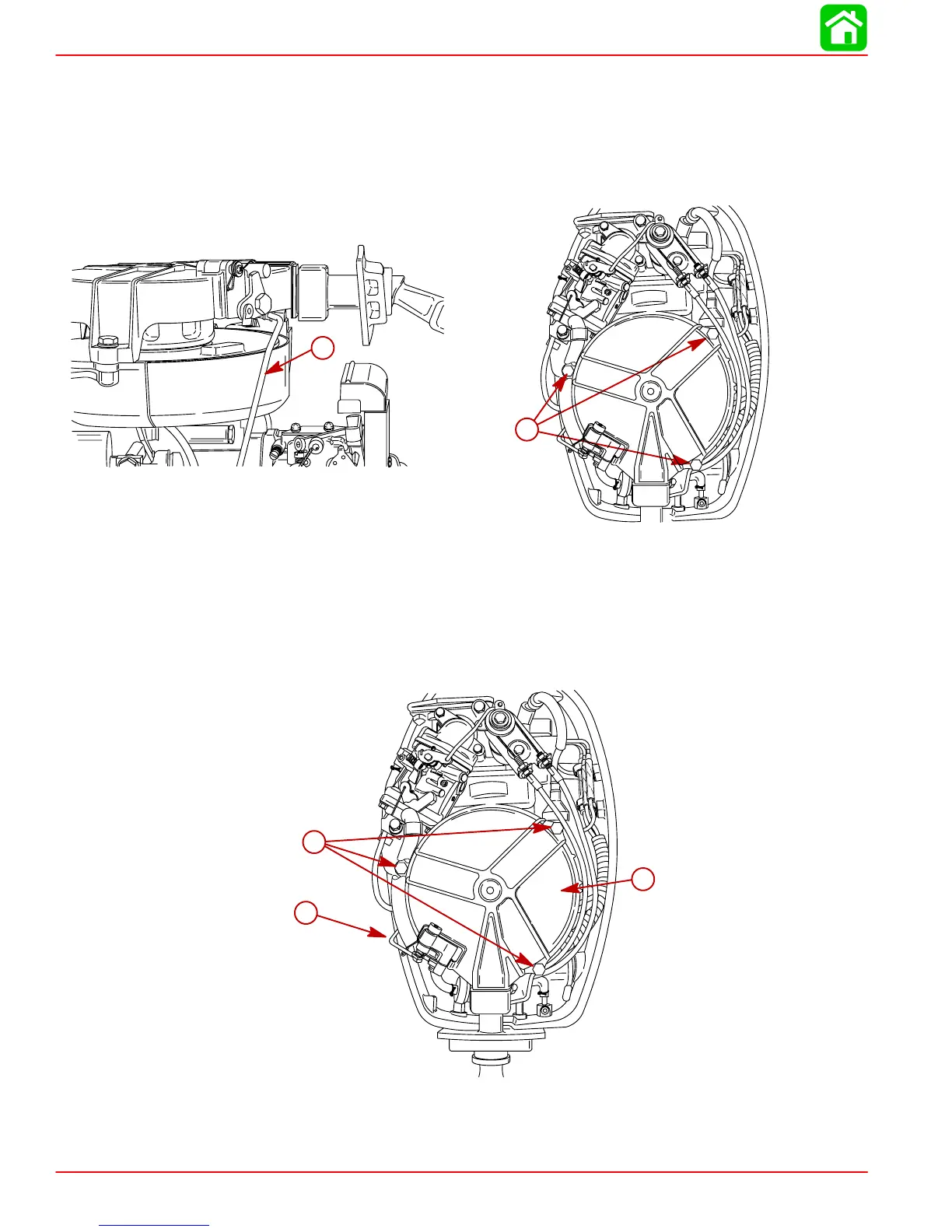

1. Remove top cowl.
2. Disconnect interlock link rod.
3. Remove three bolts and lift manual starter assembly.
a
56489
57229
b
a- Link Rod
b- Bolts (3)
Installation
1. Install rewind assembly, using bolts and lockwashers. Torque bolts to 70 lb-in. (8 Nm).
Reconnect interlock link rod.
57229
a
b
c
a- Rewind Assembly
b- Bolts/Lockwashers
c- Link Rod
