MANUAL STARTER
Page 8-6 90-857138R1 MAY 2000

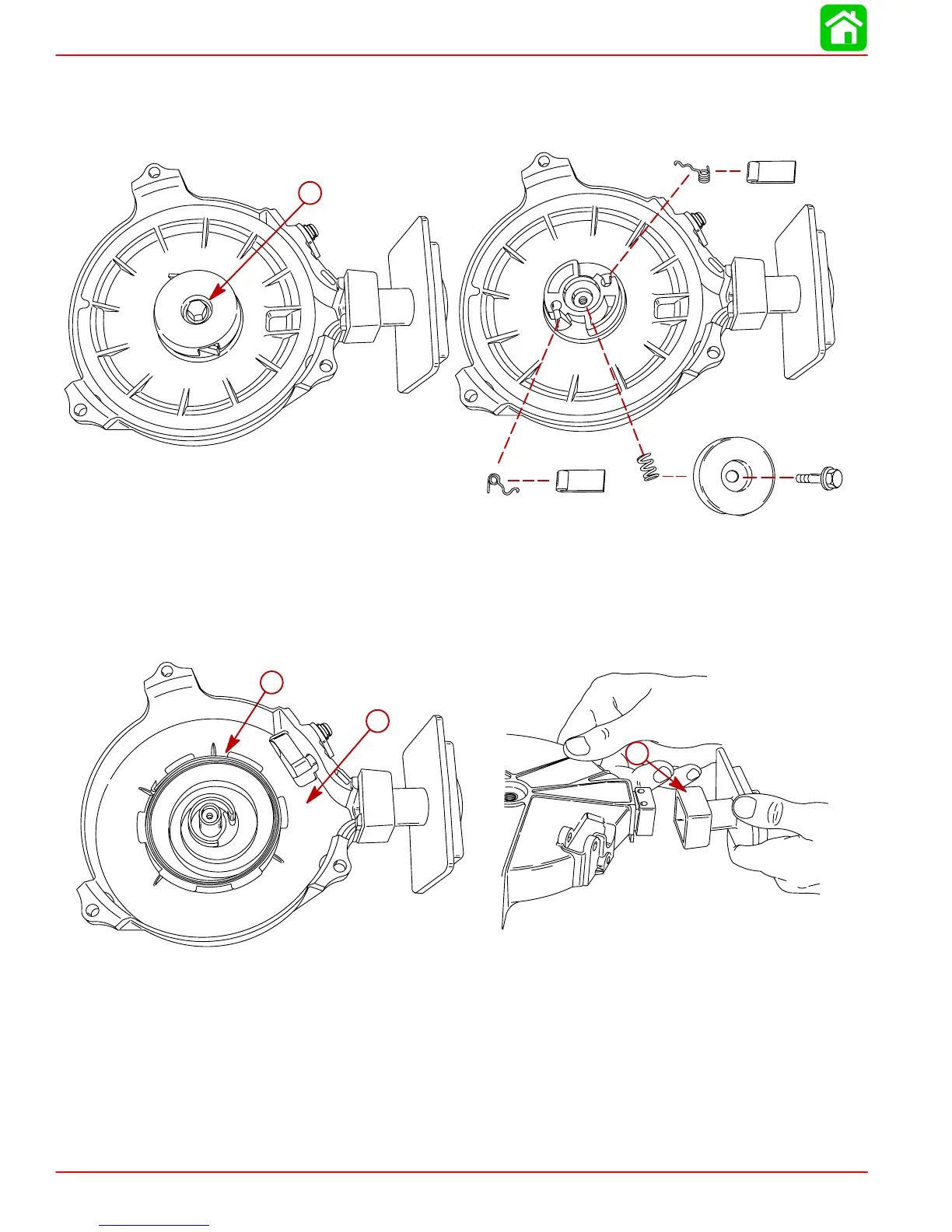

5. Remove bolt.
6. Lift starter sheave assembly from housing.
7. Disassemble components as shown.
57225
a
57224
a- Bolt
8. Lift spring housing and coiled spring out of starter housing.
9. If necessary, remove rope guide.
a
c
57226
b
56469
a- Spring Housing and Coiled Spring
b- Starter Housing
c- Rope Guide
