Mercury 5 SERIES User Manual

CARBURETOR
90-857138R1 MAY 2000 Page 3B-11

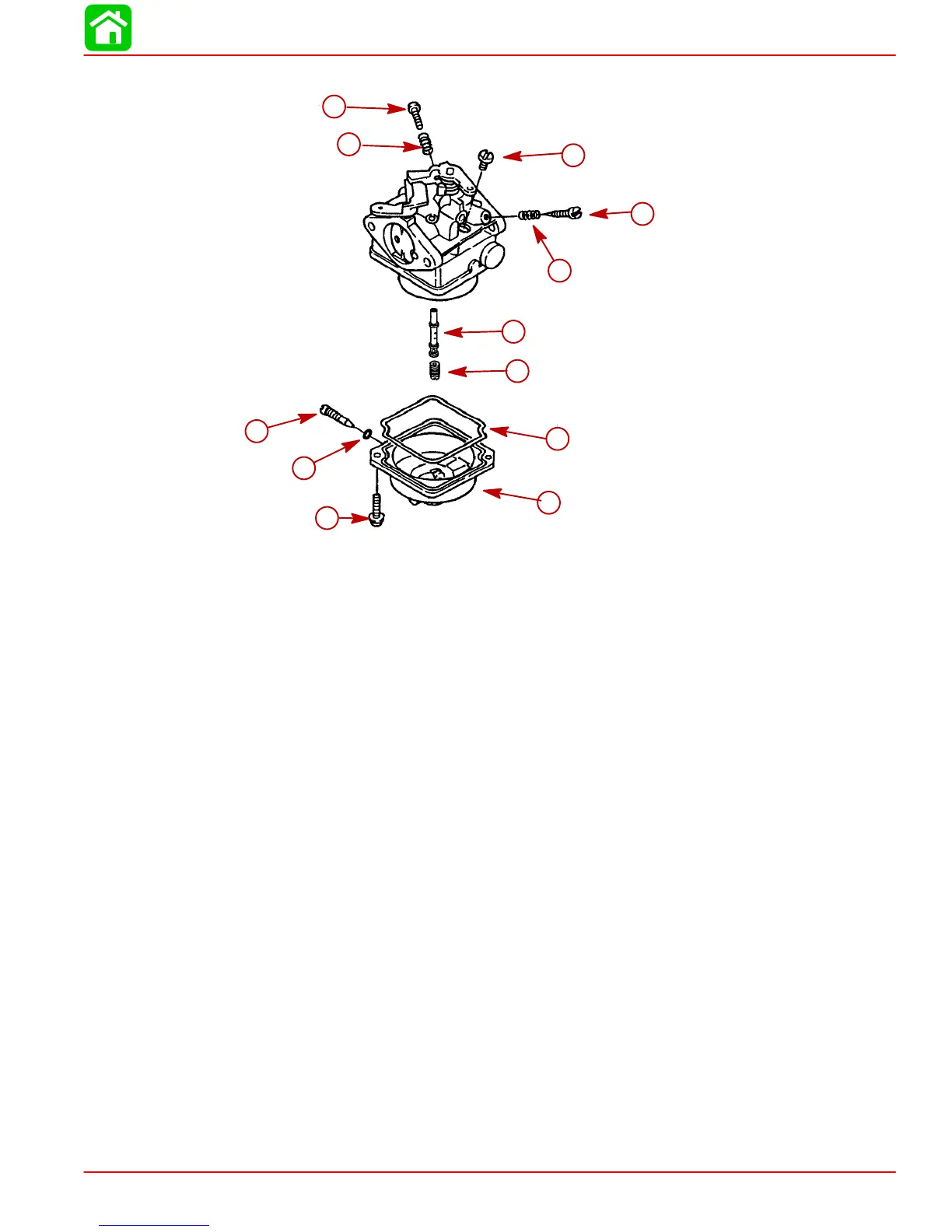

4. Reassemble the carburetor.
a
c
e
f
i
g
h
j
k
l
d
b
a-Drain Screw-M5 x 6 mm
b-Gasket-Drain Screw
c-Screws (4) M4 x 12 mm
d-Float Bowl
e-Gasket -Float Bowl
f-Main Jet
g-Main Nozzle
h-Idle Screw
i-Spring
j-Pilot Jet
k-Pilot Screw
l-Spring

Mercury 5 SERIES Specifications

General

Horsepower	5 hp
Cylinders	1
Starting	Manual
Full Throttle RPM Range	5000-6000
Fuel Induction System	Carburetor
Shaft Length	15"
Recommended Fuel	87 octane
