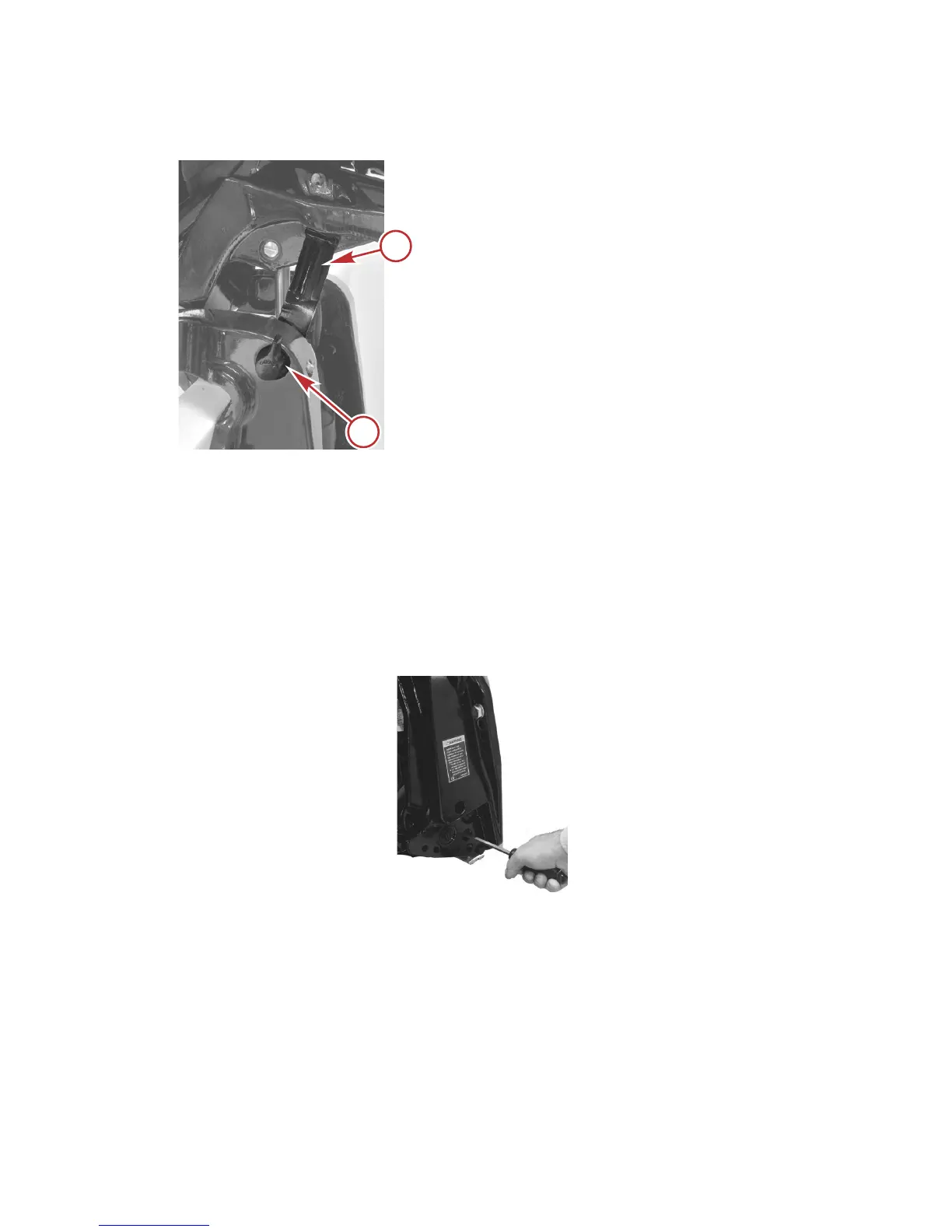

3. Disengage the tilt support lever by raising the outboard off the support
lever and rotating the lever down. Lower the outboard.
a - Tilt support lever
b - Knob
MANUAL TILTING
If the outboard cannot be tilted using the power trim/tilt switch, the outboard can
be manually tilted.
NOTE: The manual tilt release valve must be tightened before operating the
outboard to prevent the outboard from tilting up during reverse operation.
Turn out the manual tilt release valve three turns counterclockwise. This allows
manual tilting of the outboard. Tilt the outboard to the desired position and
tighten the manual tilt release valve.
54177
a
b
54169
FEATURES AND CONTROLS
eng 53

Mercury 80 Specifications

General

Steering	Remote
Shaft Length	20 in (508 mm)
Gear Ratio	2.07:1
Horsepower	80 hp
Full Throttle RPM Range	5000-6000 RPM
Bore x Stroke	3.15 x 3.15 in (80 x 80 mm)
