Mercury 80 User Manual

Gear Shifting
IMPORTANT: Observe the following:
•
Never shift the outboard into gear unless the engine speed is at idle.
•
Do not shift the outboard into reverse when the engine is not
running.

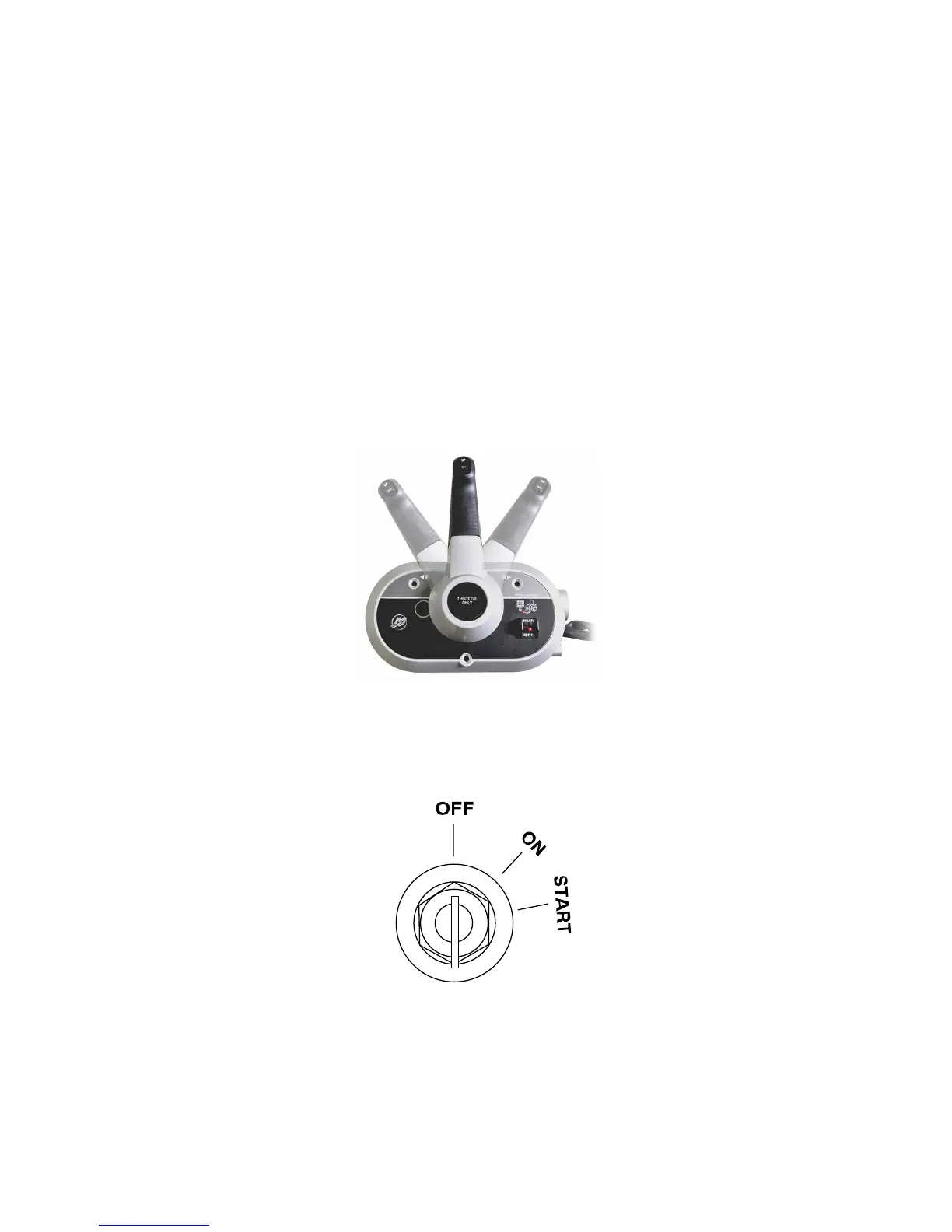

• Your outboard has three gear shift positions to provide operation: forward
(F), neutral (N), and reverse (R).
• When shifting, always stop at the neutral position and allow the engine
speed to return to idle.
• Always shift the outboard into gear with a quick motion.
• After shifting the outboard into gear, advance the lever further to increase
speed.
N
RF
58239
Stopping the Engine
Reduce the engine speed and shift the outboard to neutral position. Turn the
ignition key to "OFF" position.
26843
OPERATION
eng 61

Mercury 80 Specifications

General

Steering	Remote
Shaft Length	20 in (508 mm)
Gear Ratio	2.07:1
Horsepower	80 hp
Full Throttle RPM Range	5000-6000 RPM
Bore x Stroke	3.15 x 3.15 in (80 x 80 mm)
