REMOTE BOAT HARNESS

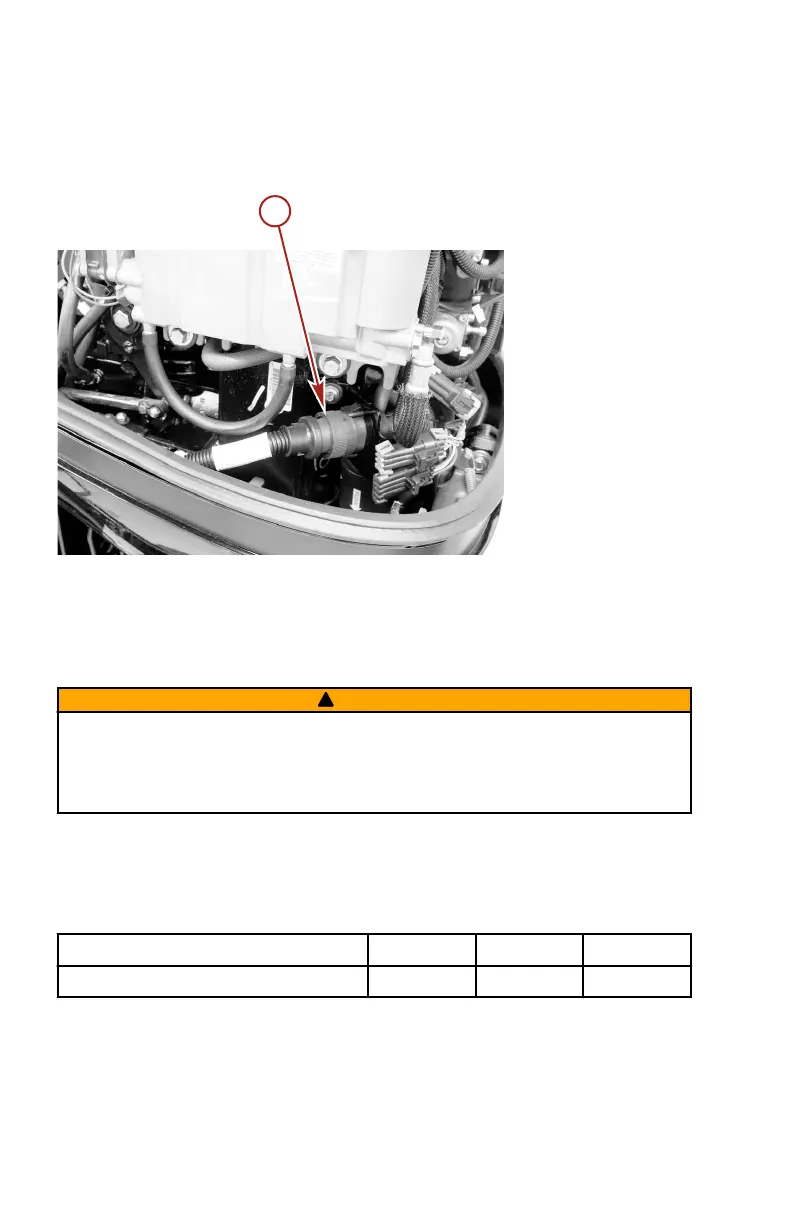

Route the remote boat harness through the grommet. Connect the remote
harness to the 14 pin connector on the engine harness.
a - Remote 14 pin boat harness
BATTERY INFORMATION (ALL BATTERIES INCLUDING DTS)
!
WARNING
Failure to properly secure the battery leads can result in a loss of power to
the Digital Throttle and Shift (DTS) system, leading to serious injury or death
due to loss of boat control. Secure the battery leads to the battery posts with
hex nuts to avoid loose connections.
• Do not use deep cycle batteries. The engine must use a marine starting
battery with 1000 MCA, 800 CCA, or 180 Ah rating.
• When connecting the engine battery, use hex nuts to secure the battery
leads to the battery posts. Tighten the nuts to the specified torque.
Description
Nm lb‑in. lb‑ft
Hex nuts 13.5 120 –
OUTBOARD INSTALLATION
136 eng
