Maintenance
90-860174050 JUNE 2005 Page 53

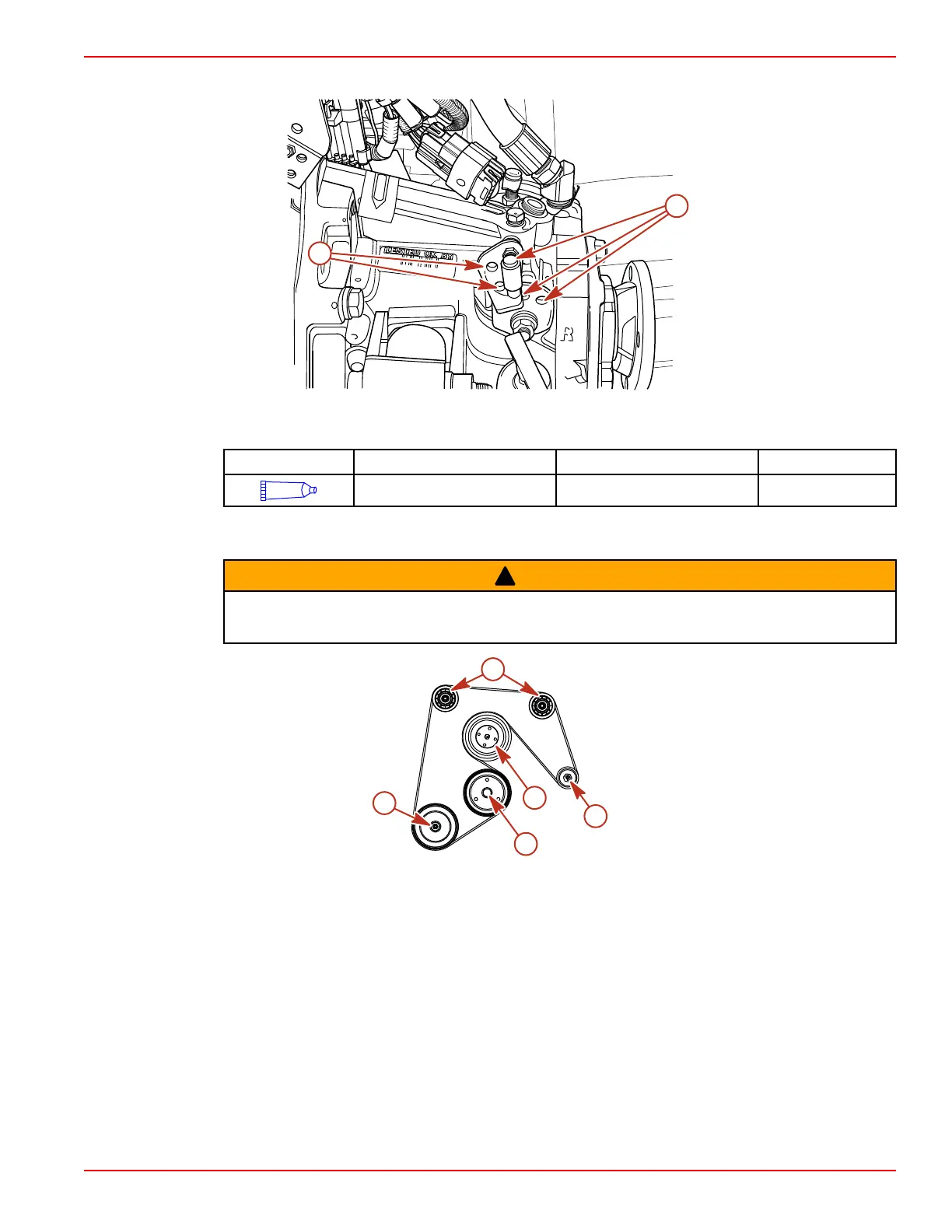

3. Lubricate the poppet ball and the holes in the shift lever.
OUTPUT FLA
ROTATION
USE L. H. PROPE
a
a
6219
a - Poppet ball locations
Tube Ref No. Description Where Used Part No.
95
2-4-C with Teflon Poppet ball and holes 92-802859A1
Serpentine Drive Belt
!
WARNING
Avoid possible serious injury. Make sure engine is shut off and ignition key is removed
before inspecting belt.
b
a
c
d
e
6089
a - Idler pulley
b - Circulating pump pulley
c - Crankshaft pulley
d - Alternator pulley
e - Seawater pump pulley
Checking
1. Inspect the drive belt for proper tension and for the following:
• Excessive wear
• Cracks
NOTE: Minor, transverse cracks (across the belt width) may be acceptable. Longitudinal
cracks (in the direction of belt length) that join transverse cracks are NOT acceptable.
• Fraying
