Section 2 - Getting to Know Your Power Package
Page 28 90-8M0061999 eng MAY 2012

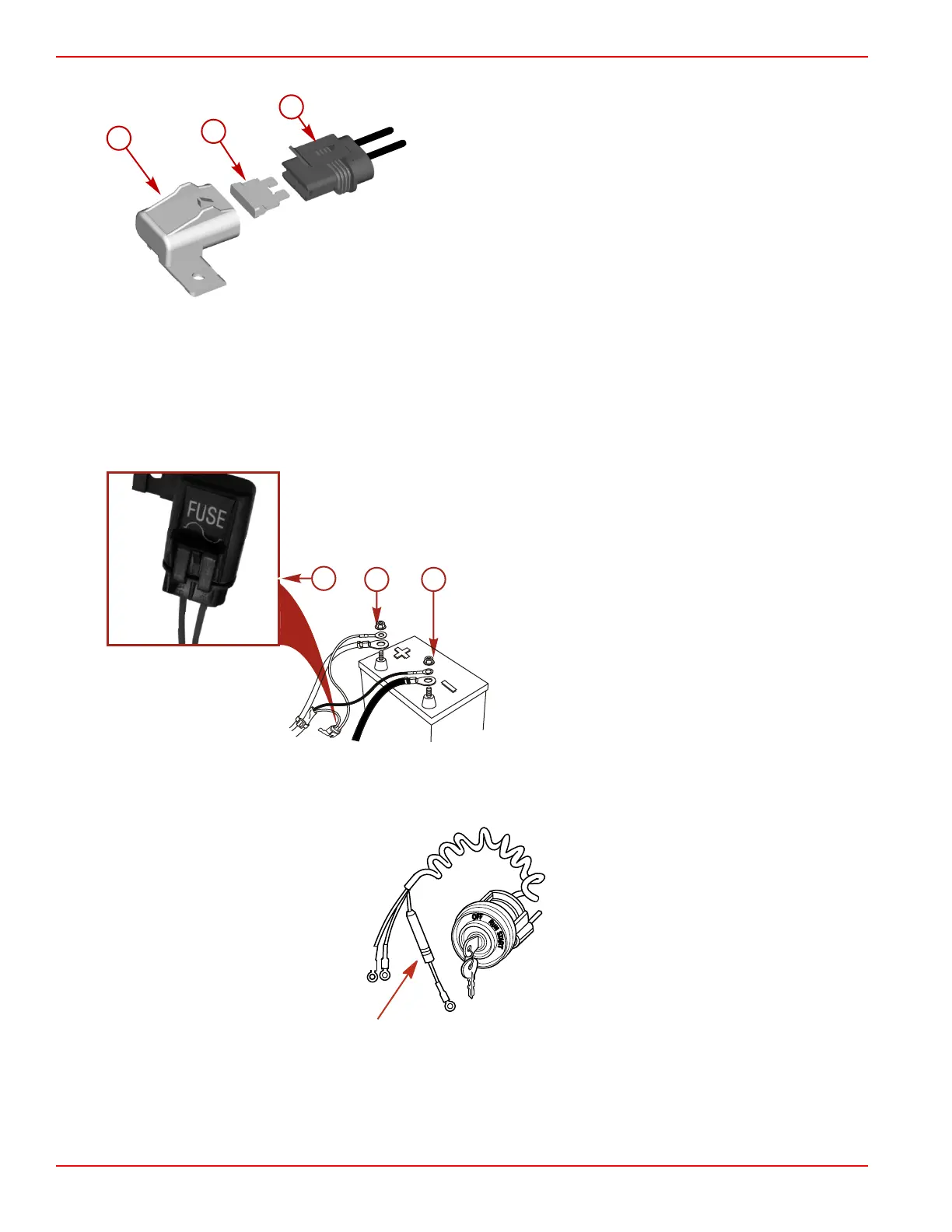

A 15‑amp accessory fuse protects the accessory circuits. This fuse is located on the rear of the engine.
a - Fuse cover
b - 15‑amp fuse
c - Accessory harness
The emissions control system is protected by a 5‑amp fuse located in the power harness.
a - 5‑amp fuse
b - Positive battery terminal (Harness lead with fuse)
c - Negative battery terminal
A 20‑amp fuse may be located in the ignition switch "I" terminal lead to protect the electrical system. Check for an open fuse if
the engine does not start, and the circuit breaker is not tripped.
mc70525-1
