WIRING AND BATTERY INFORMATION
18 eng

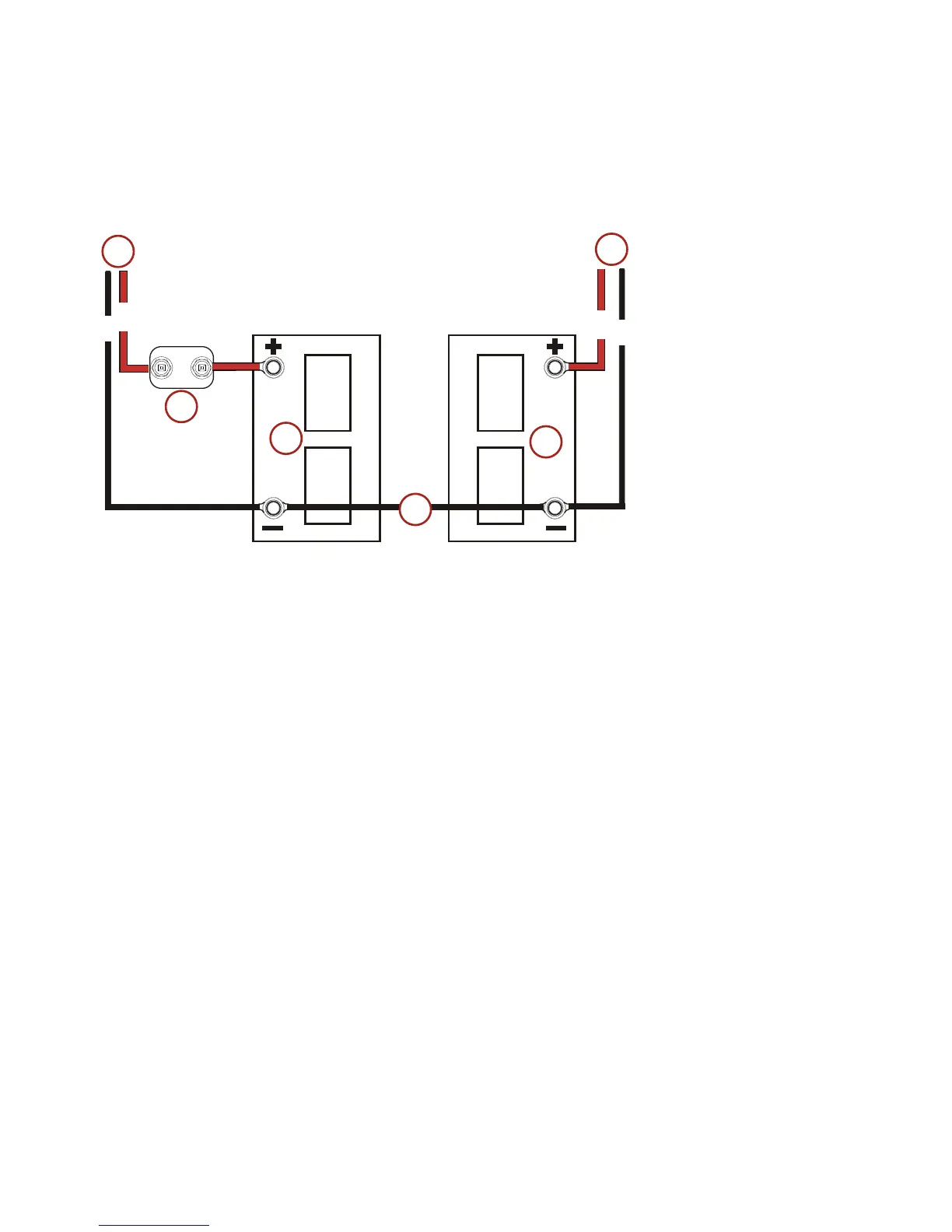

NOTE: Vessels with multiple batteries, must have a common ground
bonding circuit. Not establishing a common ground between the vessel
batteries, may cause severe corrosion, electrolysis, or an electrical
shock.
a - Power cables to trolling motor
b - 50 amp manual reset circuit breaker
c - Trolling motor battery
d - Engine starting battery
e - Power cables to engine
f - Common ground bond
12 VOLT PARALLEL CIRCUIT BATTERY CONNECTION
1. Install a 50 amp manual reset circuit breaker in line with the trolling
motor power cable positive lead and the battery positive (+)
terminal.
2. Connect a jumper cable between both of the trolling motor battery
positive (+) terminals.
3. Connect a jumper cable between both of the trolling motor battery
negative (–) terminals.
4. Connect the black trolling motor power cable negative lead to the
battery negative (–) terminal.
To Next Page
