Mercury MotorGuide VariMAX User Manual

PRODUCT OVERVIEW AND ASSEMBLY
eng 9

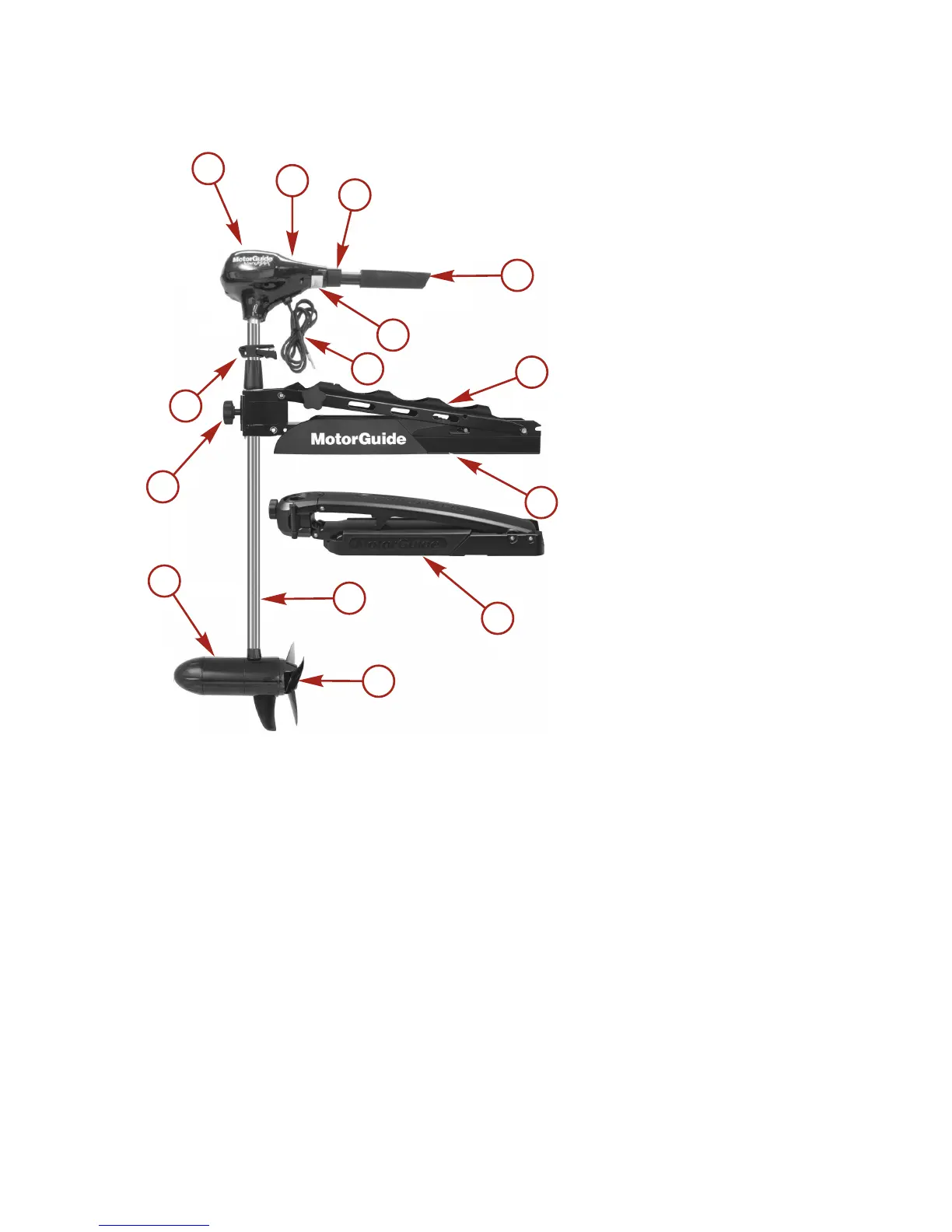

VARIMAX BOW MOUNT
a - Top housing
b - BluVis function display
c - Cam lock
d - Extendable speed
control handle
e - Serial number
f - Battery cables
g - Gator 20.8 breakaway
h - Decket
i - Gator Flex 360
j - Column
k - Propeller
l - Lower unit
m -Steering tension collar
n - Depth adjustment
collar
Attaching the Handle
NOTE: For proper installation, assemble the trolling motor on a flat, level
surface.
1. Ensure the battery cables are disconnected from the power source.
i
h
a
g
l
k
j
e
d
c
b
f
h
i
m
n
